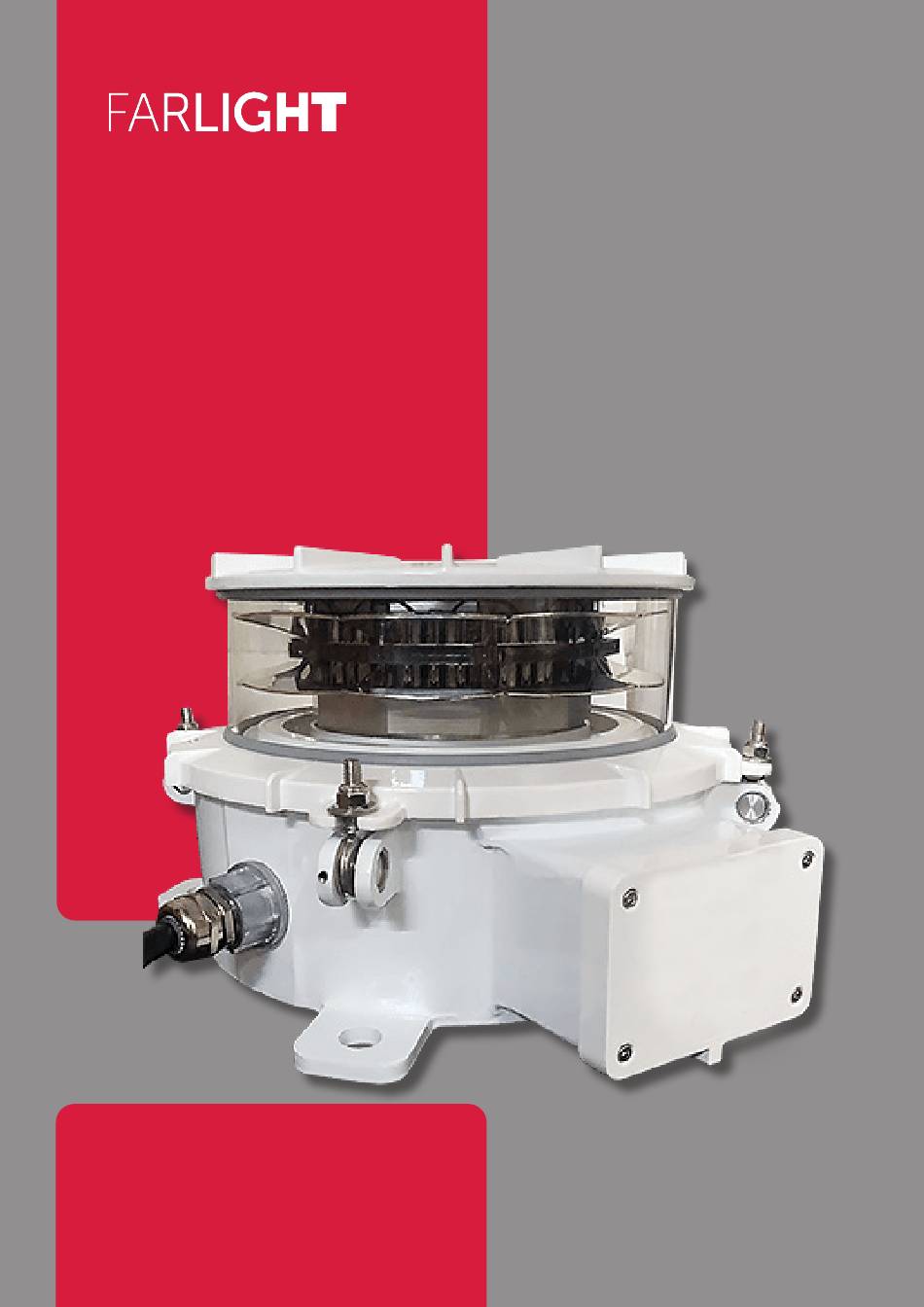

- Page 1 INSTALLATION AND MAINTENANCE MANUAL Flashing Red Obstruction Light L-864 1800 327 544 info@farlight.com.au Farlight Australasia Pty Ltd www.farlight.com.au PO Box 822 Williamstown Victoria Australia 3016...
-
Page 2: Table Of Contents
FARLIGHT L-864 CONTENTS Notices and Warnings Introduction Brief Overview Light Specifications Dimensions and Weight Operating Specifications Identifying the model Installation and Maintenance Installation Procedure Installation Reminders Maintenance Diagrams... -
Page 3: Notices And Warnings
FARLIGHT L-864 NOTICES AND WARNINGS This manual contains important information regarding the safety, operating and maintenance of this product. Before using the product, read and understand all cautions, warnings, instructions and product labels. Failure to do so could result in injury and/or void the warranty. -
Page 4: Introduction
The Farlight L864 (AC or DC) obstruction light provides an LED-based solution to the FAA style of flashing red obstruction lights. The Farlight L864 (AC or DC) obstruction light is a self-contained unit that requires no maintenance. Please contact Farlight Australasia before attempting to open or repair the unit. -
Page 5: Brief Overview
In no event will Farlight Australasia be liable for special, indirect, incidental, or consequential damages, regardless of the form of action, whether in contract, strict liability, or in tort, including negligence, nor for lost profits. Nor shall the liability of Farlight Australasia for any claims or damage arising out of, or connected with, this agreement or the manufacture, sale, delivery, use, maintenance, repair or modification of the products or supply of any replacement parts thereof, exceed the purchase price of the products. This limitation of liability shall apply to any liability for default under or in connection with the products, the parts, use, performance, or services delivered hereunder whether based on warranty, failure of or delay in delivery, or otherwise. -
Page 6: Light Specifications
FARLIGHT L-864 LIGHT SPECIFICATIONS Dimensions and Weight Diameter: 292mm Height: 222mm Weight: 10kg... -
Page 7: Operating Specifications
FARLIGHT L-864 OPERATING SPECIFICATIONS Type Humidity L-864 flashing red obstruction light Up to 95% relative humidity with LED light source Input Voltages Wind 100-256V AC or 24-48DC Wind speeds up to 240KMH Power Consumption Wind Blown Rain 10 watts (approximate average) -
Page 8: Identifying The Model
FARLIGHT L-864 IDENTIFYING THE MODEL AC = 240V AC DC = 24 - 48V DC F = Flashing (30FPM Standard) S = Steady GPS = Integrated GPS & Photocell Installed... -
Page 9: Installation And Maintenance
4 mounting holes that align with most tower pedestals. The light should be installed level to maintain light output. Farlight suggests that lightning rods be installed near the light. The lightning rods should extend a minimum of three feet about... -
Page 10: Installation Reminders
Installation reminder Although factory tested a bench test is recommended prior to installation in order to ensure that is has not been damaged in transit. Maintenance No regularly scheduled maintenance is required for the unit. Farlight warranties the light output of the L864 (AC or DC) to meet or exceed requirements for a five year period. -
Page 11: Diagrams
FARLIGHT L-864 DIAGRAMS 240VAC 24-48DC... - Page 12 FARLIGHT L-864 BASE...
- Page 13 FARLIGHT L-864 CHANGING MODES - STEADY OR FLASHING In order to change the mode of operation, you must open the housing and access the slide switch on the micro-controller. This product can be damaged by electrostatic discharge (ESD). Use a conductive wrist strap attached to a good earth ground when handling.
