Summary of Contents for Adam Henley X-Door Rustic TV Console

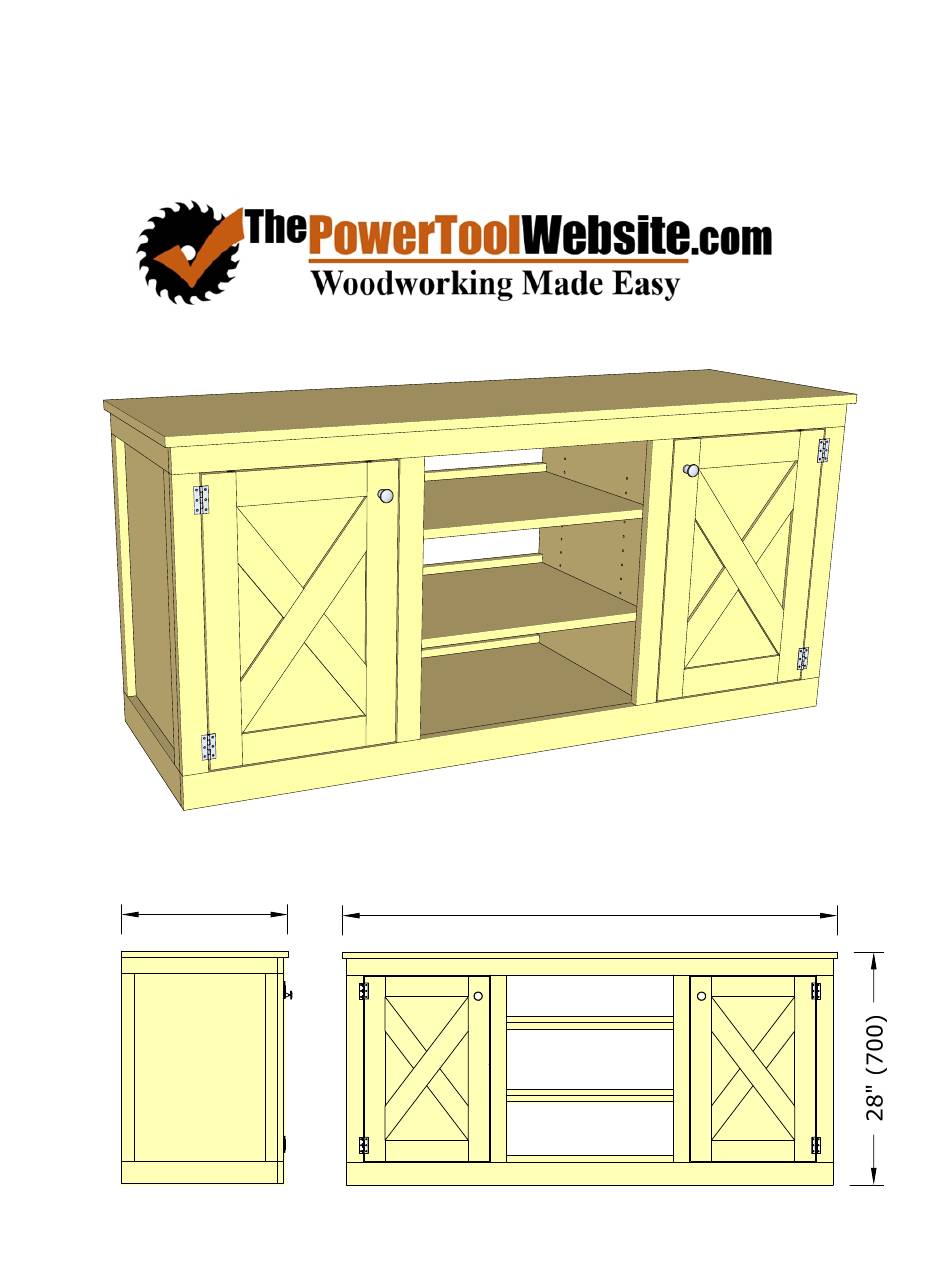

- Page 1 X-Door Rustic TV Console by Adam Henley - ThePowerToolWebsite.com 20" (500) 59-1/2" (1488)
- Page 2 Reference 1 X-Door Rustic TV Console Tools & Jigs Hardware & Material Table Saw [1] full sheet 3/4" (19) plywood � � Track saw or Circular saw [1] half sheet 3/4" (19) plywood � � (for breaking down ply) [1] half sheet 1/4" (6) plywood �...
- Page 3 Cutting Diagrams 1 X-Door Rustic TV Console backstop backstops...
- Page 4 Cutting Diagrams 2 X-Door Rustic TV Console 3/4" (19) 3/4" (19)
- Page 5 Cutting Diagrams 3 X-Door Rustic TV Console 1/4" (6)
-
Page 6: Exploded Views
Exploded Views X-Door Rustic TV Console C13 (X4) - Page 7 Exploded Door X-Door Rustic TV Console...
- Page 8 Top Detail X-Door Rustic TV Console Edge glue and clamp the Top Boards (C13) together as shown.
- Page 9 Upright Details X-Door Rustic TV Console 3/4"(19) 2"(50) S5 (x2) 3/4"(19) 27-1/4" (681) 18" (450) 2"(50) Pocket hole shelf pin hole locations are approximate. S6 (x2) 18" (450)
-
Page 10: Frame Assembly
Frame Assembly X-Door Rustic TV Console 16" (400) 22" (550) View from left View from right... - Page 11 Bottom & Top X-Door Rustic TV Console 1-1/4" (31) overhang...
- Page 12 Side Trim X-Door Rustic TV Console FRONT Flush BACK Proud by 3/4" (19)
- Page 13 Back Trim & Face Frame X-Door Rustic TV Console BACK FRONT...
- Page 14 Shelves X-Door Rustic TV Console...
- Page 15 Backing X-Door Rustic TV Console...
- Page 16 Door Rails & Stiles X-Door Rustic TV Console 2-1/2" (63) 1/2" (13) 11" (275) 1/4" (6) 1/4" (6) 1/2" (13) 2-1/2" (63) 22-1/4" (556) 3/4" (19) 10" (250) 1/2" (13) 11" (275)
-
Page 17: Door Assembly
Door Assembly X-Door Rustic TV Console... - Page 18 Door Assembly 2 X-Door Rustic TV Console 15" (375) 10" (250)
- Page 19 Final Hardware X-Door Rustic TV Console Magnetic door stop Small wooden door stop (3/4" x 3/4" x 2" block) (19x19x50)
- Page 20 Assembly Instructions 1 X-Door Rustic TV Console Pre Work Assemble the Top See page 'Top Details'. If you're edge-gluing boards and building a regular panel, you can optionally reinforce it using biscuits, dowels, or pocket hole joinery (in addition to edge-gluing each piece).
- Page 21 Assembly Instructions 2 X-Door Rustic TV Console Step 6 - Face Frame Glue and brad the Top & Bottom Face Frame Rails (C7 & C8) the the stretchers as shown. Glue and pocket screw the Face Frame Stiles (C9) to the uprights as shown.
