Summary of Contents for Telepath Coach

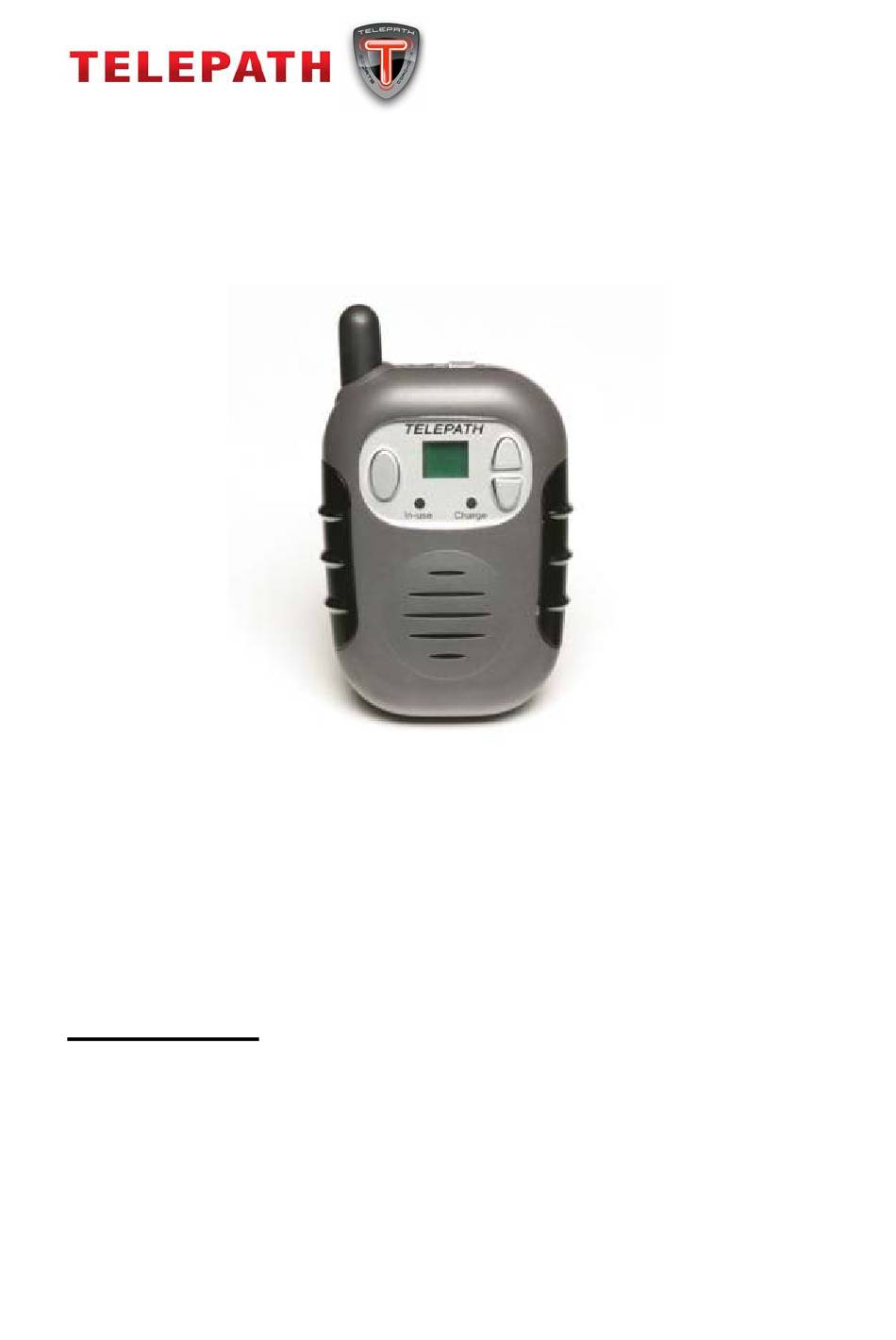

- Page 1 *Patent Pending User Manual Please read all the information carefully before operating this system and keep it in a safe place for future reference.
-
Page 2: Table Of Contents
Parts Location and Function ….………………………………………………………….. The Battery ….……………………………………………………………………………... LCD Display ………………………………………………………………………………... Operation …………………………………………………………………………………… Turning the Unit On and Off ................…… Transmitting VOX Sensitivity Level Adjustment for Coach Unit .………….…..………… Receiving Volume Adjustment for Player Unit………………………………………….. Channel Selection ………..………………………….………………………...………… Key Lock Setting ..………………………………….….………….……...……………….. -
Page 3: Introduction
Please read the manual before using this system and we hope you enjoy your TELEPATH system. IMPORTANT SAFETY INFORMATION When using your Coach / Player product, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to people, including the followings: 1. -
Page 4: Special Features
SPECIAL FEATURES Coach Unit: △ VOX (Voice Active Transmitting) sensitivity level adjustment. △ External PTT (Wand) design. △ Both internal and external microphones available. △ Battery low indication. △ Low power consumption. △ Working channel memory design. Player Unit: △ Volume level selectable design. -
Page 5: Parts Location And Function
PARTS LOCATION AND FUNCTION Coach Unit 1. Antenna 2. LCD Display 3. Channel / Volume Function Key 4. In-use Indicator 5. Charging Indicator 6. Charging Port 7. Power Switch 8. Up Key 9. Down key 10. Push to Talk Button 11. -
Page 6: The Battery
7. Power Switch 8. Up Key 9. Down Key 10. Speaker THE BATTERY The system comes with a lithium rechargeable battery and charging adapter. It is important to fully charge the battery before initial use. Keep the battery charged while not in use to maximize working time. Installing the Battery Insert top of battery with contacts in upper left corner into opening on the back of the unit. -
Page 7: Lcd Display
Coach Unit: The battery capacity is longest when used with the Push to Talk Wand (approx. 4 hrs). Using the Voice Activated Transmitting the capacity is approx. 2.5 hrs. Player Unit: The battery capacity is approx. 4 hrs. LCD DISPLAY 1. -
Page 8: Receiving Volume Adjustment For Player Unit
To release key lock function, press Function key and keep pressing till key lock mark disappears. 6、Transmitting for Coach Unit a. The coach unit is designed with VOX (Voice Activated Transmitting) function, which will automatically turn on by connecting the headset directly to the transmitter. -
Page 9: Receiving For Player Unit
The active gear is machine washable in warm water and tumble dry. Note: remove electronics before washing. Coach Unit: 2 straps are provided enabling it to be worn on the arm or around the waist. -
Page 10: Statement
STATEMENT THE FCC WANTS YOU TO KNOW This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
