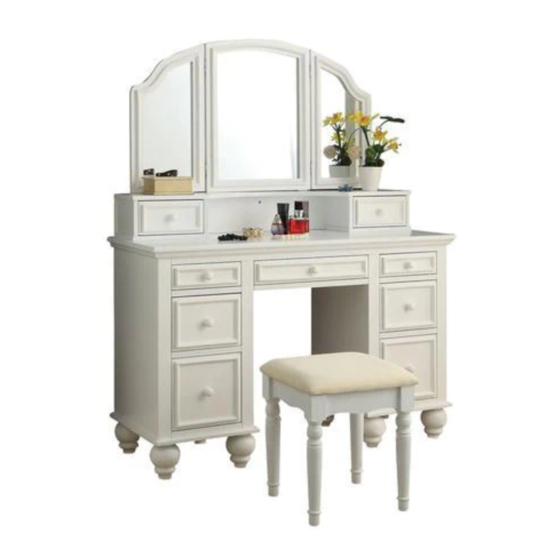

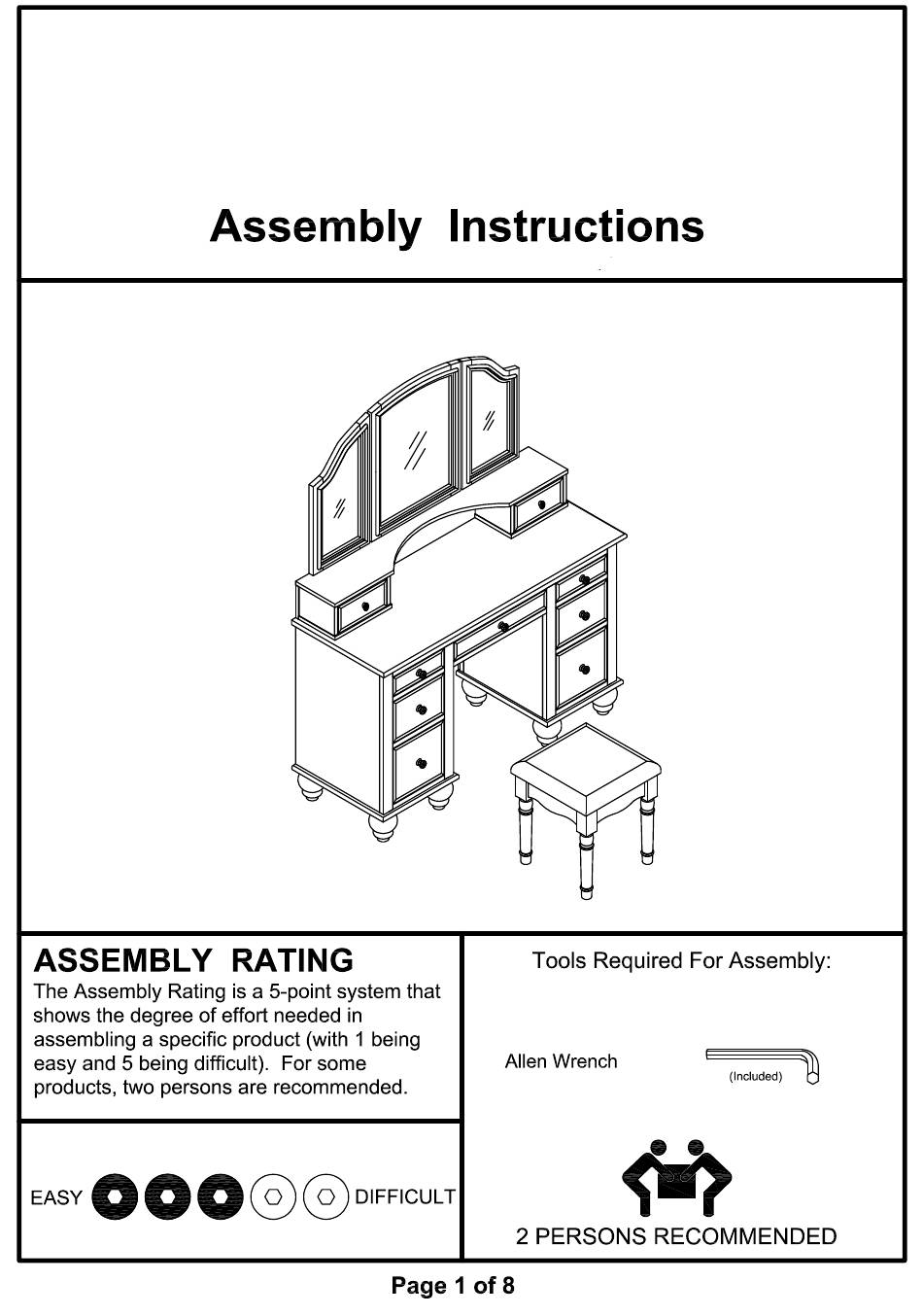

Summary of Contents for ATHY CM-DK6848
- Page 4 Attach legs (#2) to the bottom holes of the cabinet body (#1). Attach 4 wood dowels (#G) to each riser (#4), then attach the risers (#4) to the holes of the bottom plate (#3) as shown in the picture.
- Page 5 Insert barrel nuts (#B) to the holes of the bottom plate (#3). Make sure the barrel nut (#B) holes are facing the same direction as the hole on the back side of bottom plate (#3). Align backplane (#5) to the holes of the bottom plate (#3), then secure by attaching bolts (#A) to barrel nuts (#B).
- Page 6 Prepare 4 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#C). Align mirror connecting rods (#10) to the holes located in the back side of the cabinet body (#1). Secure with bolts (#C). Prepare 4 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#C). Align mirror (#8) to the holes of the mirror connecting rod (#10), then secure with bolts (#C).
- Page 7 Slide the side mirrors (#9) down to the metal pole of the middle mirror (#8). Unscrew the knob, then reattach the knob to the outside of the drawer.
- Page 8 Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align legs (#2) to the holes of the cushion (#1), then secure with bolts (#A).
