Summary of Contents for Adedad PL10W

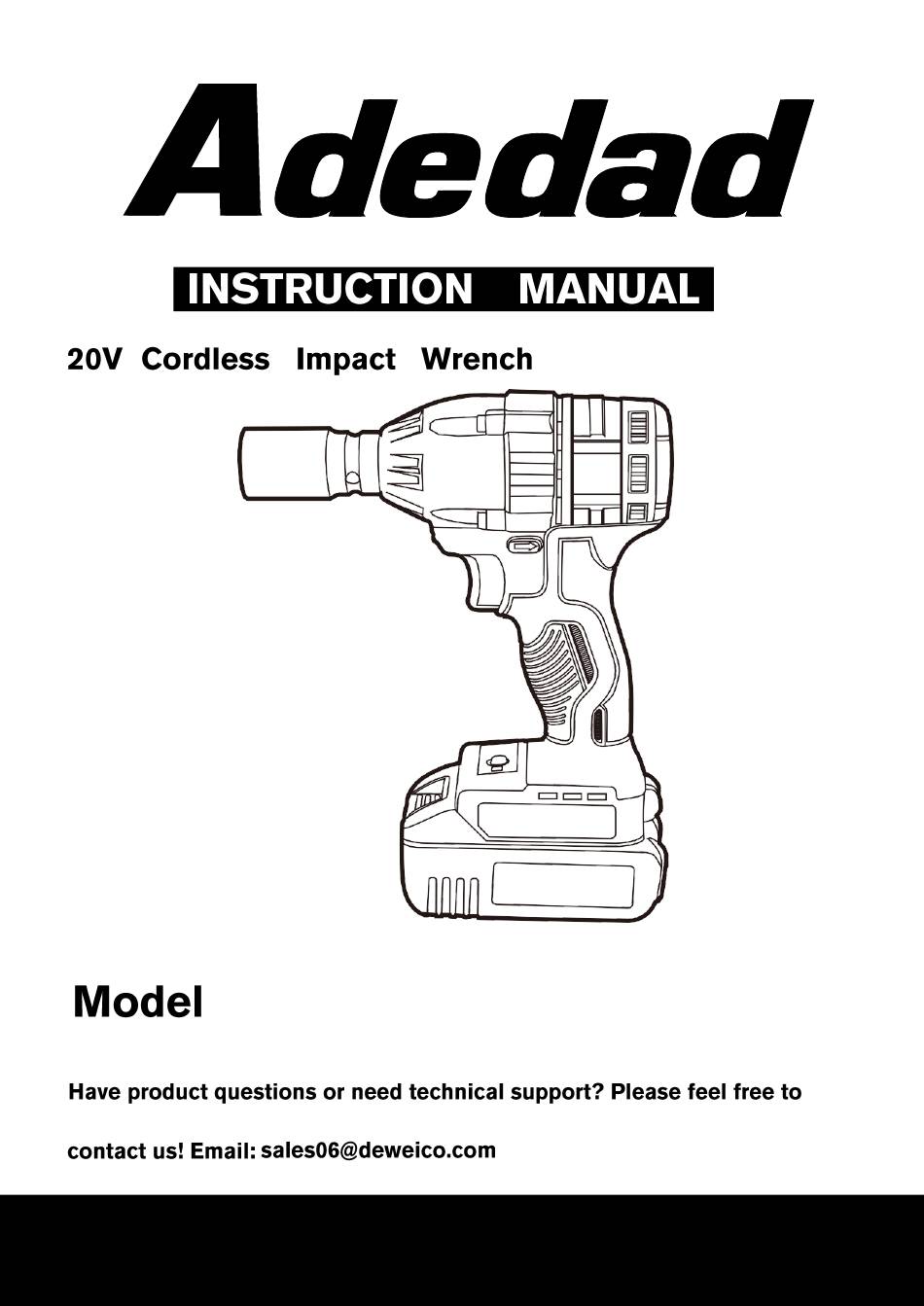

- Page 1 ： PL10W...
-
Page 3: Technical Data
Knowing your cordless impact wrench ............9 Assembly instruction ..................10 Operat ing instruction ..................11 Maintenance ....................13 Trouble shooting .................... 15 Warranty ..........................16 TECHNICAL DATA Cordless Impact Wrench Model：PL10W Rated Voltage: No-load Speed： 0~2900 rpm Square Drive: 1/2inch Torque force: 240 ft-lbs Battery type: 20V Lithium-ion, 2.0 Ah... - Page 4 ADEDAD reserves the right to change this product and specifications at anytime without prior notice. Please keep this manual available to all users during the entire life of the powertool.
- Page 5 Safety is a combination of common sense, staying alert, and knowing how your power tool works. Do not operate this unit until you read this instruction manual for safety, operation and maintenance instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.
- Page 6 Use power tools only with specifically designated battery packs. Use of any another battery packs my create a risk of injury and fire. Use only ADEDAD battery (Model:B-AD2002) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
- Page 7 Hold power tools by insulated gripping surfaces when performing an operation where the cutting tools may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Wear ear protectors with.
- Page 8 Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) Watts...
- Page 9 Square drive anvil Worklight Trigger switch Forward/Reversing lever & trigger lock Handle Battery 7 Battery capacity display and Reverse stop Unpack the power tool and all its parts, and compare against the list below. Do not discard the carton or any packaging materials.
- Page 10 Do not use this product if any parts on the packing list are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.
- Page 11 : Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. Align the belt hook with the mounting hole of the base and tighten the screw. The belt hook can be installed from the other side according to the operation habit.
- Page 12 After tool use, lock trigger in “OFF” position to help prevent accidental starts and accidental discharge. Your tool is equipped with a forward/ reversing lever and trigger lock located above the trigger (fig. 1). This lever was designed for changing rotation of the bit, and for locking the trigger in an “OFF” position. For forward rotation, (with chuck pointed away from you) move the lever to the far left.
- Page 13 Battery packs are shipped in a low charge condition to prevent possible problems. Therefore, you should charge them before first use. • Use only ADEDAD battery charger (BC-AD2002) • Charge time is approximately 1hour, and is dependent upon the type of battery pack.
- Page 14 2. Confirm battery is locked and secured to the tool. 3. Let battery sit a few minutes or until it reaches normal operating temperature. 4. Replace the switch provided by ADEDAD. 1. Charger not plugged into outlet. 2. Battery pack not completely inserted into charger.
- Page 15 For questions / comments, technical assistance or repair parts – Please send...
