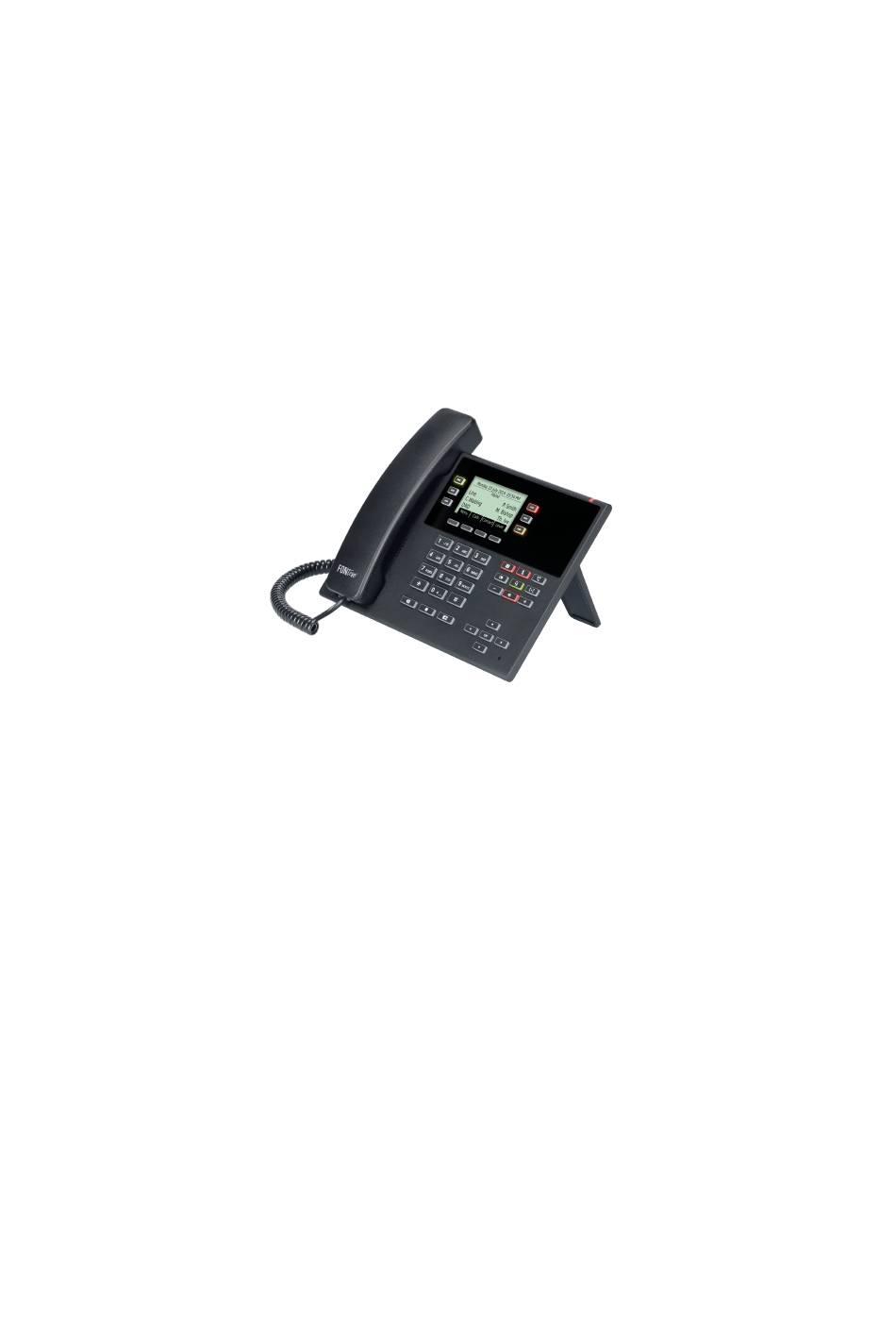

COMfortel D-100 / D-110 / D-200 / D-210
Advanced Information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMfortel D-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for FONtevo COMfortel D-100

  • Page 1 V07 12/2021 COMfortel D-100 / D-110 / D-200 / D-210 Advanced Information...

  • Page 2: Table Of Contents

    On no reply....................45 Call type......................46 Call waiting.....................47 Caller list......................49 Overview of call lists...................50 Redial List....................51 Missed calls....................53 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 2 -...
  • Page 3 Idle state......................85 InterCom......................86 Jitter buffer..................... 88 Language and location.................. 89 LDAP......................90 Logging......................92 Loudspeaker listening mode................93 Music on hold....................94 NAT........................ 95 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 3 -...
  • Page 4 Trace......................129 Transferring calls..................131 Call transfer types..................132 Transfer the call with an announcement..........133 Transferring a call without an announcement.......... 134 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 4 -...
  • Page 5 Rear View.....................177 Using the Web Interface................. 180 Basic Knowledge..................181 Open web interface.................. 182 Operating Instructions................183 Overview....................184 Fields and User Elements..............186 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 5 -...
  • Page 6 Call forwarding ext. calls: On busy............219 Call forwarding ext. calls: On no reply..........220 Call forwarding ext. calls: Immediately..........221 VPN......................222 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 6 -...
  • Page 7 Schedule....................255 Network......................256 Current Settings..................257 IPv4......................259 IPv6......................261 VLAN......................263 VPN......................265 Topology....................270 Basic Settings..................271 Jitter buffer.....................272 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 7 -...
  • Page 8 Access......................303 General settings..................304 Developer options..................305 Action URL.................... 306 Logging....................307 Phone menu....................308 Using the Phone..................... 309 Basic Knowledge..................310 Display.......................311 Display overview..................312 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 8 -...
  • Page 9 Changing the input mode..............346 Calls......................347 Navigation....................348 Menu......................349 Contacts....................... 351 Navigation....................352 Edit Contact....................354 Settings......................356 Network..................... 357 Current Settings..................358 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 9 -...
  • Page 10 Language and location................392 Display and LED..................393 Telephony....................396 Call waiting.................... 397 Audible indication...................398 Do not disturb..................399 Call forwarding..................400 Anonymous call..................402 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 10 -...
  • Page 11 Call forwarding ext. calls: On no reply..........426 Call forwarding ext. calls: Immediately..........427 VPN....................428 XML Minibrowser................429 Automatic configuration switching............430 Update.......................431 Using provisioning..................433 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 11 -...
  • Page 12 EHS......................459 End device....................460 Ethernet.....................461 Firewall...................... 462 Firmware....................463 Frame size....................464 Gateway....................465 HOST......................466 HTTP......................467 ICE......................468 IMAP......................469 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 12 -...
  • Page 13 Redirect Server..................487 Registrar....................488 router......................489 RTP......................490 Rubber cover.................... 491 SPL......................492 Server......................493 SIP......................494 SIP port..................... 495 SIPS......................496 SLAAC.......................497 SMTP server..................... 498 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 13 -...
  • Page 14 506 URI......................507 URL......................508 VLAN......................509 VoIP......................510 VoIP account.....................511 VoIP address.................... 512 VoIP provider.................... 513 VPN......................514 XML......................515 Abbreviations....................516 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 14 -...

  • Page 15: Information About Release 2.0

    As part of the SIP stack reconfiguration: Non-identity-specific settings have been moved from Identities to Topology. These setting include: • Check hostname COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 15 -...
  • Page 16 If there is an error: Sets the interval for registration attempts or for establishing a subscription on the PBX/provider. For more information, see Identities. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 16 -...
  • Page 17 NAT Traversal have been grouped. The Use ICE function has been implemented. For more information, see NAT. Glossary These terms have been added: • ICE • Prefetch COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 17 -...

  • Page 18: About These Instructions

    About these instructions About these instructions Gender Notice Trademarks Licenses Instructions COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 18 -...

  • Page 19: Gender Notice

    The English-language documentation does not use gender-specific forms of address. Any references to persons apply to all people of all genders. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 19 -...

  • Page 20: Trademarks

    Windows and ActiveSync are registered trademarks of Microsoft Corporation in the USA and/or other countries. All other trademarks mentioned are the property of the relevant manufacturer. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 20 -...

  • Page 21: Licenses

    GPL, the LGPL or other licenses. To view the licences, select Settings > About phone > Licences. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 21 -...

  • Page 22: Instructions

    You will find the Operating Manual and the Quick Guide on our web site. After an update, you usually require a new version of the instructions. You will find these on our website. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 22 -...

  • Page 23: Functions And Applications

    Device Information Dial a Subscriber Number Manually Display and LED Do not disturb Fallback identity Function keys Function templates Hands-free calling mode COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 23 -...
  • Page 24 Query Calls Redial List Reset to default Reverse search Roaming User Silent Call SIPS Sound Speed dial SRTP Trace Transferring calls Update COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 24 -...
  • Page 25 Functions and Applications User roles and permissions Using provisioning Voicemail number XML Minibrowser COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 25 -...

  • Page 26: Information About The Section

    Information about the section Information about the section This section describes how to configure and use the functions on your phone. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 26 -...

  • Page 27: Action Url

    Details about the settings are in Access Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 27 -...
  • Page 28 *conference Conference call DTMF *dtmf 2. If a token is used for authentication, the token must be sent in the request header. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 28 -...
  • Page 29 You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 29 -...

  • Page 30: Anonymous Call

    Details about the settings are in Anonymous call Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 30 -...
  • Page 31 CLIR (number presentation suppression) type as is set on the PBX/at the provider. Details about the settings are in Options for experts Details about the settings are in Function codes COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 31 -...

  • Page 32: Automatic Call Acceptance

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 32 -...

  • Page 33: Automatic Start Of Call

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 33 -...

  • Page 34: Backup And Restore

    • Potentially WLAN passwords • VPN information and VPN credentials • Potentially webcam and access data • LDAP information COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 34 -...
  • Page 35 Configuration Web interface: • Backup and restore Details about the settings are in Backup and restore COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 35 -...

  • Page 36: Call

    COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 36 -...
  • Page 37 Note: If you want to end the current call, and then immediately make a new call, press the soft key End and then start dial the next number. Description of the operation under Call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 37 -...

  • Page 38: Call Bindings

    You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 38 -...

  • Page 39: Call Completion

    2. Press the appropriate soft key to activate the automatic callback. 3. A notification is displayed as soon as the called number is no longer busy. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 39 -...
  • Page 40 4. Confirm the notification to call the subscriber, who is now free. 5. The callback process is then deleted in the PBX. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 40 -...

  • Page 41: Call Forwarding

    Call forwarding Call forwarding General Immediately On busy On no reply COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 41 -...

  • Page 42: General

    You can make the following settings: • Type of call forwarding (Immediately, On busy, By time) • Call forwarding destination • Waiting time before call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 42 -...

  • Page 43: Immediately

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 43 -...

  • Page 44: On Busy

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 44 -...

  • Page 45: On No Reply

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 45 -...

  • Page 46: Call Type

    • External call • Internal call • Group calling (a call made to a specific group) • External recall • Internal recall COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 46 -...

  • Page 47: Call Waiting

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 47 -...
  • Page 48 The call waiting caller also hears the ringing tone until the called person lifts their handset. You are now connected to the first call partner. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 48 -...

  • Page 49: Caller List

    Caller list Caller list Overview of call lists Redial List Missed calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 49 -...

  • Page 50: Overview Of Call Lists

    Details about the settings are in All call lists COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 50 -...

  • Page 51: Redial List

    • OK • Headset • Loudspeaker • softkey Menu > Call> OK Deleting Entries from the Redial List • Entire list: Clear COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 51 -...
  • Page 52 Redial List • Entire list: Clear (approx. 2 seconds) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 52 -...

  • Page 53: Missed Calls

    • Headset • Loudspeaker • softkey Menu > Call> OK Deleting Entries from the List of Missed Calls • Entire list: Clear COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 53 -...
  • Page 54 Note: You cannot use the Message button to display seen missed calls if the display has been set to Disabled in the Display and LED > Seen missed calls menu option. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 54 -...

  • Page 55: Central Caller List

    If the telephone is not registered when it receives an incoming call, or if an update is being performed, the list in the telephone is updated when the connection is restored. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 55 -...
  • Page 56 (if this function is enabled). Further help under Roaming User Requirement for use The function is enabled in the PBX. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 56 -...

  • Page 57: Certificate

    Details about the settings are in Topology Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 57 -...

  • Page 58: Codecs

    Details about the settings are in Audio Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 58 -...

  • Page 59: Conference Call

    The conference call is cancelled. One subscriber is put on hold and there is an active connection with the other subscriber. You can change between holding a call and an active call. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 59 -...
  • Page 60 Ending a conference call completely If you initiated the conference call, you can end the conference call completely. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 60 -...

  • Page 61: Contact

    Contacts to whom calls are made frequently can also be displayed in the Favorites list. Contacts can be saved using backup. Details about the settings are in Backup and restore COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 61 -...
  • Page 62 Edit:Displays the menu in which you edit a saved contact. E. →Fav. / →Fav.:Turns a contact into a favourite or favourite into a normal contact. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 62 -...
  • Page 63 • You cannot delete or edit LDAP contacts, or mark them as a favourite. 2 soft keysDelete , →Fav. and Editare not offered. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 63 -...

  • Page 64: Cti

    The implementation of CTI takes place in the devices of the COMfortel D- series via Action-URL. Further help under Action URL COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 64 -...

  • Page 65: Date And Time

    Details about the settings are in Date and time Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 65 -...

  • Page 66: Device Information

    Details about the settings are in Status information Phone: • Settings > About phone Details about the settings are in About phone COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 66 -...

  • Page 67: Dial A Subscriber Number Manually

    Back Description of the operation under Dialled calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 67 -...

  • Page 68: Display And Led

    Details about the settings are in Display and LED Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 68 -...

  • Page 69: Do Not Disturb

    Details about the settings are in Telephony Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 69 -...

  • Page 70: Fallback Identity

    Details about the settings are in Options for experts Phone: • Settings > Identities > Options for experts > Fallback for COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 70 -...
  • Page 71 1. In the "Fallback for" list, select the identity that is to be covered by a second if it becomes necessary. 2. Save COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 71 -...

  • Page 72: Function Keys

    Details about the settings are in Function keys Phone: • Settings > Function keys Details about the settings are in Function keys COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 72 -...
  • Page 73 • directional pad Left and Right keys • softkeyLevel in the Choose a key: Change between key levels by pressing the following key: • softkeyLevel COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 73 -...
  • Page 74 You can use the templates in a provisioning file to extend the range of functions on the phone. These additional functions can be assigned to function keys. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 74 -...
  • Page 75 You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 75 -...

  • Page 76: Function Templates

    Details about the settings are in Using provisioning Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 76 -...

  • Page 77: Hands-Free Calling Mode

    This enables you to phone if you don't have a hand free. Other people in the room can take part in the call. Description of the operation under Hands-Free Calling COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 77 -...

  • Page 78: Headset Mode

    • Initiating the listen-in function on the receiver • Ending the listen-in function through the receiver Description of the operation under Headset Call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 78 -...

  • Page 79: Identities

    Identities Identities General VoIP provider COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 79 -...

  • Page 80: General

    Caution: The default identity does not switch automatically. If a default identity fails, the LED on the appropriate function key lights up red. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 80 -...

  • Page 81: Pbx

    • Identities > Display settings Details about the settings are in Identities Phone: • Settings > Identities Details about the settings are in Identities Provisioning: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 81 -...
  • Page 82 You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 82 -...

  • Page 83: Voip Provider

    • Identities > Display settings Details about the settings are in Identities Phone: • Settings > Identities Details about the settings are in Identities Provisioning: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 83 -...
  • Page 84 VoIP provider You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 84 -...

  • Page 85: Idle State

    Details about the settings are in Display and LED Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 85 -...

  • Page 86: Intercom

    Details about the settings are in Automatic call acceptance Phone: • Settings > Telephony > Automatic call acceptance Details about the settings are in Telephony Provisioning: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 86 -...
  • Page 87 InterCom destination. 3. A bi-directional connection is then present between the InterCom source and InterCom destination without a call being actively taken. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 87 -...

  • Page 88: Jitter Buffer

    Details about the settings are in Topology Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 88 -...

  • Page 89: Language And Location

    Note: In the web interface, you can set both the language and location, both for the web interface and for the phone. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 89 -...

  • Page 90: Ldap

    LDAP filter syntax is used. RFC 2254 and RFC 4515 are used. Phone: • Settings > LDAP Details about the settings are in Contacts/LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 90 -...
  • Page 91 LDAP Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 91 -...

  • Page 92: Logging

    Details about the settings are in Access Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 92 -...

  • Page 93: Loudspeaker Listening Mode

    The call is continued using the microphone in the receiver (not hands-free operation). Description of the operation under Loudspeaker listening COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 93 -...

  • Page 94: Music On Hold

    Details about the settings are in Audio Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 94 -...

  • Page 95: Nat

    Details about the settings are in Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 95 -...

  • Page 96: Network

    Network Network General IPv4 IPv6 VLAN Topology COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 96 -...

  • Page 97: General

    These protocols can be set up for the device: • IPv4 • IPv6 • VLAN • VPN COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 97 -...

  • Page 98: Ipv4

    Auerswald DokuWiki Note: At least one protocol must be enabled and configured. IPv4 cannot be disabled if IPv6 is disabled. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 98 -...

  • Page 99: Ipv6

    Auerswald DokuWiki Note: At least one protocol must be enabled and configured. IPv6 cannot be disabled if IPv4 is disabled. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 99 -...

  • Page 100: Vlan

    Details about the settings are in VLAN Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 100 -...

  • Page 101: Vpn

    Details about the settings are in Provisioning: Note: An example configuration, for a FRITZ!box (a German DSL modem/router), is described in the Auerswald DokuWiki. This COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 101 -...
  • Page 102 − IPsecIdentifier − Forwarding routes − preinstalled IPsecSecret 4. Load files for these parameters: − IPsecUserCert − IPsecUserPrivateKey − IPsecCaCert − IPsecServerCert COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 102 -...
  • Page 103 IPsec Hybrid RSA can vary greatly, depending on which server is in use. The network administrator must predefine the configuration. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 103 -...

  • Page 104: Topology

    Details about the settings are in Topology Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 104 -...

  • Page 105: Notifications

    Details about the settings are in Identities Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 105 -...

  • Page 106: Outbound Proxy

    Details about the settings are in Outbound proxy Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 106 -...

  • Page 107: Passwords

    • From the factory settings: Password dialogue is displayed when user enters phone's IP address in web browser • User Details about the settings are in User Phone: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 107 -...
  • Page 108 Details about the settings are in Access Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 108 -...

  • Page 109: Pick-Up

    Pick-Up Pick-Up Pick-up in idle state Pick-up during a call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 109 -...

  • Page 110: Pick-Up In Idle State

    • Function key with the speed dial for the internal phone that is to be called configured on it COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 110 -...

  • Page 111: Pick-Up During A Call

    • Function key with the speed dial for the internal phone that is to be called configured on it COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 111 -...

  • Page 112: Query Calls

    Alternatively, one of the call partners can simply hang up so that you can continue talking with the other call partner. Description of the operation under Query Calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 112 -...
  • Page 113 If you would like to let your call partners speak with each other, you can connect them. Description of the operation under Query Calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 113 -...

  • Page 114: Redial List

    Redial List Redial List Description of the operation under Redial List COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 114 -...

  • Page 115: Reset To Default

    • Settings > Update > Reset to default • Follow the instructions in Procedure directly on the device Details about the settings are in Update COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 115 -...
  • Page 116 The phone is not reset to its default settings. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 116 -...

  • Page 117: Reverse Search

    Details about the settings are in Reverse search Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 117 -...

  • Page 118: Roaming User

    Roaming User authorisation must be assigned to the user in the PBX. Process for logging onto/logging off the telephone 1. The function key Login / Logout is provisioned by the PBX. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 118 -...
  • Page 119 Further help under Central caller list You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 119 -...

  • Page 120: Silent Call

    2. Activate Provisioning from PBX search. 3. Enter the relevant Provisioning server URL. 4. Set up a function key with the extended function provided by provisioning. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 120 -...

  • Page 121: Sip

    Internet services are implemented with TCP, e.g., HTTP (WWW), SMTP/POPS (e-mail), etc. Configuration Web interface: • Identities > Options for experts COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 121 -...
  • Page 122 Details about the settings are in Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 122 -...

  • Page 123: Sips

    Details about the settings are in Security Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 123 -...

  • Page 124: Sound

    4. The identity has a specific ringtone. 5. A defined default ringtone is used. 6. The Android fallback ringtone is used. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 124 -...
  • Page 125 3. When you confirm your ringtone selection, the menu closes. The selected sound is then used as the default for incoming calls. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 125 -...

  • Page 126: Speed Dial

    Configuration Web interface: • Function keys > Speed dial COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 126 -...
  • Page 127 Details about the settings are in Speed dial Phone: • Settings > Function keys > Speed dial Details about the settings are in Speed dial Provisioning: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 127 -...

  • Page 128: Srtp

    Details about the settings are in Security Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 128 -...

  • Page 129: Trace

    COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 129 -...
  • Page 130 4. The file is saved automatically and displayed in the browser's downloads list. Contact Auerswald Support/ FONtevo Support, to arrange for it to be analysed. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 130 -...

  • Page 131: Transferring Calls

    Transferring calls Call transfer types Transfer the call with an announcement Transferring a call without an announcement Calling a 3rd internal subscriber COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 131 -...

  • Page 132: Call Transfer Types

    • Transfer the call without announcement (blind transfer) • Calling a 3rd internal subscriber and connecting them to an active call partner COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 132 -...

  • Page 133: Transfer The Call With An Announcement

    To transfer a call, a query call is placed. The call is announced. The two call partners are connected with each other. Description of the operation under Transferring calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 133 -...

  • Page 134: Transferring A Call Without An Announcement

    (the phone rings) after 2 minutes (or as set on the PBX or at the provider). Description of the operation under Transferring calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 134 -...

  • Page 135: Calling A 3Rd Internal Subscriber

    To do so, a third call is triggered and the second subscriber is connected to the third subscriber. The original, existing call continues. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 135 -...

  • Page 136: Update

    During a manual update, the downloading of the update is triggered manually. After the update, the phone restarts automatically. Configuring a manual update 1. Enter the Update server URL COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 136 -...
  • Page 137 You can set the weekday and time. Configuring an automatic update 1. Enable Automatically install updates 2. Enter the Update server URL COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 137 -...
  • Page 138 If there is a newer version of the firmware, you are informed in a message on the screen. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 138 -...

  • Page 139: User Roles And Permissions

    No password protection, so no differentiation between administrators and users. Administrators can make changes in the web interface. Configuration Web interface: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 139 -...
  • Page 140 Details about the settings are in Access Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 140 -...

  • Page 141: Using Provisioning

    The URL is required if provisioning is not performed using DHCP data or a redirect server. • SIP provisioning The phone is configured using incoming SIP messages. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 141 -...
  • Page 142 Details about the settings are in Using provisioning Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 142 -...
  • Page 143 − Provisioning from PBX search − Provisioning server URL You can select combinations of these options. 2. Select Start provisioning. Provisioning is performed. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 143 -...
  • Page 144 • Switch on SIP provisioning. You will find more information on configuration via SIP messages and also the provisioning process in the Auerswald DokuWiki. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 144 -...

  • Page 145: Voicemail Number

    • COMmander 6000/R/RX: COMmander VMF module • COMpact 5010 VoIP: COMpact 2VoIP module • COMpact 5020 VoIP: COMpact 2VoIP or 6VoIP module COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 145 -...
  • Page 146 Details about the settings are in Function codes Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 146 -...

  • Page 147: Xml Minibrowser

    Details about the settings are in XML Minibrowser Provisioning: You will find general details about provisioning and how to provision this function in Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 147 -...
  • Page 148 Further help in the Auerswald DokuWiki COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 148 -...

  • Page 149: Telephoning

    Incoming calls Call-Waiting Calls Dialled calls Call Query Calls Transferring calls Conference call Hands-Free Calling Loudspeaker listening Headset Call Caller list Pick-Up COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 149 -...

  • Page 150: Information About The Section

    To create/end a connection Pick up the receiver Loudspeaker Headset softkeyAccept / End reject a call softkeyReject COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 150 -...
  • Page 151 Information about the section Back Holding a call/Reconnecting from a call that is on hold Hold COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 151 -...

  • Page 152: Incoming Calls

    Pick up the receiver Headset Loudspeaker softkeyAccept Rejecting a call softkeyReject Putting an accepted call on hold Hold Reconnecting an on-hold call Hold COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 152 -...
  • Page 153 Incoming calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 153 -...

  • Page 154: Call-Waiting Calls

    Further help under Call waiting Forwarding Transfer > Enter destination number > Loudspeaker Transfer destination number > OK Further help under Call waiting COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 154 -...

  • Page 155: Dialled Calls

    > You have missed calls.> OK Message key > select the required phone number > pick up the receiver Further help under Missed calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 155 -...
  • Page 156 Note: If more than one number is stored for a contact, you can select the number to call before you pick up the receiver. Further help under Contact COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 156 -...

  • Page 157: Call

    Muting a call Microphone Switching off muting To do this, press Microphone again COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 157 -...
  • Page 158 Further help under Call Sending a DTMF signal during a call To do this, enter digits and special characters Further help under Call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 158 -...

  • Page 159: Query Calls

    Splitting a call (during a query call) Select the call partner to whom you want to change > Hold Further help under Query Calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 159 -...
  • Page 160 Connecting the two call partners to each other To do this, hang up the receiver softkeyJoin Further help under Query Calls COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 160 -...

  • Page 161: Transferring Calls

    > softkeyDial> enter destination number > OK > softkeyJoin> To do this, hang up the receiver Further help under Transferring a call without an announcement COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 161 -...

  • Page 162: Conference Call

    Connecting the other two conference call partners to each other softkeyJoin Further help under Conference call Splitting a conference call softkeySplit COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 162 -...
  • Page 163 Conference call Ending a conference call completely To do this, hang up the receiver Conference call> softkeyEnd Further help under Conference call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 163 -...

  • Page 164: Hands-Free Calling

    Further help under Automatic start of call Further help under Hands-free calling mode Ending a call in hands-free calling mode softkeyEnd COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 164 -...
  • Page 165 Hands-Free Calling Loudspeaker Back Further help under Hands-free calling mode COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 165 -...

  • Page 166: Loudspeaker Listening

    Ending a call in loudspeaker listening mode To do this, hang up the receiver softkeyEnd Further help under Loudspeaker listening mode COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 166 -...

  • Page 167: Headset Call

    Personally initiating a call when headset operation is switched on (headset LED is shining green) Headset softkeyAccept Further help under Headset mode Transferring an active call to the headset Headset COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 167 -...
  • Page 168 Cancelling the listen-in function on the receiver during a headset call To do this, hang up the receiver Further help under Headset mode COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 168 -...

  • Page 169: Caller List

    Options for displaying entries in an active list softkey Menu (hold down the key for approx. 2 sec. .) Further help under Caller list COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 169 -...
  • Page 170 (hold down the key for approx. 2 sec. .) Further help under Caller list Calling from an opened call history Pick up the receiver COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 170 -...
  • Page 171 Menu > Call> OK Loudspeaker Headset Further help under Caller list To leave the call history Back Further help under Caller list COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 171 -...

  • Page 172: Pick-Up

    > enter pick-up code an phone number of the internal phone > pick up the receiver or confirm with OK Further help under Pick-up during a call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 172 -...

  • Page 173: Device Overview

    Device Overview Device Overview Front View Rear View COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 173 -...

  • Page 174: Front View

    2. Function keys (3x on each side) 3. Dedicated function keys 4. OK 5. Directional pad keys (Up, Down, Right, Left) 6. Back COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 174 -...
  • Page 175 10. Soft keys: situation-dependent function keys below the display (4x) A. Microphone B. Hold C. Transfer D. plus E. Headset F. Loudspeaker G. minus H. Redialling Messages COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 175 -...
  • Page 176 Front View Keys and LEDs on the key extension module A. Function keys (10x on each side) B. control rocker COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 176 -...

  • Page 177: Rear View

    The next figures show the connections on the bottom of the different devices. ® COMfortel D-100/D-110 A. Network port B. Direct PC connection via network cable C. Headset socket D. Receiver socket COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 177 -...
  • Page 178 F. Rubber cover: to connect a COMfortel D-XT20/D-XT20i key extension module, remove the cover and attach it to the extension module. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 178 -...
  • Page 179 B. USB port (e.g. for connecting another COMfortel D-XT20/D-XT20i key extension module) C. Micro-USB port: use this to connect the telephone to the key extension module COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 179 -...

  • Page 180: Using The Web Interface

    Basic Knowledge Dashboard Display Function keys Using provisioning Identities Update Network LDAP Telephony Ringtones Date and time User Backup and restore Access COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 180 -...

  • Page 181: Basic Knowledge

    Basic Knowledge Basic Knowledge Open web interface Operating Instructions COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 181 -...

  • Page 182: Open Web Interface

    Change the User password without delay. 3. Click on Login. You will now be logged on in the web interface and can make settings. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 182 -...

  • Page 183: Operating Instructions

    Operating Instructions Operating Instructions Overview Fields and User Elements Appearance COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 183 -...

  • Page 184: Overview

    C. Display or hide vertical navigation. If the menu structure on the left is being displayed, a vertical navigation is displayed. D. Breadcrumb navigation COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 184 -...
  • Page 185 The topic selected using the vertical navigation is displayed here. G. Displays or hide the help system. H. Help system Save COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 185 -...

  • Page 186: Fields And User Elements

    { } curly brackets Active text input field. Text input field that is already filled. Text input field that is locked for processing. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 186 -...
  • Page 187 The position of the slider identifies where the setting is. Drag the slider to the left to reduce the value. Drag the slider to the right to increase the value. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 187 -...

  • Page 188: Appearance

    (e.g. Mozilla Firefox under View > Zoom > Normal or Ctrl + 0). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 188 -...

  • Page 189: Dashboard

    Dashboard Dashboard Status information Language and location Device name COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 189 -...

  • Page 190: Status Information

    Displays the bootloader version in use on your device. Serial number Displays your device's serial number. MAC address Displays your device's physical address on the network. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 190 -...
  • Page 191 Here, you can display the following license information: • End User License Agreement for Software (EULA) • Data protection • Open source licenses COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 191 -...

  • Page 192: Language And Location

    Audio frequencies (pitches, pulse/pause characters and/or ringing tones), and also the time and time format, are different for each selected location. Further help under Language and location COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 192 -...

  • Page 193: Device Name

    Device name Device name Device name The name you assign to the device. Further help under Device Information COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 193 -...

  • Page 194: Display

    Display Display Basic Settings LED notifications COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 194 -...

  • Page 195: Basic Settings

    Note: Any changes you make to the brightness affect on all key extension modules that are connected. Further help under Display and LED COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 195 -...

  • Page 196: Led Notifications

    Further help under Display and LED Heard voice messages Sets the message key LED's reaction to heard voice messages. • LED lights up COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 196 -...
  • Page 197 Controls the behaviour of the message key LED. If this option is deselected, the message key LED are switched off permanently. Further help under Display and LED COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 197 -...

  • Page 198: Function Keys

    Function keys Function keys Overview Edit function keys Edit parameters Edit Icon COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 198 -...

  • Page 199: Overview

    Click on the selected key to open the Edit function keys window E. Level 2 (opens when you pass over it with the mouse) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 199 -...
  • Page 200 3 levels. B. Lists all 3 possible levels to which a function can be assigned C. Display D. Level 1 (always visible) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 200 -...
  • Page 201 Note: If a key already has a function assigned to it, the LED shines orange. You can assign a different function. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 201 -...

  • Page 202: Edit Function Keys

    Details about the settings are in Edit Icon Key label Displayed beside each function key on the screen. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 202 -...
  • Page 203 Deletes the functions assigned to the key on all levels. Cancel Closes the menu without adopting changes. Save Saves the entered parameters and close the window. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 203 -...

  • Page 204: Edit Parameters

    Call forwarding ext. calls: On busy Call forwarding ext. calls: On no reply Call forwarding ext. calls: Immediately XML Minibrowser Automatic configuration switching COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 204 -...

  • Page 205: Speed Dial

    Note: Pickup should not be used if the key is only used to switch functions in the PBX using a programming code. Deactivate Pickup in that case. Further help under Pick-Up COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 205 -...
  • Page 206 If this function is enabled, missed calls associated with the speed dial number are signalled with flashing green LEDs. Further help under Speed dial COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 206 -...

  • Page 207: Identity

    Identity Identity Identity Identity used to trigger subsequent calls. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 207 -...

  • Page 208: Call Waiting

    Call waiting Call waiting No parameters necessary. Further help under Call waiting COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 208 -...

  • Page 209: Do Not Disturb

    Do not disturb Identity Identity for which this function is set up. Further help under Identities Further help under Do not disturb COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 209 -...

  • Page 210: Dtmf-Relay

    DTMF-Relay DTMF-Relay DTMF sequence Numbers needed to perform the required function. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 210 -...

  • Page 211: Group

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 211 -...

  • Page 212: Group (Incoming)

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 212 -...

  • Page 213: Group (Outgoing)

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 213 -...

  • Page 214: Activate Config

    Identity for which this function is set up. Further help under Identities Configuration id The PBX assigns the configuration ID automatically. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 214 -...

  • Page 215: Anonymous Call

    Anonymous call Anonymous call No parameters necessary. Further help under Anonymous call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 215 -...

  • Page 216: Call Forwarding On Busy

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 216 -...

  • Page 217: Call Forwarding On No Reply

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 217 -...

  • Page 218: Call Forwarding Immediately

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 218 -...

  • Page 219: Call Forwarding Ext. Calls: On Busy

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 219 -...

  • Page 220: Call Forwarding Ext. Calls: On No Reply

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 220 -...

  • Page 221: Call Forwarding Ext. Calls: Immediately

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 221 -...

  • Page 222: Vpn

    No parameters necessary. Further help under Network COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 222 -...

  • Page 223: Xml Minibrowser

    XML Minibrowser XML Minibrowser Number/URI Web server address Further help under XML Minibrowser COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 223 -...

  • Page 224: Automatic Configuration Switching

    Identification number for system relay with Automatic configuration switchover operating mode (900, in the factory settings). Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 224 -...

  • Page 225: Edit Icon

    Function keys Applies the icon for these views: • Edit function keys menu, web interface • Function keys list, web interface COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 225 -...
  • Page 226 Tool for adjusting the icon's image size and screen window. Further help under Function keys Icon Preview Displays a preview of the final icon. Further help under Function keys COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 226 -...

  • Page 227: Using Provisioning

    Using provisioning Using provisioning Basic Settings Schedule SIP provisioning Additional function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 227 -...

  • Page 228: Basic Settings

    Using provisioning Provisioning from PBX search Automatic provisioning of the phone is performed via the PBX. Further help under Using provisioning COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 228 -...
  • Page 229 Provisioning server URL This URL is required if it is not obtained via DHCP or a redirect server. Further help under Using provisioning COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 229 -...

  • Page 230: Schedule

    Note: After a reboot, a random time between 00:00 and 05:00 is entered for provisioning. This prevents load spikes on the server. Further help under Using provisioning COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 230 -...

  • Page 231: Sip Provisioning

    SIP provisioning SIP provisioning SIP provisioning Starts remote configuration using SIP messages. Further help under Using provisioning COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 231 -...

  • Page 232: Additional Function Templates

    Additional function templates Vendor templates Activates templates and scripts that are specially designed to run on Auerswald/FONtevo PBXs. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 232 -...

  • Page 233: Identities

    Identities Identities Managing Identities Basic Settings Options for experts Codecs Registrar Outbound proxy COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 233 -...

  • Page 234: Managing Identities

    E. Activate/deactivate an identity F. Identity deactivated G. Resets the selected identity H. SIP Registrar Display name J. SIP Username K. Status L. Active COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 234 -...

  • Page 235: Basic Settings

    VoIP provider when the identity was being created or the password entered in the PBX. Further help under Identities Display name Freely selectable name. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 235 -...
  • Page 236 PBX can be accessed. Further help under Identities Ringer Tone Assigns a ringtone to the identity. Further help under Sound COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 236 -...

  • Page 237: Options For Experts

    Selection as set in the PBX/at the provider. Anonymous The sent display text in the From header is "anonymous". COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 237 -...
  • Page 238 If a connection or call is on hold, the "music on hold" is played. Further help under Music on hold IP version IPv4 Sets IPv4 for the registrar. IPv6 Sets IPv6 for the registrar. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 238 -...
  • Page 239 Activates the transmission of encrypted SIP messages over TLS for connections with this identity. The destination in the invite package header is contacted with an encrypted transmission. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 239 -...
  • Page 240 VoIP provider has not implemented session renewal properly. In this case, set a different session timeout or disabled the session timer. Further help under COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 240 -...
  • Page 241 Subscription interval (min) This sets the frequency at which the status of potential changes are queried on the PBX. Default: 45 minutes COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 241 -...
  • Page 242 Subscription: Interval in seconds Sets the time gap between two subscription attempts. Minimum: 10 sec Default: 180 sec Further help under COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 242 -...
  • Page 243 Further help under Register: Interval in seconds Sets the time gap between two registration attempts. Minimum: 1 sec Default: 10 sec COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 243 -...

  • Page 244: Codecs

    You can select inactive codecs and drag & drop them in the "Active" list to arrange them, or remove them from the list. Further help under Codecs COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 244 -...

  • Page 245: Registrar

    Caution: Each time a port is opened on the router, this creates a potential security risk. It is essential you put additional protective measures in place. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 245 -...
  • Page 246 The value you enter here should be a compromise between a short timespan (which generates traffic with the provider) and a long re- registration period. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 246 -...

  • Page 247: Nat

    Internet should be a properly functioning SIP-aware router which performs NAT traversal. Further help under RTP NAT traversal Requirement: • Configured DNS server COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 247 -...
  • Page 248 Enable the best possible transmission route to be found between the phone and PBX/provider. Note: ICE must only be activated if the other end supports ICE. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 248 -...
  • Page 249 Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 249 -...

  • Page 250: Outbound Proxy

    Server address for the outbound proxy. Note: The URL must be filled out if mode Manually is selected. Further help under Outbound proxy COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 250 -...
  • Page 251 Alternative server address for the outbound proxy. Further help under Outbound proxy Alternative port Alternative port for the outbound proxy. Further help under Outbound proxy COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 251 -...

  • Page 252: Update

    Update Update Basic Settings Restart and factory reset Schedule COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 252 -...

  • Page 253: Basic Settings

    In the default settings: https://update.auerswald.de Further help under Update Start update Starts installation of a new firmware version. Further help under Update COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 253 -...

  • Page 254: Restart And Factory Reset

    Resets the telephone to the factory settings. Any saved data and settings are deleted. The phone is shut down and then restarted. Further help under Reset to default COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 254 -...

  • Page 255: Schedule

    Further help under Update Time Time at which the phone checks for available updates and installs them. Further help under Update COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 255 -...

  • Page 256: Network

    Network Network Current Settings IPv4 IPv6 VLAN Topology COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 256 -...

  • Page 257: Current Settings

    Different subnet mask notation. Example: 24 corresponds to 255.255.255.0 Forwarding routes Protocol Shows which network protocol is being used by the forwarding route. Gateway COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 257 -...
  • Page 258 If only one router is in use, the DNS's IP address is the same as that of the gateway. If more than one server is being used to handle these tasks, the IP addresses will be different. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 258 -...

  • Page 259: Ipv4

    If you select Static: you can enter/change the phone's IP address In the factory settings: 0.0.0.0. Further help under IPv4 Subnet mask Example: 225.255.255.0 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 259 -...
  • Page 260 DNS server. The provider or network system administrator sets the DNS server. Further help under IPv4 DNS 2 Optional Further help under IPv4 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 260 -...

  • Page 261: Ipv6

    The DNS server is needed for Internet access. The provider or network system administrator sets the DNS server. The provider or network system administrator sets the DNS server. Further help under IPv6 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 261 -...
  • Page 262 IPv6 DNS 2 Optional Further help under IPv6 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 262 -...

  • Page 263: Vlan

    0 (lowest priority) to 7 (highest priority) Further help under VLAN PC port VLAN Switches on VLAN for the PC port. Further help under VLAN COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 263 -...
  • Page 264 The associated data packets are tagged with this ID. Further help under VLAN PC port VLAN priority 0 (lowest priority) to 7 (highest priority) Further help under VLAN COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 264 -...

  • Page 265: Vpn

    IPsec variant performed using the Layer 2 Tunneling Protocol. Authentication is performed using a shared secret and a personal secret. L2TP IPsec RSA COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 265 -...
  • Page 266 Your network administrator will give you your user name. Further help under Password Password for the VPN connection. Your network administrator will give you the password. Further help under COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 266 -...
  • Page 267 Caution: IPsecIdentifier settings can vary greatly, depending on which server is in use. The network administrator must predefine the configuration. Further help under COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 267 -...
  • Page 268 IPsecCaCert Acts as a "trust anchor" for the connection. The IPsec CA certificate (IPsecCaCert) must fulfil these criteria: • X.509 standard COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 268 -...
  • Page 269 Further help under OpenVPN Config Contents of a configuration file (openvpn.cfg). Component part of setting up an open VPN. Further help under COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 269 -...

  • Page 270: Topology

    Topology Topology Basic Settings Jitter buffer STUN server COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 270 -...

  • Page 271: Basic Settings

    Sets the RTP packet size (msec Audio/RTP package). Local SIP port 1024 … 65535 Default: 5060 Sets the outgoing port for SIP messages. Further help under COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 271 -...

  • Page 272: Jitter Buffer

    Maximum prefetch delay (msec). Default: 240 msec Further help under Jitter buffer Maximum Delay that can be set for the jitter buffer (msec). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 272 -...
  • Page 273 Jitter buffer Default: 360 msec Further help under Jitter buffer COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 273 -...

  • Page 274: Stun Server

    STUN server STUN server STUN server management Settings COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 274 -...

  • Page 275: Stun Server Management

    F. Adds another STUN server to the list. The list is dynamic. Settings can be made for up to eight STUN servers. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 275 -...

  • Page 276: Settings

    5 … 60 minutes The registration time is the number of minutes that must elapse before the telephone reregisters itself with the VoIP provider. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 276 -...
  • Page 277 The value you enter here should be a compromise between a short timespan (which generates traffic with the provider) and a long re- registration period. Further help under Topology COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 277 -...

  • Page 278: Ldap

    LDAP LDAP Basic Settings LDAP filter COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 278 -...

  • Page 279: Basic Settings

    Switches on the directory service request. Further help under LDAP Server The LDAP server's domain name or IP address Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 279 -...
  • Page 280 Password. Further help under LDAP Search area Point in the folder from which the LDAP search starts. Example: BaseDN dc=auerswald COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 280 -...
  • Page 281 Basic Settings Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 281 -...

  • Page 282: Ldap Filter

    Filter for displaying the suggestions list in dial preparation. Further help under LDAP Max. LDAP contacts Sets the max. number of contacts that the LDAP server is to output. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 282 -...
  • Page 283 LDAP Name format Defines the format in which names are displayed (First name first, Last name first). Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 283 -...
  • Page 284 If "Number search outgoing" is enabled, the display name is searched for via LDAP, for outgoing calls. Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 284 -...

  • Page 285: Telephony

    Telephony Telephony Call signalling Dialled calls Call forwarding Automatic call acceptance COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 285 -...

  • Page 286: Call Signalling

    Do not disturb Rejects calls to the phone. Call Completion The callback is triggered automatically by the PBX. Further help under Call Completion COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 286 -...

  • Page 287: Dialled Calls

    You can use the sliding adjuster to set the number of the seconds that the phone waits before making the automatic call. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 287 -...

  • Page 288: Call Forwarding

    Further help under Call forwarding Call forwarding destination Enter the destination number here. Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 288 -...
  • Page 289 Waiting time before call forwarding Sets the number of the seconds that the phone waits before activating call forwarding. Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 289 -...

  • Page 290: Automatic Call Acceptance

    Active calls are put on hold when InterCom calls are received. Note: For active calls to be interrupted, the Call waiting function must be enabled. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 290 -...
  • Page 291 Automatic call acceptance Further help under Automatic call acceptance COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 291 -...

  • Page 292: Ringtones

    Ringtones Ringtones Ringtones by call type Ringtone management COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 292 -...

  • Page 293: Ringtones By Call Type

    Sound Ringtones by call type List of possible ringtones. Assign a ringtone to a call type here. Further help under Sound COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 293 -...

  • Page 294: Ringtone Management

    Note: Max. permitted file size per file: 5 MB. Further help under Sound Memory utilisation Displays how much memory is occupied by imported ringtones. Further help under Sound COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 294 -...

  • Page 295: Date And Time

    Data on the phone that has a time stamp (such as call history entries, calendar entries and e-mails) is displayed with the correct time. Further help under Date and time COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 295 -...
  • Page 296 12 h: time display in 12-hour format. In addition, the time range AM/PM is displayed. 24 h: time display in 24-hour format. Further help under Date and time COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 296 -...

  • Page 297: User

    User User User administration Settings COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 297 -...

  • Page 298: User Administration

    G. Stores all settings for a user. H. Click on the Edit icon to assign a new password. Displays/hides the currently set password (only in Edit mode). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 298 -...
  • Page 299 User administration J. Adds a new user to the list. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 299 -...

  • Page 300: Settings

    • contain at least one special character • be at least 9 characters long • be different from the user name Further help under Passwords COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 300 -...
  • Page 301 Assigns administrator rights to the user. Note: Administrator rights can only be assigned when a new user is created. Further help under User roles and permissions COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 301 -...

  • Page 302: Backup And Restore

    • Import: Uploads the settings from the selected .xml file to the phone. Further help under Backup and restore COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 302 -...

  • Page 303: Access

    Access Access General settings Phone menu COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 303 -...

  • Page 304: General Settings

    General settings General settings Developer options Action URL Logging COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 304 -...

  • Page 305: Developer Options

    Enables the PC to access the phone via the software interface. You can then use ADB to execute commands on the Android system. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 305 -...

  • Page 306: Action Url

    Further help under Action URL Generate new token Provides a static password for the phone interface. Further help under Action URL COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 306 -...

  • Page 307: Logging

    Enables debug info recording. Note: In some situations, extended logging can have a negative impact on system performance. Further help under Logging COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 307 -...

  • Page 308: Phone Menu

    Filter settings Restricts the specific phone configuration. Note: Only administrators can see this page. Further help under User roles and permissions COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 308 -...

  • Page 309: Using The Phone

    Using the Phone Using the Phone Basic Knowledge Calls Contacts Settings COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 309 -...

  • Page 310: Basic Knowledge

    Basic Knowledge Basic Knowledge Display Notifications Keys and LEDs COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 310 -...

  • Page 311: Display

    Display Display Display overview System icons COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 311 -...

  • Page 312: Display Overview

    Display overview Display overview Home list All call lists Active conversation Putting a conversation on hold Conference call Transfer COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 312 -...

  • Page 313: Home

    Displays the subscriber name, as set inSettings > Identities > Display name J. System icons display: In the areaSettings > Telephonyfunctions have been enabled. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 313 -...

  • Page 314: List

    B. negative:An element is displayed as a negative image in a dark bar if you activate it using the direction keys and you can display a sub-menu by pressing OK COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 314 -...

  • Page 315: All Call Lists

    G. softkeyOutgoing: Lists all outgoing calls, sorted chronologically. H. softkeyMenu:Press this to access the following options for using the selected subscriber number: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 315 -...
  • Page 316 2 seconds. If you want to exit the caller list without dialling a phone number, press Back Details about the settings are in Display COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 316 -...

  • Page 317: Active Conversation

    Active conversation between 2 SUBs A. Status bar B. Connected. C. Identity of called SUB D. Own identity E. End F. Conversation duration COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 317 -...

  • Page 318: Putting A Conversation On Hold

    A. Status bar B. Holding C. Identity of SUB put on hold D. Own identity E. Dial F. End G. Conversation duration COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 318 -...
  • Page 319 E. JoinConnects SUB in call with held SUB F. End G. Duration of call on hold H. Duration of incoming call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 319 -...
  • Page 320 E. JoinConnects SUB in call with held SUB F. Conf. G. End H. Duration of call on hold Duration of active conversation COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 320 -...

  • Page 321: Conference Call

    D. SUB 1 on hold E. Dial F. Join G. Conf. H. End Call duration SUB 2 J. Call duration SUB 1 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 321 -...
  • Page 322 C. Conference call(active) D. Conference call participant 1 E. Conference call participant 2 F. Join G. Split H. End Conference call duration COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 322 -...

  • Page 323: Transfer

    E. Subscriber number of the contact F. Toggle between alphanumeric and numerical entry G. OK H. Scroll bar for navigating the list COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 323 -...

  • Page 324: System Icons

    Call on hold Forwarded call Call Completion Ringing Identity Accepted call Missed call Successful outgoing call Unsuccessful outgoing call Active conference call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 324 -...
  • Page 325 System icons Conference call participant Own device is on hold Own device is being forwarded Identity active Identity inactive Identity not configured COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 325 -...

  • Page 326: Notifications

    A new voice message The mailbox is called and the dialler is displayed. Follow the spoken instructions to find out what to do next. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 326 -...

  • Page 327: Keys And Leds

    Delete, Home and Back Directional pad and OK LED signalling on function keys Casing LED Selecting a Key Level Changing the input mode COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 327 -...

  • Page 328: Keypad

    * ( ) [ ] < = > « » ^ ´ ` ~ { } # % & § £ $ € COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 328 -...

  • Page 329: Dedicated Function Keys

    • LED is shining red: active hedaset call Transfer without LED • You can transfer calls with or without prior notification. minus COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 329 -...
  • Page 330 • LED is shining red: hands-free calling is enabled plus • Increases the volume of the ringer, receiver, or loudspeaker, depending on operational state. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 330 -...

  • Page 331: Function Keys Near The Screen

    Using the function keys you have programmed from the idle state Run functions using the programmed function keys to the right or left of the screen: COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 331 -...
  • Page 332 Press the top or bottom function key on the right of the screen: you jump up or down one screen or scroll through a list/menu quickly. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 332 -...
  • Page 333 When the maximum number of modules has been installed, 105 freely programmable function keys are available. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 333 -...
  • Page 334 Function Keys near the Screen The programmable function keys can each be defined three times (on three levels). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 334 -...

  • Page 335: Soft Keys Below The Display

    D. softkeyDetails:Press this to display more saved phone numbers for a contact. E. →Fav. / →Fav.:Turns a contact into a favourite or favourite into a normal contact. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 335 -...
  • Page 336 D. softkeyOutgoing:Press this to list all outgoing calls by how recent they are. E. softkeyMenu:Press this to access more options for the selected phone number. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 336 -...

  • Page 337: Delete, Home And Back

    Back • Press this to return to the most recently opened menu and end the current action. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 337 -...

  • Page 338: Directional Pad And Ok

    B. negative:An element is displayed as a negative image in a dark bar if you activate it using the direction keys and you can display a sub-menu by pressing OK COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 338 -...

  • Page 339: Led Signalling On Function Keys

    Shining yellow Incorrect identity Call waiting Shining green Function enabled Function key configured, function deactivated Do not disturb Shining red Function enabled COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 339 -...
  • Page 340 Function enabled Function key configured, function deactivated Flashing green Time gap between pressing the function key and acknowledgement by the PBX/provider COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 340 -...
  • Page 341 Relay has been switched (approx. 2 sec.) Group, group (incoming), Shining green Logged into the group group (outgoing) * Logged out of the group COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 341 -...
  • Page 342 PBX/provider, using SIP Subscription Shining yellow Error, function key perhaps not completely configured CF ext. calls: Immediately * Shining green Function enabled COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 342 -...
  • Page 343 Activate config * Shining green Configuration active Configuration inactive From device version COMfortel® D-400 Browser None Calls the set page in the browser COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 343 -...

  • Page 344: Casing Led

    Casing LED The Casing LED indicates the following statuses: • Flashing red (quickly): incoming call • Lit in red: active call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 344 -...

  • Page 345: Selecting A Key Level

    The display content changes according to the selected key level. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 345 -...

  • Page 346: Changing The Input Mode

    If you want to use the keypad to enter data in fields, press and hold (for approx. 2 seconds) to toggle the input mode (abc < > 123) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 346 -...

  • Page 347: Calls

    Calls Calls Navigation Menu COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 347 -...

  • Page 348: Navigation

    Press this to list all missed calls by how recent they are. Outgoing Press this to list all outgoing calls by how recent they are. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 348 -...

  • Page 349: Menu

    Using the Call History in Different Ways 1. Select an entry in the call history. 2. By pressing OK for approximately 2 seconds. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 349 -...
  • Page 350 Menu The options as described are listed. 3. Select any required options. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 350 -...

  • Page 351: Contacts

    Contacts Contacts Navigation Edit Contact COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 351 -...

  • Page 352: Navigation

    This is then added to the appropriate source list (Favourites or Contacts), from which a new contact is added. Details about the settings are in Edit Contact COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 352 -...
  • Page 353 Navigation Further help under Contact COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 353 -...

  • Page 354: Edit Contact

    No.+/Del Nr Adds a phone number to a contact, or removes it from the contact. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 354 -...
  • Page 355 Edit Contact Save Saves the contact settings. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 355 -...

  • Page 356: Settings

    Identities Sound Language and location Display and LED Telephony Function keys Update Using provisioning Access Date and time Contacts/LDAP About phone COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 356 -...

  • Page 357: Network

    Network Network Current Settings IPv4 settings IPv6 Settings VLAN Topology COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 357 -...

  • Page 358: Current Settings

    Current Settings Current Settings The current settings will be shown. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 358 -...

  • Page 359: Ipv4 Settings

    If you select Static: you can enter/change the phone's IP address In the factory settings: 0.0.0.0. Further help under IPv4 Subnet mask Example: 225.255.255.0 Further help under IPv4 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 359 -...
  • Page 360 DNS server. The provider or network system administrator sets the DNS server. Further help under IPv4 DNS 2 Optional Further help under IPv4 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 360 -...

  • Page 361: Ipv6 Settings

    DNS server. The provider or network system administrator sets the DNS server. Further help under IPv6 DNS 2 Optional Further help under IPv6 COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 361 -...

  • Page 362: Vlan

    Enter the PC port's VLAN lD: 1 … 4094 The associated data packets are tagged with this ID. Further help under VLAN COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 362 -...
  • Page 363 VLAN PC port VLAN priority 0 (lowest priority) to 7 (highest priority) Further help under VLAN COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 363 -...

  • Page 364: Vpn

    Your network administrator will give you your user name. Further help under Password Password for the VPN connection. Your network administrator will give you the password. Further help under COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 364 -...

  • Page 365: Topology

    Topology Topology Basic Settings STUN server COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 365 -...

  • Page 366: Basic Settings

    Initial value = 0, prefetch is deactivated. Min. prefetch: Minimum prefetch delay (msec). Default: 60 msec Max. prefetch: Maximum prefetch delay (msec). Default: 240 msec COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 366 -...
  • Page 367 Note: If this function is switched on, parts of the call can seem like breaks in the connection because background noises are cut off sharply. Further help under Topology COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 367 -...

  • Page 368: Stun Server

    Note: If you encounter problems with half-open (dropped) call connections, enabling the RTP port might help. Further help under Topology Time lapse registration (min.) 5 … 60 minutes COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 368 -...
  • Page 369 The value you enter here should be a compromise between a short timespan (which generates traffic with the provider) and a long re- registration period. Further help under Topology COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 369 -...

  • Page 370: Identities

    Identities Identities Managing Identities Basic Settings Options for experts COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 370 -...

  • Page 371: Managing Identities

    If you back up the settings for an identity to a data storage device first, you can restore them if required. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 371 -...

  • Page 372: Basic Settings

    Used to verify the user name. Identical to the password assigned by the VoIP provider when the identity was being created or the password entered in the PBX. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 372 -...
  • Page 373 If you connect to an Auerswald PBX, you do not need to enter the authentication ID. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 373 -...

  • Page 374: Options For Experts

    Options for experts Options for experts Registrar Function codes Audio Security Outbound proxy Fallback for Ringer Tone COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 374 -...

  • Page 375: Registrar

    5 … 60 minutes The registration time is the number of minutes that must elapse before the telephone reregisters itself with the VoIP provider. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 375 -...
  • Page 376 The value you enter here should be a compromise between a short timespan (which generates traffic with the provider) and a long re- registration period. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 376 -...

  • Page 377: Sip

    Note: If very large data packets are present, TCP is used instead of UDP. The maximum size of a data packet can vary according to the network. (RFC 3261 > TCP) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 377 -...
  • Page 378 The device sends exactly one subscription to the PBX/provider. No other subscriptions are sent. • Fixed interval Attempts to subscribe on the PBX/provider are made at the specified interval. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 378 -...
  • Page 379 The set number of seconds doubles after each attempt to register on the PBX/provider. Interval in seconds Sets the time gap between two subscription attempts.Minimum: 1 secDefault: 10 sec COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 379 -...
  • Page 380 Further help under COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 380 -...

  • Page 381: Nat

    • Configured DNS server Active NAT traversal is performed by the telephone. To do this, you must also specify a STUN server. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 381 -...
  • Page 382 Enable the best possible transmission route to be found between the phone and PBX/provider. Note: ICE must only be activated if the other end supports ICE. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 382 -...

  • Page 383: Function Codes

    User anonymous Both the display text and the User name section in the From header is "anonymous". Further help under Anonymous call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 383 -...

  • Page 384: Audio

    Best available compression: G.726, G.729, iLBC Note: Codecs that are assigned multiple times are automatically removed from the list and replaced with---. Further help under Codecs COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 384 -...

  • Page 385: Security

    Switches on negotiation for the encryption of call data via SRTP. When a call is made, the call partner will be asked if encryption is possible. If COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 385 -...
  • Page 386 Note: For each device variant, simply shows whether a certificate is installed and where processing can take place, if relevant. Further help under Identities Further help under Certificate COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 386 -...

  • Page 387: Outbound Proxy

    Port for the outbound proxy. Note: The Port must be filled out if mode Manually is selected. Further help under Outbound proxy COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 387 -...
  • Page 388 Alternative server address for the outbound proxy. Further help under Outbound proxy Alternative port Alternative port for the outbound proxy. Further help under Outbound proxy COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 388 -...

  • Page 389: Fallback For

    Note: A fallback identity can also be created for identities that have not yet been configured. Further help under Fallback identity COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 389 -...

  • Page 390: Ringer Tone

    Ringer Tone Ringer Tone Ringer Tone Assigns a ringtone to the identity. Further help under Sound COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 390 -...

  • Page 391: Sound

    Alert info from the PBX/provider’s SIP Invite. Ringer Tone Assigns a ringtone to the alert info from the PBX/provider’s SIP Invite. Further help under Sound COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 391 -...

  • Page 392: Language And Location

    Further help under Language and location Language web interface Changes the language used on the web interface Further help under Language and location COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 392 -...

  • Page 393: Display And Led

    Further help under Display and LED Seen missed calls Sets the message key LED's reaction to seen missed calls. • LED lights up COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 393 -...
  • Page 394 • LED off The message key LED does not flash and a text message is displayed in the Notifications menu. • Disabled COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 394 -...
  • Page 395 The message key LED does not flash and no text message is displayed in the Notifications menu. Further help under Display and LED COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 395 -...

  • Page 396: Telephony

    Call waiting Audible indication Do not disturb Call forwarding Anonymous call Reverse search Automatic start of call Automatic call acceptance Call Completion COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 396 -...

  • Page 397: Call Waiting

    Call waiting Call waiting Call waiting Indicates an incoming call during a call. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 397 -...

  • Page 398: Audible Indication

    If this option is disabled, incoming calls are only signalled by a change in the display content during a call. Further help under Call waiting COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 398 -...

  • Page 399: Do Not Disturb

    Do not disturb Do not disturb Do not disturb Rejects calls to the phone. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 399 -...

  • Page 400: Call Forwarding

    Forwards incoming calls to the set destination number if these calls have not been taken within a set time. Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 400 -...
  • Page 401 Waiting time before call forwarding Sets the number of the seconds that the phone waits before activating call forwarding. Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 401 -...

  • Page 402: Anonymous Call

    Anonymous call Anonymous call Anonymous call Stops your phone number from being displayed to the person you are calling COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 402 -...

  • Page 403: Reverse Search

    Reverse search For incoming and outbound calls, this option displays the names of saved contacts that are suitable for the phone number. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 403 -...

  • Page 404: Automatic Start Of Call

    You can use the sliding adjuster to set the number of the seconds that the phone waits before making the automatic call. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 404 -...

  • Page 405: Automatic Call Acceptance

    Active calls are put on hold when InterCom calls are received. Note: For active calls to be interrupted, the Call waiting function must be enabled. Further help under Automatic call acceptance COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 405 -...

  • Page 406: Call Completion

    Call Completion Call Completion Call Completion The callback is triggered automatically by the PBX. Further help under Call Completion COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 406 -...

  • Page 407: Function Keys

    Function keys Function keys Managing function keys Edit function keys Edit parameters COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 407 -...

  • Page 408: Managing Function Keys

    Function keys Edit Opens a dialogue in which parameters can be configured for the selected key. Further help under Function keys COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 408 -...

  • Page 409: Edit Function Keys

    Deletes the marked function key in the list. Cancel Closes the menu without adopting changes. Save Saves the entered parameters and close the window. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 409 -...

  • Page 410: Edit Parameters

    Call forwarding ext. calls: On busy Call forwarding ext. calls: On no reply Call forwarding ext. calls: Immediately XML Minibrowser Automatic configuration switching COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 410 -...

  • Page 411: Speed Dial

    Note: Pickup should not be used if the key is only used to switch functions in the PBX using a programming code. Deactivate Pickup in that case. Further help under Pick-Up COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 411 -...
  • Page 412 If this function is enabled, missed calls associated with the speed dial number are signalled with flashing green LEDs. Further help under Speed dial COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 412 -...

  • Page 413: Identity

    Identity Identity Identity Identity used to trigger subsequent calls. Further help under Identities COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 413 -...

  • Page 414: Call Waiting

    Call waiting Call waiting No parameters necessary. Further help under Call waiting COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 414 -...

  • Page 415: Do Not Disturb

    Do not disturb Identity Identity for which this function is set up. Further help under Identities Further help under Do not disturb COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 415 -...

  • Page 416: Dtmf-Relay

    DTMF-Relay DTMF-Relay DTMF sequence Numbers needed to perform the required function. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 416 -...

  • Page 417: Group

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 417 -...

  • Page 418: Group (Incoming)

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 418 -...

  • Page 419: Group (Outgoing)

    Identity for which this function is set up. Further help under Identities Group Group telephone number Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 419 -...

  • Page 420: Activate Config

    Identity for which this function is set up. Further help under Identities Configuration id The PBX assigns the configuration ID automatically. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 420 -...

  • Page 421: Anonymous Call

    Anonymous call Anonymous call No parameters necessary. Further help under Anonymous call COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 421 -...

  • Page 422: Call Forwarding On Busy

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 422 -...

  • Page 423: Call Forwarding On No Reply

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 423 -...

  • Page 424: Call Forwarding Immediately

    Note: Only assign the Identity parameter if PBX function templates are used. Further help under Function templates Destination Call forwarding destination Further help under Call forwarding COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 424 -...

  • Page 425: Call Forwarding Ext. Calls: On Busy

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 425 -...

  • Page 426: Call Forwarding Ext. Calls: On No Reply

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 426 -...

  • Page 427: Call Forwarding Ext. Calls: Immediately

    PTP connection:Header plus extension for which call forwarding is to be performed. Destination Call forwarding destination Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 427 -...

  • Page 428: Vpn

    No parameters necessary. Further help under Network COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 428 -...

  • Page 429: Xml Minibrowser

    XML Minibrowser XML Minibrowser Number/URI Web server address Further help under XML Minibrowser COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 429 -...

  • Page 430: Automatic Configuration Switching

    Identification number for system relay with Automatic configuration switchover operating mode (900, in the factory settings). Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 430 -...

  • Page 431: Update

    Restarts the telephone. Caution: This interrupts all connections, all calls and data services. Unsaved data is lost! Further help under Update COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 431 -...
  • Page 432 Resets the telephone to the factory settings. Any saved data and settings are deleted. The phone is shut down and then restarted. Further help under Reset to default COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 432 -...

  • Page 433: Using Provisioning

    Using provisioning Provisioning from PBX search Automatic provisioning of the phone is performed via the PBX. Further help under Using provisioning COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 433 -...
  • Page 434 Using provisioning Vendor templates Activates templates and scripts that are specially designed to run on Auerswald/FONtevo PBXs. Further help under Function templates COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 434 -...

  • Page 435: Access

    Displays the password entry/modification dialogue for the web interface. Note: When you define the password, comply with the conventions for secure passwords. Further help under Passwords COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 435 -...
  • Page 436 Action URL Action URL server Required to send events. No entry required if only commands are received. Further help under Action URL COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 436 -...

  • Page 437: Date And Time

    Data on the phone that has a time stamp (such as call history entries, calendar entries and e-mails) is displayed with the correct time. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 437 -...
  • Page 438 Date and time Further help under Date and time COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 438 -...

  • Page 439: Contacts/Ldap

    LDAP Name format Defines the format in which names are displayed (First name first, Last name first). Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 439 -...
  • Page 440 If "Number search outgoing" is enabled, the display name is searched for via LDAP, for outgoing calls. Further help under LDAP COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 440 -...

  • Page 441: About Phone

    Displays the build number of the software version installed on the device. MAC address Displays your device's physical address on the network. Android version Displays the Android version installed on your device. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 441 -...
  • Page 442 • End User License Agreement • Data protection • Open source licenses • Android licenses • Webclient licenses Further help under Device Information COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 442 -...

  • Page 443: Glossary

    Glossary Glossary Technical Terms and Functions Abbreviations COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 443 -...

  • Page 444: Technical Terms And Functions

    Domain Downdate DTMF End device Ethernet Firewall Firmware Frame size Gateway HOST HTTP IMAP IP address Ipsec IPv4 IPv6 jitter buffer COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 444 -...
  • Page 445 Port Prefetch Using provisioning Redirect Server Registrar router Rubber cover Server SIP port SIPS SLAAC SMTP server STUN Subnet mask Switch COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 445 -...
  • Page 446 Technical Terms and Functions Update update server VLAN VoIP VoIP account VoIP address VoIP provider COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 446 -...

  • Page 447: Account

    Authorisation to access a VoIP provider or a VoIP PBX. Users must identify themselves by logging in with a username and a password. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 447 -...

  • Page 448: Browser

    Browser Browser Special software to display websites from the Internet. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 448 -...

  • Page 449: Call Deflection

    Deflection has been activated, the called subscriber can deflect the call on a case-to-case basis while the telephone is still ringing. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 449 -...

  • Page 450: Certificate

    Certificate Digital key issued by a Certification Authority (CA) to ensure the authentication and secure transmission of e-mails, web sites, etc. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 450 -...

  • Page 451: Client

    Client Client Piece of computer hardware or software that accesses a service made available by a server. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 451 -...

  • Page 452: Codec

    The equality of VoIP calls is dependent on the codec used. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 452 -...

  • Page 453: Dhcp

    COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 453 -...

  • Page 454: Dial Preparation

    Dial preparation Dial preparation Dialling of a number before a call is initiated by lifting the receiver. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 454 -...

  • Page 455: Dns

    IP address. This service is provided by DNS servers at the various Internet service providers or by upper domain servers. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 455 -...

  • Page 456: Domain

    “www“), second-level domain (e. b. “auerswald“) and top-level domain (e. g. the country code “uk“). The domain is part of the URL. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 456 -...

  • Page 457: Downdate

    Downdate Downdate Reset of the telephone to the previous firmware version. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 457 -...

  • Page 458: Dtmf

    Dual Tone Multi Frequency dialling – dialling method that transmits the dialled number to the exchange as two superimposed sinusoidal signals. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 458 -...

  • Page 459: Ehs

    Additional features can be implemented, depending on product. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 459 -...

  • Page 460: End Device

    Device that can be operated on a communication network or on a PBX, e. g. telephone, fax machine, answering machine, ISDN PC controller, etc. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 460 -...

  • Page 461: Ethernet

    Ethernet Ethernet Network system with a speed of 10/100/1000 Mbit/s developed by the companies INTEL, DEC and Xerox. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 461 -...

  • Page 462: Firewall

    Network security component that uses a set of security rules to protect a computer network or an individual computer against unauthorised access to or from the network. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 462 -...

  • Page 463: Firmware

    Firmware Operating software on the telephone or PBX that is stored in the device itself. The device cannot function without firmware. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 463 -...

  • Page 464: Frame Size

    Frame size Frame size Sets the RTP packet size (msec Audio/RTP package). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 464 -...

  • Page 465: Gateway

    Internet service provider is the gateway for direct Internet dial-up connections. If you use a router, this is the gateway in a local network. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 465 -...

  • Page 466: Host

    Component of a data processing system that manages larger application programs and data volumes and makes them available to lower-order servers and clients. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 466 -...

  • Page 467: Http

    HTTP HTTP Hypertext Transfer Protocol Secure – communication protocol for tap- proof data transfer with encryption within the World Wide Web. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 467 -...

  • Page 468: Ice

    NATs and firewalls makes it difficult for them to do so. ICE uses the STUN (Session Traversal Utilities for NAT)- and TURN (Traversal Using Relays Around NAT) protocols to establish a connection. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 468 -...

  • Page 469: Imap

    PC, so that they cannot be lost due to a failure of the client PC). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 469 -...

  • Page 470: Ip Address

    Unique numerical address within a TCP/IP network that is assigned to one device and ensures that data packages reach the correct recipient. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 470 -...

  • Page 471: Ipsec

    Ipsec Ipsec The telephone uses the IPsec protocol to transport IP packages cryptographically secured via public networks. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 471 -...

  • Page 472: Ipv4

    Internet, none of the data on the computers in the local network can leak out or be accessed externally. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 472 -...

  • Page 473: Ipv6

    Thanks to the longer address format, IPv6 offers a greater number of possible IP addresses than the Internet Protocol Version 4 (IPv4). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 473 -...

  • Page 474: Jitter Buffer

    Buffers RTP packages, to compensate irregular transfer rates of the Internet. A high jitter buffer reduces short interruptions during the call. In return the delay of the RTP packages increases. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 474 -...

  • Page 475: Ldap

    Lightweight Directory Access Protocol – protocol that enables you to query the data in a directory service (a hierarchical database) over the network. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 475 -...

  • Page 476: Led

    Light emitting diode - electronic device similar to a lamp and used for displays (also multi-coloured). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 476 -...

  • Page 477: Mac

    The IP addresses on the TCP/ IP network are always mapped to the respective MAC address. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 477 -...

  • Page 478: Nat

    IP address used by another network. This function is e.g. performed by a router which connects a local area network to the Internet. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 478 -...

  • Page 479: Nat Traversal

    NAT traversal NAT traversal Method to establish and hold communication connections that allows IPsec-encrypted data packets to pass trough NAT transition points. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 479 -...

  • Page 480: Ntp

    If a local NTP server is available in a local network, it can be selected, or a public NTP server from a public list on the Internet can be used. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 480 -...

  • Page 481: Open Source Licenses

    Software license acknowledged by the Open Source Initiative (OSI). Open-source licenses are the basis of free-of-charge applications whose programming code may be modified without restrictions. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 481 -...

  • Page 482: Poe

    VoIP telephones, receive both power and data via an Ethernet cable. Benefit: Fewer obtrusive power cables are required. PoE is described in the IEEE 802.3af standard. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 482 -...

  • Page 483: Pop3

    POP3 POP3 Post Office Protocol, version 3 – ASCII protocol to download e-mails from a server. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 483 -...

  • Page 484: Port

    Outgoing connections are usually established starting at Port 1024. Most services that use the standard port numbers (for example, web browsers use port 80). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 484 -...

  • Page 485: Prefetch

    The loading of memory contents before a requirement for them has become obvious. When the requirement actually occurs, this enables a faster access speed to be achieved. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 485 -...

  • Page 486: Using Provisioning

    Using provisioning Using provisioning Automatded configuration of one or more telephone(s) from a provisioning server. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 486 -...

  • Page 487: Redirect Server

    The originator can then send a new request to the alternative address. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 487 -...

  • Page 488: Registrar

    URL set by the VoIP provider on the IP address on which the registering PBX can be accessed. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 488 -...

  • Page 489: Router

    Internet and to enable simultaneous Internet access for multiple users. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 489 -...

  • Page 490: Rtp

    1 to 20% is acceptable, depending on the codec in use. RTP does not guarantee the service quality of the data transfer. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 490 -...

  • Page 491: Rubber Cover

    Rubber cover Rubber cover Rubber cover which must be removed before the key extension module can be mounted. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 491 -...

  • Page 492: Spl

    Secondary Program Loader: a simplified version of the Bootloader for initial hardware configuration. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 492 -...

  • Page 493: Server

    Computer or software that performs different tasks as part of a network and, for example, provides other users (clients) of this network with specific information, data or services. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 493 -...

  • Page 494: Sip

    SIP is only used to negotiate the communication conditions. Other protocols such as RTP are responsible for actual data transfer. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 494 -...

  • Page 495: Sip Port

    SIP port SIP port Port of the local system used as the communication port for the SIP transfer. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 495 -...

  • Page 496: Sips

    The processes used to set up and shut down a connection, and signalling, are all encrypted by SIPS. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 496 -...

  • Page 497: Slaac

    IPv4. IPv6 routers have an active role, unlike those in IPv4. IPv6 offers the same convenience as operating a very simple DHCP server. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 497 -...

  • Page 498: Smtp Server

    SMTP server (outgoing mail server) to send system e- mails or forward voice mail messages and fax messages. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 498 -...

  • Page 499: Stun

    Internet connection. To do this, a STUN request is sent to a STUN server, which then shares its own IP address allocated by the VoIP provider with the Internet connection. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 499 -...

  • Page 500: Subnet Mask

    The value of the subnet mask, as with IP addresses, is often given in decimal form (for example, 255.255.255.0 for IPv4 addresses). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 500 -...

  • Page 501: Switch

    Active network distributor that distributes data packages to a destination defined by an IP address among the different segments of a network. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 501 -...

  • Page 502: Tcp

    To ensure this happens, a large amount of information is sent along with the actual payload data. Most Internet services are implemented with TCP, e.g., HTTP (WWW), SMTP/POPS (e-mail), etc. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 502 -...

  • Page 503: Tls

    Layer Security – protocol for the encryption and secure transmission of data on the Internet. TLS is often used to protect http connections, e. g. for commercial transactions (https). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 503 -...

  • Page 504: Udp

    LAN. UDP is used, e.g., for the DNS (Domain Name Server). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 504 -...

  • Page 505: Update

    Installation of a new firmware version to integrate new features and to solve possible problems. Previous settings of the device remain unchanged. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 505 -...

  • Page 506: Update Server

    Server that provides up-to-date data, e. g. firmware files, provider profiles, etc., for downloading to a telephone. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 506 -...

  • Page 507: Uri

    • the specific computer on which the resource is present • the specific name of the resource (or the file name) on the computer COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 507 -...

  • Page 508: Url

    Uniform Source Locator – complete address of a resource (e. g. a website), consisting of a scheme (e. g. „http://“) and a scheme-specific part (e. g. domain „www.auerswald.de/“ and path „en/products/pbx/home- office.html...“). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 508 -...

  • Page 509: Vlan

    Among other things, a VLAN can be used to keep IP telephony separate from normal network traffic, at network level. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 509 -...

  • Page 510: Voip

    The transmission quality and the reliability of Voice over IP depends to a great extent on the quality of the Internet connection used. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 510 -...

  • Page 511: Voip Account

    Internet, and also an account with a username and password. The registered connection usually becomes active within a few minutes and can be used very soon after that. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 511 -...

  • Page 512: Voip Address

    VoIP address VoIP address VoIP telephone number plus domain, separated by the @ character: <subscriber>@domain. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 512 -...

  • Page 513: Voip Provider

    VoIP provider VoIP provider Internet service provider offering internet telephony (VoIP, Voice over Internet Protocol). COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 513 -...

  • Page 514: Vpn

    (LAN) into your own network via a VPN tunnel. The tunnel serves as a shell in which the data is embedded and transported from one network to the other. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 514 -...

  • Page 515: Xml

    A Document Type Definition (DTD) describes the structure and grammar used in documents. It is an XML system component and is enabled by default. COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 515 -...

  • Page 516: Abbreviations

    HTTP Hypertext Transfer Protocol Hypertext transmission protocol IMAP Internet Message Access Protocol Enables online access to an e-mail inbox (live access) COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 516 -...
  • Page 517 Private PBX Power over Ethernet POP3 Post Office Protocol, Version 3 Real-Time Transport Protocol Session Initiation Protocol SIPS Session Initiation Protocol Secure COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 517 -...
  • Page 518 Uniform Resource Pointer Universal Serial Bus VLAN Virtual Local Area Network Voice Mailbox voice mailbox VoIP Voice over Internet Protocol Virtual Private Network COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 518 -...
  • Page 519 Abbreviations Extensible Markup Language COMfortel D-100 / D-110 / D-200 / D-210 - Firmware V2.0 - Advanced Information V07 12/2021 - 519 -...

This manual is also suitable for:

Comfortel d-110Comfortel d-200Comfortel d-210

Table of Contents
