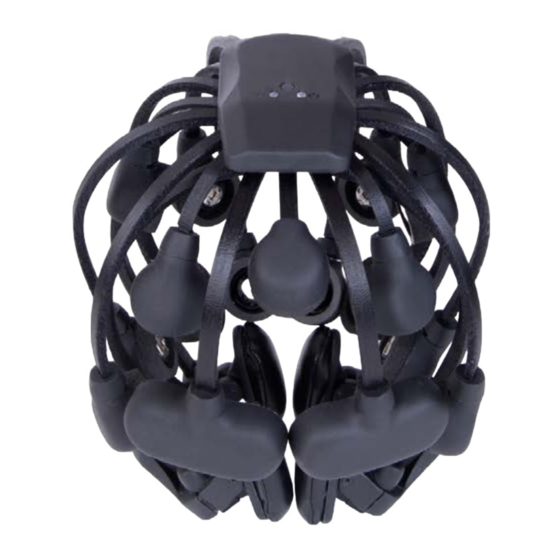

Dry eeg headset
Hide thumbs Also See for QUICK-20:

Advertisement

Quick Links

! " #$% " $% & '
Q
-20 D
EEG H
UICK
RY
EADSET
U
G
SER
UIDE
Cognionics, Inc.
8445 Camino Santa Fe
Suite 205
San Diego, CA 92121

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUICK-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cognionics QUICK-20

  • Page 1 ! " #$% " $% & ' -20 D EEG H UICK EADSET UIDE Cognionics, Inc. 8445 Camino Santa Fe Suite 205 San Diego, CA 92121...
  • Page 2: Table Of Contents

    1 About the Manual 2 Standard Package Contents 3 About the Quick-20 3.1 Parts of the Headset ..... . .
  • Page 3 7 Recording 7.1 Using the Cognionics Data Acquisition Software ..7.2 Using the SD Card ......
  • Page 4: About The Manual

    Please read through the entire manual first to familiarize yourself with the operation of your headset before proceeding with your first recording. Note: The Quick-20 is for investigational use only. It is not a FDA-approved medical device.
  • Page 6: Standard Package Contents

    CHAPTER Standard Package Contents Your Quick-20 kit includes all of the necessary components for conducting dry EEG recordings: 1. Quick-20 Headset - The dry EEG headset containing the amplifier and wireless transmitter. 2. Bluetooth Dongle - Each Quick-20 is paired to a dedicated high- reliability, high-speed reciever dongle which plugs into your computer’s...
  • Page 7 2. St andar d Pack age Cont ent s 9. Electric Cleaning Brush - Motorized brush for cleaning the Quick-20 Headset. 10. Hand Sanitizer - Fluid for use with the cleaning brush. Depending on your specific configuration, you may have also received ad- ditional components such as our Wireless Trigger or Auxiliary Input Module.
  • Page 8 Flex Sensors Dryp ad Sensors Bluetooth Dongle microSD card Quick- 20 Headset with Ad ap ter Ear Clip Wire Rechargeab le Li- ion Purell Hand Sanitizer Electric Brush Batteries with Charger Standard Quick-20 Kit Components...
  • Page 10: About The Quick-20

    4. Trigger LED - Indicator of trigger link status. See picture for description of LED color codes. 5. flexible Leg - The Quick-20 uses an array of flexible legs to conform to di" erent head sizes and shapes. 6. Sensor Pod - Each sensor pod is capable of swiveling to match the...
  • Page 11 7. Sensor Connector - Sensors are attached via a miniature snap connector. 8. Accessory Connector - The Quick-20 has a port for attaching an Auxil- iary Input Module for external sensors. The port can also be used with the wired data dongle.
  • Page 12 3.1. Parts of the Headset Trigger Status LED Power LED Connector for + Bl u e Di m – Tri g g er i n ran g e Green – On Bl u e Fl ash – New m ark er recei ved Bl i n k –...
  • Page 13 3. A bout t he Quick -20 Power But t on Flex ible Leg Sensor Connect or Sensor Pod Ear Pad Ear Clip Connect or Bat t ery Cover...
  • Page 14: Sensor Layout

    3.2. Sensor Layout 3.2 Sensor Layout The Quick-20 follows the international 10-20 layout with a total of 23 electrode positions (20-channels plus reference plus 2 grounds). The common reference is located at A1 via the ear clip. Two grounds, for redundancy, are located adjacent to the Fp1 and Fp2 positions.
  • Page 15: Specifications

    0.7 µV RMS from 1-50 Hz, shorted inputs Wireless Custom high-speed Bluetooth Power Lithium-ion, 8 hr wireless, 16 hr microSD Triggering Cognionics wireless trigger Weight 450 g with batteries Note: specifications subject to change depending on model revisions and requested customizations.
  • Page 16: Care And Handling

    CHAPTER Care and Handling The Quick-20 is designed to be a robust, durable headset suitable for use in real-world environments. To keep your Quick-20 functioning optimally, take note of the following items: • Avoid excessively bending the legs or earband - The Quick-20 relies on the flexibility of the leg material to deflect and conform across the...
  • Page 17 4. Car e and Handl ing that apply pressure to the legs since long-term compression may cause the headset to deform. If the legs of the headset become compressed, the system may become tight and uncomfortable for the subject. • Do not pull on the ear clip wire - When removing the ear clip from the headset, grasp the base of the connector, rather than the wire.
  • Page 18: Preparing The Headset

    Make sure the batteries are fully charged. Place the provided lithium-ion batteries into the charger and wait until the charger indicates that the battery is full. The Quick-20 features dual hot-swappable batteries on each earpad. The device will function with a battery in either, or both, compartments. If both batteries are inserted, the right hand side battery will be used to recharge the left side battery.
  • Page 19 5. Pr epar ing t he Headset (a) Open the battery cover. (b) Insert one lithium-ion battery. Make sure that the battery is inserted in the correct orientation. The metal contacts on the battery should be oriented towards the top of the headset.
  • Page 20: Installing The Sensors

    5.2. Installing the Sensors 5.2 Installing the Sensors Insert flex sensors for areas that are covered by hair. On most subjects, this is all positions except for Fp1, Fp2, F7 and F8. (a) Grasp the sensor and (b) push down on the center of the sensor into the receptacle. For areas with light or no hair, insert drypad sensors.
  • Page 21 5. Pr epar ing t he Headset (a) Grab the two supplied ear clip wires. Pinch the ear clip to expose the snap connector and (b) insert a drypad sensor, if one is not already installed. (a) Grab the connector end of the ear clip wire. (b) Firmly insert the connector into the jacks at the base of each ear band.
  • Page 22: Starting The Acquisition Software

    If you are using Neuroguide, please refer to the Neuroguide documentation (http:/ / www.appliedneuroscience.com/ Tutorials.htm) to con- nect to the Quick-20, perform an impedance check and start recording EEG data. (a) Retrieve the Bluetooth Dongle and (b) insert it into your computer’s USB port.
  • Page 23 Quick-20 under ’Discovered Devices’. If you do not, please remove and re-insert the dongle, then restart the software. Select your Quick-20 and click on the ’Connect’ button. You should see a small pop-up window asking if you wish to auto-configure. Click ’Yes’. If you do not see the pop-up, check beneath the main window of the software.
  • Page 24: Applying The Headset And Optimizing Sensor Contact

    Sensor Contact 6.1 Placing the Headset The Quick-20 is designed to be easily self-applied. However, we recommend that you first practice on another subject to familiarize yourself with the procedure. If you are attempting to self-apply the system, please have a mirror handy to help with the process.
  • Page 25 6. A ppl y ing t he Headset and Opt imizing Sensor Cont act (a) Grasp each ear band and pull them gently apart to open the Quick-20 and slide the system on to the subject’s head. Adjust the position of the headset so that the ear cups fit around the subject’s ears.
  • Page 26 (b) Example of pod that is tilted. Grasp and rotate the pod so that the sensor is normal to the subject’s head. (a) Push the Quick-20 fully onto the subject’s head such that the crown (Cz) is touching the subject’s head. (b) Some of the sensor pods may be rotated in the incorrect position during the application process.
  • Page 27 6. A ppl y ing t he Headset and Opt imizing Sensor Cont act (a) Lift the ear cup to access the ear lobe and pinch open the ear clip. (b) Place the ear clip on the earlobe of the subject. If the subject’s earlobe is too small for the drypad, you can alternatively place the drypad of ear clip on the back of the ear.
  • Page 28 Ensure that the Quick-20 is not tilted too far towards the back of the head. Check again to see that all of the legs and pods are not tilted or misaligned before proceeding to the next steps.
  • Page 29: Optimizing Sensor Contact

    After properly positioning the headset on the subject, the next step is to obtain su# cient contact on all sensors before proceeding with the EEG recording. For this step, you will need to bring up the impedance check in the Cognionics Data Acquisition software under the Channels tab. The impedance check presents a color coded map of the sensors in the headset.
  • Page 30 6.2. Optimizing Sensor Contact (a) First gently push down on the headset until (b) the Cz position (circled) reports adequate contact. If necessary, adjust the length of the ear bands to keep the headset and Cz in contact with the subject’s head. It is very important that the headset is seated properly in the correct position and that all of the legs and pods are correctly aligned with the subject’s head before pushing down.
  • Page 31 6. A ppl y ing t he Headset and Opt imizing Sensor Cont act For each location that does not have su# cient contact, (a) grasp and lift the pod slightly. If the subject has dense hair, move aside the hair directly underneath the sensor pod.
  • Page 32 6.2. Optimizing Sensor Contact If any sensor locations are particularly di# cult, you can apply a small amount of hand sanitizing liquid to help improve contact quality. (a) Dispense enough liquid to form a thin layer on your finger. (b) Transfer the liquid only to the tips on the sensor.
  • Page 34: Recording

    CHAPTER Recording 7.1 Using the Cognionics Data Acquisition Software After you have successfully made all the positions reach an acceptable impedance level, under the Device tab, click Record to begin your recording. To end the recording, under the same tab, click Stop Recording.
  • Page 36: Removal, Cleaning And Storage

    The Quick-20 can be rapidly removed from the subject. Disconnect the ear clips from the subject’s earlobes. Grasp sides the of the Quick-20 with two hands and lift up. On subjects with thick hair, be gentle as the hair may become entangled with the sensors.
  • Page 37: Removing And Cleaning The Sensors

    8. Removal , Cl eaning and St or age (a) Dispense a small amount of hand sanitizer or 70 percent isopropyl onto the supplied electric brush. Use just enough liquid to moisten the brush. (b) Apply the brush over the surfaces of the headset. 8.3 Removing and Cleaning the Sensors During normal use and cleaning, the sensors can be left installed to minimize downtime.
  • Page 38: Storage

    finger. (b) Do not grab and pull at the tips of the flex sensor. 8.4 Storage The Quick-20 should be placed either upside down, with the top of the headset resting on a table top, or on it’s side resting on the earpad. When transporting the headset, please use the supplied carrying case.
  • Page 40: Troubleshooting

    flashes blue. 9.2 Power • T he Quick-20 does not power on - Double check to make sure that a fully charged battery is inserted in the correct orientation. • T he Quick-20 powers on but quickly shuts o! - Make sure the battery is fully charge.
  • Page 41: Signal Quality

    Close and restart the Cognionics Acquisition Software. • T he auto-configure windows does not appear, data does not start streaming - Check to see that the Quick-20 is powered on. Make sure that the microSD card is not inserted. In microSD mode, the Quick-20 turns o"...
