Summary of Contents for Bunya Kids 3 Metre Climbing Dome

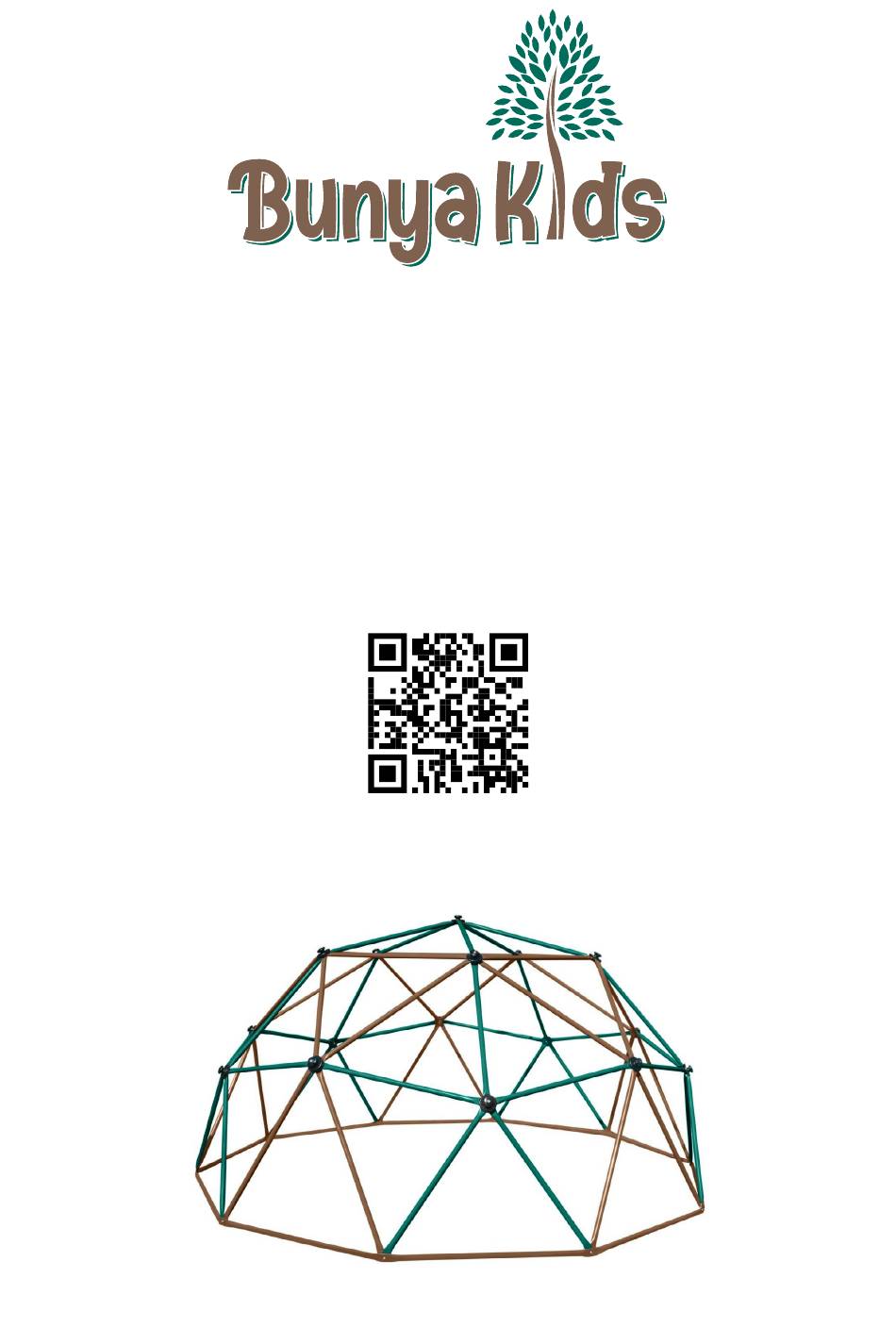

- Page 1 3 Metre Climbing Dome Assembly Instructions For more assembly tips and hints scan the QR code below or visit bunyakids.com.au/assembly...
-
Page 2: Safety Information
SAFETY INFORMATION READ BEFORE ASSEMBLY Site Preparation • Do not install over any hard surface. A fall onto a hard surface can result in serious injury or death. • Select a level and well-drained location, at least 2 metres from any structure or obstruction such as a fence, shed, house, overhanging branches, clothes line, or electrical wires. -
Page 3: Parts And Tools
Parts & Tools Before assembly, check that you have the required quantity of each part (spares may be included). If you cannot locate all parts, visit bunyakids.com.au/assembly for assistance. Part # Part Description Quantity Required Green Pole (Short) Brown Pole (Long) Hand Hold Long Bolt Short Bolt... - Page 4 Assembly Step Find a soft level surface for assembly (such as grass / mulch / bark chips), the larger the area the better. Avoid assembling on hard surfaces such as brick / concrete as this may scratch the paint of the climbing dome. Take 2x green poles and 4x brown poles and lay them out as shown below.
-
Page 5: Assembly Step
Assembly Step Attach a brown pole to the bottom of each star. NOTE: The bottom of the star is poles 1 & 6, the innermost and outermost poles - see image on page 4. Parts Required: 1x brown pole , 2x short bolts 4x washers and 2x locking nuts Place 1 washer... - Page 6 Assembly Step You are going to create a green star with 5 green poles between the two already assembled 6 pole stars standing. This star utilises the 3 green poles already in place (poles 2,3 and 4 below) and 2 new green poles (poles 1 and 5 below). Take two more green poles Take one long bolt , one washer...
- Page 7 Assembly Step Take a new brown pole, this will be used as a bottom pole. Undo the locking nut and inside washer. Remove the short bolt from the bottom joint. It is helpful to have an assistant support the structure whilst you do this .
- Page 8 Assembly Step Move yourself and all the remaining poles and hardware inside the dome to complete the build. At one of the uppermost joints, undo the nut and slide the top brown pole (this should be on your right when you are facing outwards pole1 - left image below) off of the long bolt. Take two new brown poles and one new green pole Again, working in an anti-clockwise direction stack the new poles onto the long bolt.
- Page 9 Assembly Step Take 1 x long bolt , 1 x washer and 1 x regular nut In an anti-clockwise direction, stack the poles onto the long bolt in the same order as the image to the right. Thread the regular nut onto the end of the long bolt, completing the joint.
-
Page 10: Maintenance
Repeat across each joint, tightening each hold using the supplied allen key ensuring the notch under the hold remains correctly orientated. You’re all done! Congratulations on completing your Bunya Kids climbing dome! If you Require any further assistance please visit bunyakids.com.au/assembly for support and further hints and tips.
