LIFTAIRE II ELEVATOR
THE LATEST IN A SERIES OF AIR CONDITIONERS/HEATERS
1976D298 (8-07) PP
AIR CONDITIONER
DESIGNED SPECIFICALLY FOR USE IN ELEVATORS.
Airxcel™, the maker of the #1 brand of air conditioners in the recreational vehicle
industry, has incorporated its unique experience and small air conditioner technology into
building an elevator air conditioner/heater that is now in operation in over 20 countries
and 100 cities around the world.
The LiftAire™ II Elevator Air Conditioner is the only cost-efficient alternative for first
class comfort control in today's elevators. The lightweight, packaged unit mounts on top
of the elevator and is supplied with a kit that includes everything you need for installation.

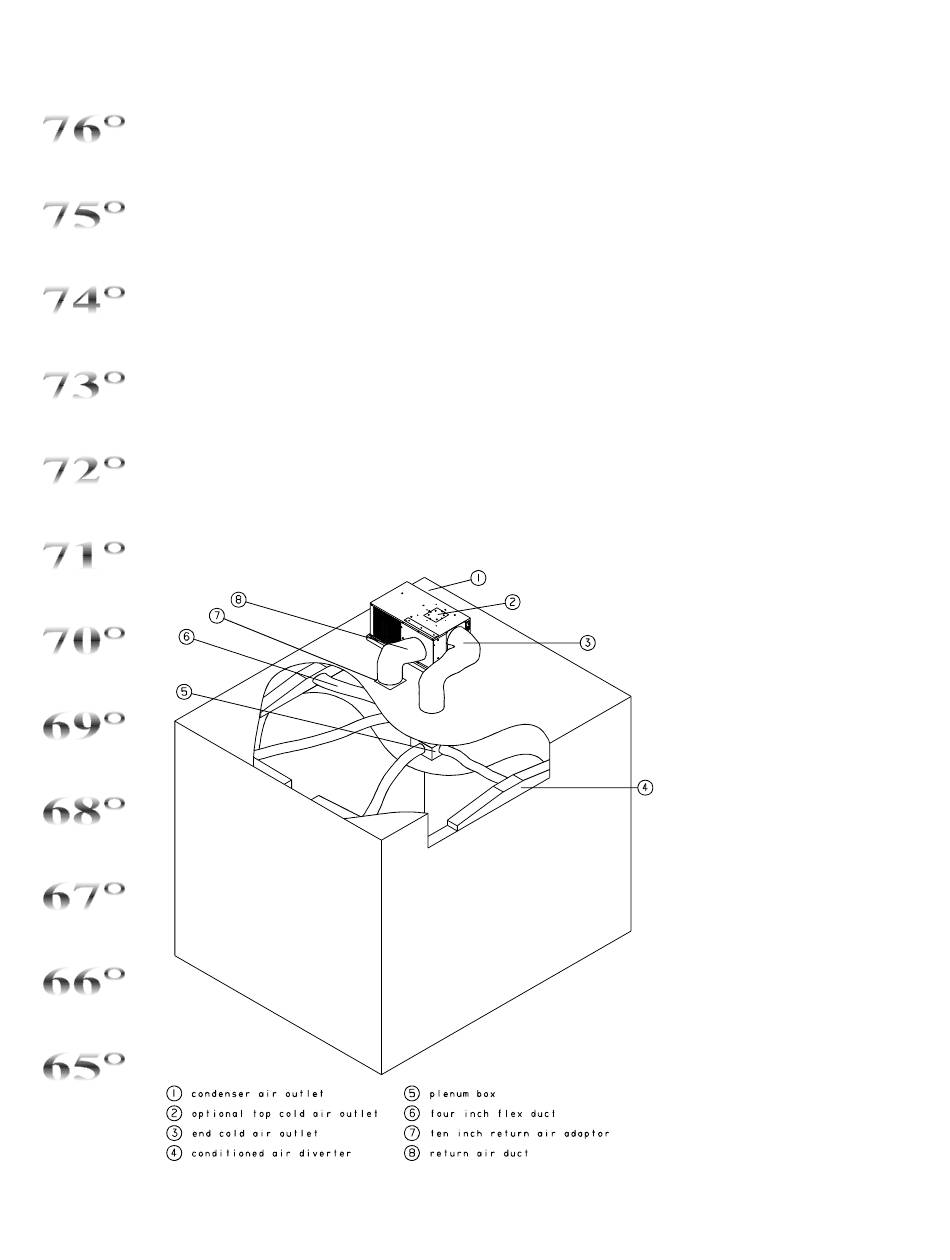

During operation, supply air is delivered in a cross-flow pattern from the top of the
elevator, down to the floor and back up to the ceiling mounted return air duct.
In one easily installed
package, the LiftAire™ II
Elevator Air Conditioner
provides comfort,
environmental compliance and
cost efficiency with
engineered features that
include an adjustable
thermostat mounted inside the
return air flex duct,
construction that limits
vibration and a lightweight,
compact rotary compressor.
By the way, did we mention
the LiftAire™ II Elevator Air
Conditioner also has a high
efficiency heater engineered,
prewired and mounted for
year-round comfort, at no
additional charge!
