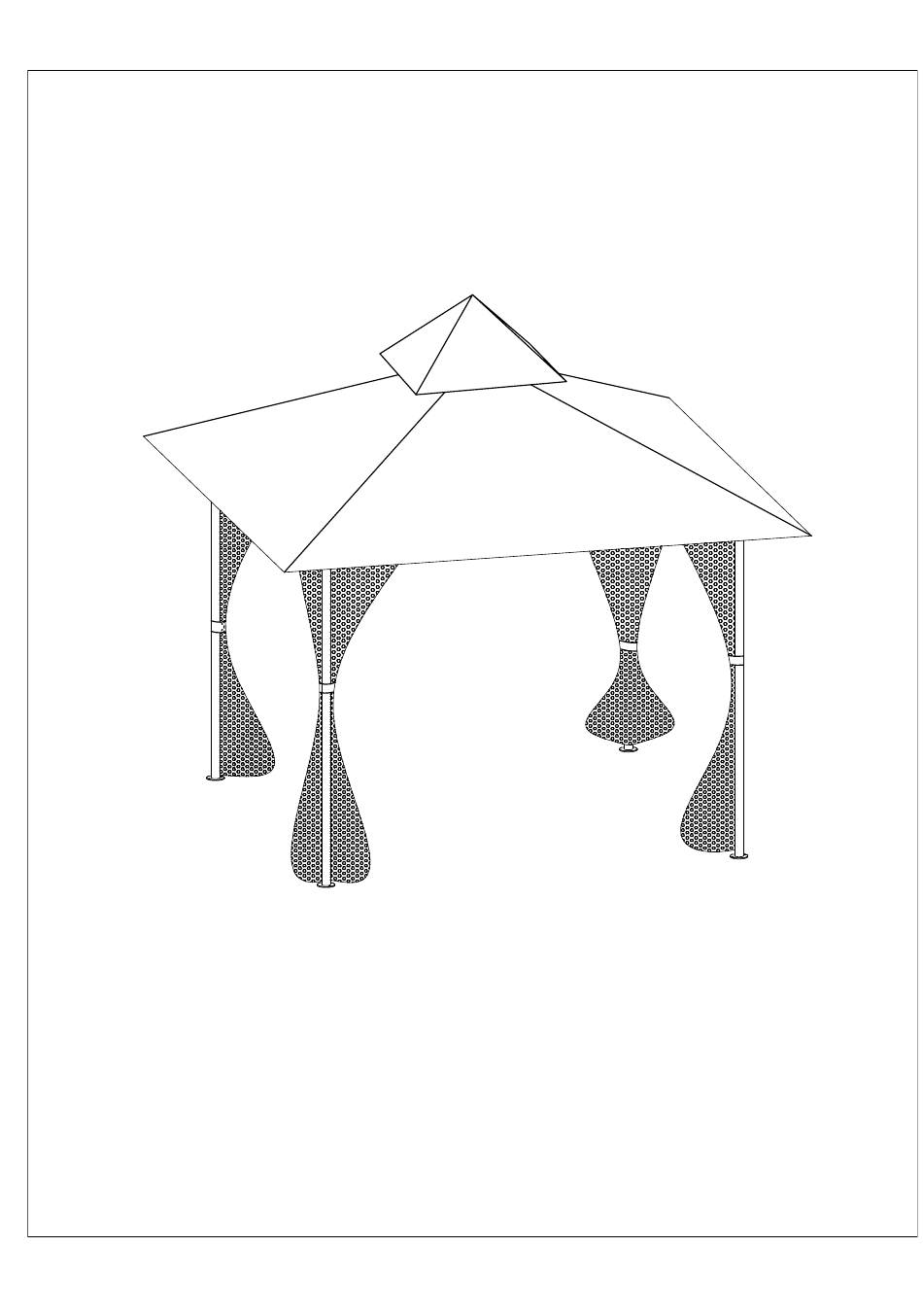

ASSEMBLY INSTRUCTIONS
Item No.:PT0248A2S
10 x 10 ft Gazebo
Thank you for your purchase!
We are pleased that you have chosen StarEcho for your outdoor gazebo purchase.
We hope that you enjoy the unmatched quality, comfort, and style of your new patio
item. Every piece is meticulously considered all the way down to the smallest details,
exclusively for you, by our world class design team. We know you have a choice when
it comes to your patio gazebo needs, so from our team to yours, thank you for letting
us be a part of your outdoors.
Made in China
Advertisement
Related Manuals for StarEcho PT0248A2S
Summary of Contents for StarEcho PT0248A2S
- Page 1 10 x 10 ft Gazebo Thank you for your purchase! We are pleased that you have chosen StarEcho for your outdoor gazebo purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio item. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team.
- Page 2 SAFE INFORMATIONS WARNING: When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all instructions before assembly and usage. Some parts may contain sharp edges, wear protective gloves if necessary. ...
-
Page 3: Parts List
Parts List Short Upper Post Extension tube Lower Post Connector Cross beam Canopy Small Cross beam Canopy Upper Top Mosquito Slant Bar Netting Lower Top Screw Slant Bar Middle Top Bar Stake Lower Middle Ring Top bar Extension Tube Two person... -
Page 4: Assembly Steps
ASSEMBLY STEPS ASSEMBLY OF TOP BEAM (LONGSIDE) x 2 STEP 1: Connect Cross Beam (C1) and Cross beam (C2). ASSEMBLY OF UPPER POST x 4 STEP 2: Attach Upper post (A1) to assembed Cross Beam (C1,C2),then fix by using screw (BB) (Attention: lay flat cross beam on ground and upward the mosquito netting bar.) - Page 5 ASSEMBLY OF ACROSS BEAM SIDE x 2(Part 1) Step 3: Attach Across Beam (C1,C2) to Upper Post (A1), then fix by using Screw (BB) . ASSEMBLY OF ACROSS BEAM SIDE x 2 (Part 2) Step 4: Connect Side Across Beam (C1) and side across beam (C2).
- Page 6 ASSEMBLY OF TOP CANOPY SLANT BAR x 4 Step 5: Connect upper slant bar (G1) and lower slant bar (G2), Connect upper middle bar (H1) and lower middle bar (H2) ASSEMBLY OF ROOF FRAME Step 6: Insert roof middle Top bar (H1) to Roof Connector (J);...
- Page 7 ASSEMBLY OF ROOF FRAME Step 7: Insert Top Slant Bar (G1) to Roof Connector(J); insert Lower Slant (G2) to Upper Post (A1). ASSEMBLY OF ROOF CANOPY Step 7: Attach Big Canopy (01) to assembled big roof.
- Page 8 ASSEMBLY OF ROOF FRAME EXTENSION TUBE Step 9: Insert Top Slant Bar (G1) to Extension Tube (K4); insert Lower Top Slant Bar (G2) to Short Extension Tube(K5) ASSEMBLY OF ROOF SMALL CANOPY Step 10: Put Small Canopy (02) on small roof frame, fix four corner to Small Roof Extension Tube (K4), then adjust the tube length make canopy fitted.
- Page 9 ASSEMBLY OF BIG ROOF CANOPY Step 11: Insert Top Middle Bar (H2) into Big Canopy pocket (01); Insert Slant Bar Extension Tube (K5) into Big Canopy Four Corner Pocket, adjust tube length, make big canopy fitted. ASSEMBLY OF POST Step 12: Attach Lower Post (A2) to Upper Post (A1) (two or more person is needed...
- Page 10 SETTING OF NETTING Step 13: Hang Netting (P1) on netting tube by using Ring(LL). FIX GAZEBO ON GROUND Step 14: Fix assembled gazebo Bottom of Post (A2), on ground by using Stake (II)
-
