Summary of Contents for ANONA RPS-1

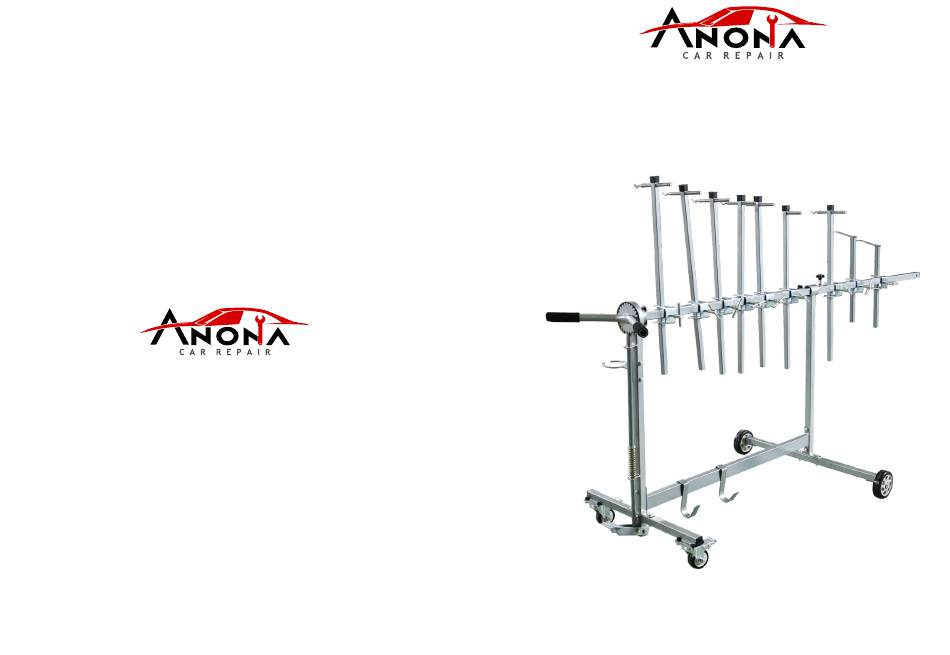

- Page 1 Assembly Instruction Panel Spray Stand Guangzhou ANONA Import & Export Co., Ltd Model: RPS -1 Tel: 0086-20-87460378 Direct Line: 0086-13005123276 E-mail: anona@anonaauto.com Website: www. anonaauto.com Guangzhou ANONA Import & Export Co., Ltd...
- Page 2 01-b 01-a Packing List Item No. Part Name Qty. Item No. Part Name Qty. 01-a Hold Arm Extension Bar 01-a.Hold Arm 09.Braked Wheel 01-b Small Parts Holder Mounting Screw Hold Arm Fixation Vertical Pole 01-b.Small Parts Holder 10.Limit Screw Upper Beam Bottom Beam 02.Hold Arm Fixation 11.Extension Bar...
- Page 3 Assemble Fixed Wheels and Fixed Wheel Bar Assemble Vertical Pole Before After Before After Please notice Fixed Wheel Bar orientation Assemble Braked Wheels and Braked Wheel Bar Assemble Limit-Rod Pole Before After Before After 03/08 04/08...
- Page 4 Assemble Bottom Beam Assemble Upper Beam, tighten the Limit Screw and Mounting Screw Before After Before After Assemble Foot Pedal Assemble Rotating-Control Plate Before After Before After Pull Tread Foot Pedal Release Foot Pedal 05/08 06/08...
- Page 5 Assemble Extension Bar Before After Assemble Spray Gun Holder, Bottom Hooks(2pcs) and Hold Arms(9pcs in total) Before After 01-a 01-b 07/08 08/08...
