Summary of Contents for SoftWash Systems Rinse DC Plus
-
Page 3: Table Of Contents
Diagram of Rinse DC Plus ....................3 Rinse DC Plus Introduction ....................5 Where can I find help? ....................5 Powering Your SoftWash Rinse DC Plus Module ............5 General System Operation & Processes ................6 Filling 50 or 100-Gallon Water Storage Tank .............. 6 Spraying Procedures .................... -
Page 7: Rinse Dc Plus Introduction
This owner’s manual is your first source for support and direction on your new Soft- Wash Systems Rinse DC Plus Module. In this owner’s manual you will find step by step directions for basic operations. Other sources for finding and getting support are: 1. -
Page 8: General System Operation & Processes

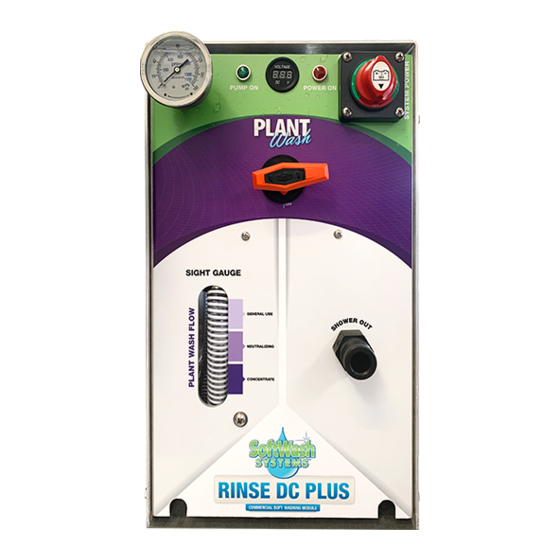

Rinse wand is open and automatically turning off when the wand is closed. 1. On the front of the Rinse DC Plus Module, turn the metering valve dial to the desired amount of Plant Wash you wish to add to the water in your rinse hose. -
Page 9: Troubleshooting Options
Low Batteries Located on the front of the Rinse DC Plus Module is a volt meter for monitoring the levels of the batteries on your system. If your batteries are below 12.0 volts, they need to be charged. System will not work, or will struggle if below correct voltage. -
Page 10: System Pump Is Overheating
Plant Wash Tank is Low, or Valve is Open Check the level of Plant Wash in your Plant Wash saddle tank. If empty refill by adding two scoops of Plant Wash and filling the rest of the way up with water. Air Leak There are only a few points at which air can leak into the system. -
Page 11: Maintenance Of System
Maintenance Refer to the chart below for information about how often to perform maintenance on each part of your system. \\\\\ Helpful Tip: Set calendar reminders to do these items. Tanks & Hoses 1. Coat the tanks from time to time with a plastics care product like Armor All Tire Foam or alike product. -
Page 12: Float Valves
hose clamps and tank straps and replace if anything looks worn. 4. Daily when closing out your truck wind up the 5/8-inch spray hose through a rag moistened with Armor All so that the UV protectant in the Armor All coats and protects the spray hose. -
Page 13: Maintenance Of Pump
Maintenance of Pump Included in your owners’ packet, you will receive a pump owner’s manual from the pump manufacturer. This is separate from the SoftWash Systems DC Plus Rinse Module Owner’s Manual and should be referred to when maintaining the pump itself. -
Page 14: Definitions / Glossary
A pressure switch is a type of switch that closes an electrical contact when a certain set fluid pressure has been reached on its input. This Switch automatically shuts the pump off when it reaches a set pressure. (for the Rinse DC Plus, this is about 140 PSI). -
Page 15: Warranty
With the purchase of your equipment, SoftWash Systems will provide you with 6 Months FREE Technical Support via phone, which begins when you receive your equipment. After 6 months, if you are a member of the SoftWash Systems Network, you will continue to receive free Technical Support over the phone. -
Page 16: Lifetime Limited Warranty
(see page 11, Proper Care) and will result in your warranty claim being denied. In the event of failure SoftWash Systems will repair the deficiency or replace at its option. Parts will be replaced at no cost to the original customer. Shipping and instal- lation will be at customers expense. - Page 19 SoftWash Systems 855.763.8669 production@SoftWashSystems.com www.SoftWashSystems.com...
