Sunpin PD151 User Manual

Hide thumbs

Advertisement

Quick Links

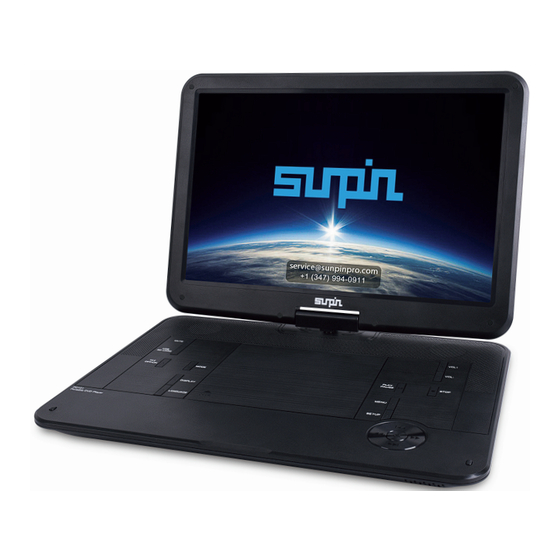

Portable DVD Player
Model: PD151
USER GUIDE
Official E-mail : service@sunpinpro.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PD151 and is the answer not in the manual?

Questions and answers

Horst Ludwig
March 16, 2025

Wie stelle ich die Bildschärfe ein ?

User image 67d6a69da5c7d
0
1 comments:
Horst Ludwig
March 16, 2025

@Horst Ludwig

0
Todd
May 16, 2025

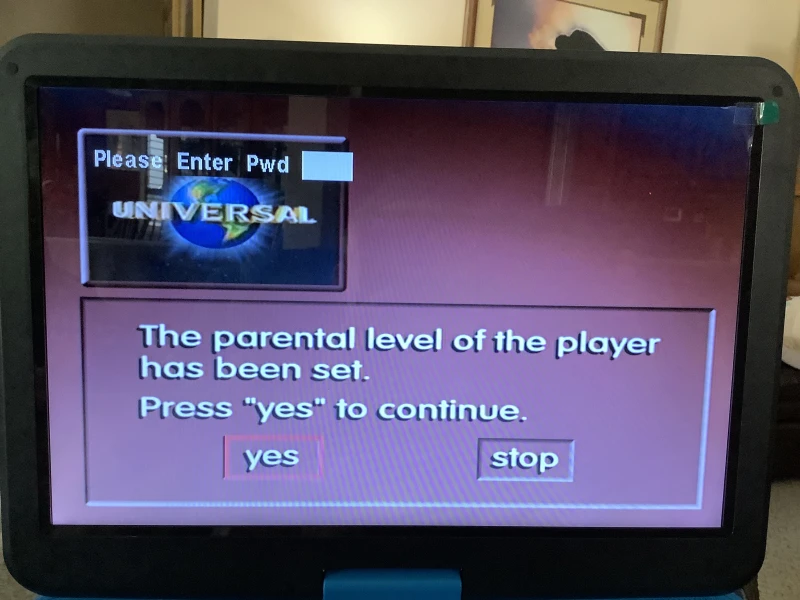

Is there a parental set up? That question showed up and then it locked the device unless a password was entered but never asked to set up a password

User image 6827a92d4bbe2
0

Related Manuals for Sunpin PD151

Summary of Contents for Sunpin PD151

  • Page 1 Portable DVD Player Model: PD151 USER GUIDE Official E-mail : service@sunpinpro.com...

  • Page 3: Table Of Contents

    Adjust the settings Product’s information Thank you for purchasing SUNPIN PD151 Portable DVD Player. This is the Quick Start Guide, which provides you with basic operations’ instructions. Please read it carefully before using the product. We do provide 12 months warranty. If you have any problems or suggestions, please feel free to contact us by amazon message, or send an email to our o cial E-mailbox.

  • Page 4: Important Safety Instructions

    Please read through this manual before operating the unit. Please retain this manual for further use. Troubleshooting / warranty SunPin o ers 12 months warranty card (included in the box) and 24/7 customer support. ACTIVATE YOUR 12-MONTH WARRANTY. Register within 7 days after receiving your new product by visiting this link: www.sunpinpro.com/warranty...

  • Page 5: Overview Over The Device

    Overview over the device DVD picture 1. MUTE 2. DVD / USB / CARD SELECT KEY 3. TFT SCREEN ON / OFF MUTE VOL+ 4. MODE VOL- 5. DISPLAY SD CARD 6. LANGUAGE 7. OPEN PLAY MODE STOP OFF/ON PAUSE 8.
  • Page 6 Remote picture 1. MAIN POWER 2. USB/CARD 3. MUTE 4. VOLUME -/+ 5. ENTER 6. DIRECTION BUTTONS 7. SETUP 8. RETURN SETUP MENU 9. MENU 10. PLAY/PAUSE RETURN 11. FAST FORWARD / FAST REWIND 12. STOP 13. PREVIOUS/ NEXT 14. A-B LOOP REPEAT ZOOM SLOW 15.

  • Page 7: Use Your Dvd Player

    Use your DVD player Turn on/o the player Slide the Power switch on the right side of the player to the "ON" position to turn on the player. Slide the Power switch on the right side of the player to the "OFF" position to completely turn o the player. Note: If you won’t use the player for a long period of time, slide the Power switch to the "OFF"...
  • Page 8 Volume Control Press the VOL+/-button on the player or the remote control to increase or decrease the volume level. To switch o the volume temporarily press the MUTE button on the DVD player or on the remote control. Playback will continue without sound. Press it again or press the volume button to activate the sound. Repeat A-B(DVD / VCD / CD / MP3)Playback Using this feature to repeat the playback of a speci c section of a track/chapter (loop).
  • Page 9 All functions are the same as playing a disc. Note: The USB IN port is compatible with ash drives. Some MP3 players using proprietary software may not be compatible. Connect SD/MMC Memory Card 1. insert an SD or MMC card into the SD/MMC Memory Slot. 2.
  • Page 10 Rotate the screen Clockwise Connect to TV AV OUT VIDEO IN AUDIO IN Connecting power supply Car adaptor...

  • Page 11: What's In The Box

    What’s in the box 1. Dvd player machine 2. Ac adaptor 3. Remote control 4. Av cable 5. Car adaptor 6. Instructions manual 7. Warranty card Adjust settings 1.GENERAL SETUP PAGE There are ve items in the GENERAL SETUP PAGE. They are TV DISPLAY, OSD LANGUAGE, CAPTIONS, SCREEN SAVER, and LAST MEMORY 1.1 TV DISPLAY 4:3 PAN SCAN...
  • Page 12 1.2 OSD(on-screen display)language Set this on-screen display language in this item. 1.3 CAPTIONS Set this item to ON. When a disc encoded with closed captions, the closed captions will be shown on the screen. Set this item to OFF to hide it. You can also press [SUBTITLE] on the remote control to show or hide the closed captions.
  • Page 13 2. Audio The Audio menu allows you to change the audio setup of the DVD. Speaker Downmix: Set down mix to LT/RT, Stereo 3. Video The video menu allows you to change the display properties of the DVD. Quality Sharpness: Adjusts the screen sharpness Brightness: Adjusts the screen brightness Contrast: Adjusts the screen contrast Gamma: Adjusts the screen gamma...

  • Page 14: Product's Information

    TV Type Set TV Type to PAL, AUTO, or NTSC Audio: Set the default audio language Subtitle: Set the subtitle language Disc Menu: Set the disc menu language Default: Return the portable DVD to factory default settings. Product’s information Compatible DISC DVD/VCD/CD/MP3/MPEG4 Frequency response 20HZ to 20KHZ...
