Safety & Instructional Manual
PIN Number:
Your new RapidCut 2.0 system includes
Your new RapidCut 2.0 system includes
Cutting Machine
Cables
Accessories
Welcome Pack
Serial Number:
Cutter Power
Tape Measure
2.0
2.0
USB
Tweezers
Plug Adapters
ORIGINAL INSTRUCTIONS
Doc # MAN-MLS-0010-V3
Tablet Power
Replacement Blade
Advertisement
Summary of Contents for Mobile Outfitters RapidCut 2.0

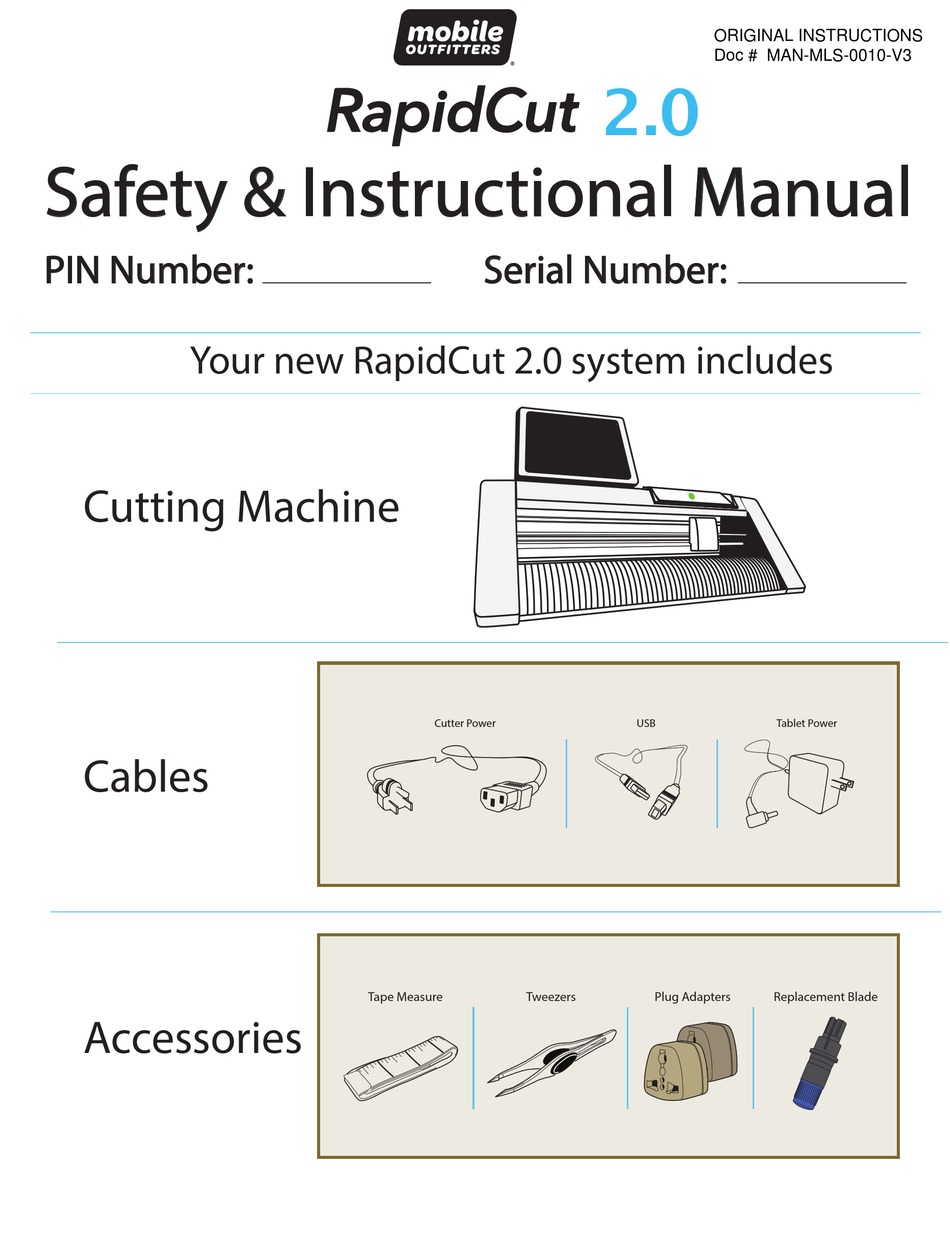

- Page 1 ORIGINAL INSTRUCTIONS Doc # MAN-MLS-0010-V3 Safety & Instructional Manual Welcome Pack PIN Number: Serial Number: Your new RapidCut 2.0 system includes Your new RapidCut 2.0 system includes Cutting Machine Cutter Power Tablet Power Cables Tape Measure Tweezers Plug Adapters Replacement Blade...
-
Page 2: Table Of Contents
Table of Contents Unboxing Plugging in & Powering up Connecting to WiFi New Portal Log In Packing a Return Safety Guidelines Pg. 13-18 Cutting Plotter Setup Manual Pg. 19-24... -
Page 3: Unboxing
Unboxing Remove all 4 cardboard wall protectors by lifting them up, one at a time, out of the box. DO NOT discard these protectors, they will be used to packaging if you are returning a system. (See part 5 for returns) You are now able to remove the cutting system from the box. - Page 4 Once the RapidCut is removed from the box. Remove each end protector by pulling them, one at a time, away from the machine Remove Cutting blade protection foam Remove cardboard packaging by gently pulling it straight out...
-
Page 5: Plugging In & Powering Up
Plugging in & Powering up Once the RapidCut system is unpacked, rotate the tablet perpendicular to the cutting machine, as shown below. This exposes the USB port for connecting the tablet to the cutting machine... - Page 6 Plug the USB cable into the USB 3.0 port here Once the USB cable is plugged in, rotate the tablet to be parallel with the cutting machine, as shown below.
- Page 7 Step 2: Create slack. Give it slack Loading Sheet Media Lower the media set lever to raise the push rollers. Supplement Push roller See "Aligning the Push Rollers" about the Plug the USB cable into the USB port Plug the USB cable into the USB port Media set lever Media sensor position of the push rollers.
-
Page 8: Connecting To Wifi
Connecting to WiFi After the system has turned on this screen will show. Select “Logout / Restart” You will be prompted to con rm this action. OPEN Start here, to Logout Select “Yes” Help Video Troubleshooter Logout / Restart Once logged o swipe up on the screen showing time and date. - Page 9 Tap on the “RapidCut User” password eld password: 1111 enter password 1111 Once logged in Tap on “Open RapidCut” Tap here to start the RapidCut 2.0 software OPEN Enter your location 4 digit pin number Help Video Troubleshooter Logout / Restart You’re all set! If you have any trouble...
-
Page 10: New Portal Log In
New portal log in Your new RapidCut 2.0 has an all new customer portal for location management. To access your new portal go to: RapidCut2.moutfitters.com Once the portal has loaded enter your Email and Password. Your RapidCut portal password is emailed to the account email prior to the delivery of the RapidCut system. -
Page 11: Packing A Return
Packing a Return You will re-use the materials from your replacement machine to pack your return. Items you will need are: - Shipping Box -Cardboard wall protectors - Molded foam - Plastic sheet - Foam cube - Bubble Wrap - Cardboard cutting head and roller protector Turn o cutting machine unplug the usb and power cables from the cutter Push the yellow lever down, to the lower position Slide the white cutting head to the far right of the machine... - Page 12 Wrap the machine in the plastic SHEET , fold and tape the ends Place the 2 molded foam ends on machine, NOTE the yellow lever must be in the DOWN position in order to fit the cutout in foam Gently place the machine in the box with the top of the machine facing up Place the 4 cardboard wall protectors on top of the foam.
- Page 13 TO ENSURE SAFE AND CORRECT USE...
- Page 15 • If the cutting plotter requires repair, contact your Partner Success Manager or return the entire machine to Mobile Outfitters. Do not connect the cutting plotter to a non-rated power supply. • Use of a different supply voltage may result in electrical Prohibited shock or a fire hazard due to current leakage.
- Page 16 Safety Precautions: (Continued) WARNING Do not use the cutting plotter in a location where it will be exposed to water, rain or snow. Avoid water • Such location may cause electrical shock or a fire hazard due to current leakage. Beware of electrical shock If the cutting plotter generates smoke, is too hot, emits a...
- Page 17 • Use of the cutting plotter in such status may result in Unplug the power electrical shock or a fire hazard due to current leakage. cord from the socke • Contact your Partner Success Manager or return the entire machine to Mobile Outfitters.
- Page 18 Safety Precautions: (Continued) CAUTION Do not attempt to lubricate the cutting plotter's mechanisms. • Such action may cause it to break down. Prohibited Do not clean the cutting plotter using a volatile solvent such as thinner or benzine. • Such action may impair its performance. Prohibited •...
- Page 19 WARNING: The United States Federal Communications Commission has specified that the following notice must be brought to the attention of users of this product. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 20 CUTTING PLOTTER SETUP MANUAL MANUAL NO. -UM-8M4 Preface Thank you for choosing this product. Carefully keep this manual in a handy location for quick reference as necessity prior to use to ensure safe and correct use and also to thoroughly understand the functions and operate them effectively.
- Page 21 Before starting the Setup Make the following preparations before starting Setup. • Check that all of the items included in the package. (Please see the User's Manual (PDF).) For the Parts Names, please see the User's Manual (PDF). • Assemble this Cutting Plotter, and set up it. For the assembling procedures, see either Manual attached to the Stand or User's Manual (PDF).
- Page 22 Setting up the Plotter main unit 1. Attaching a Tool Attach a tool (cutter plunger, plotter pen) to the plotter. Attaching a Tool When mounting the tool in the tool holder, please note the following. • • is moving. It is explained here using cutter plunger as an example. CAUTION Supplement •...
- Page 23 Flange Bracket to hold tool Removing the tool When removing the tool, turn it counterclockwise to remove the tool. 2. Loading Media (Paper or Marking Film) Both roll media and sheet media can be used with the Load the media according to the instructions given for each type. Use the grit roller on the right side of the media (looking side of the media.
- Page 24 Press the media stopper to engage it, and then pull the leading edge Media stopper out of the front of the plotter, making sure that it completely covers the This stops the stock shaft from spinning when media sensor. setting in media. It is also utilized when pulling roll media straight out.
- Page 25 3. Aligning the Push Rollers This section describes how to alignment of the push rollers. Aligning the Push Roller positioned above both the media and the grit rollers. Position the push rollers within the grit roller position guides ensures that they are above the grit rollers. Push roller Grit roller position guide (It isn't on the grit roller.)
