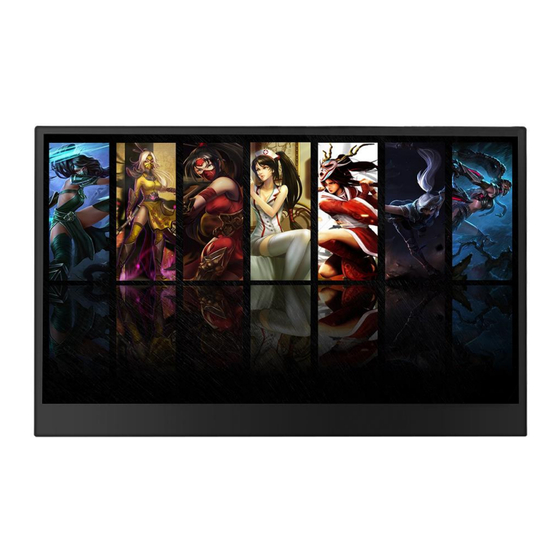

Portable flat-panel display, 15.6 inch portable monitor

Hide thumbs

Table Of Contents

V1.0

Portable Flat-panel Display

Product Manual

Table of Contents

Need help?

Do you have a question about the BX156 and is the answer not in the manual?

Questions and answers

Summary of Contents for BX BX156

Page 1 V1.0 Portable Flat-panel Display Product Manual...
Page 2: Table Of Contents
Contents Introduction Safety information ....................3 Technical specifications ..................5 Introduction to display ...................9 Introduction to buttons ..................10 Device connection ....................11 1. Connect the computer with full-function Type-C interface ......... 2. Connect the mobile phone with TV-out function ............3. Connect Nintendo Switch .................... 4.
Page 3: Introduction
It is portable. Users can carry it with them, improve efficiency in the process of mobile office, and can also use it as an entertainment partner on the go. The BX156 portable display is very innovative, equipped with a 15.6-inch IPS panel, resolution 1920x1080, refresh rate 60HZ, 15.6-inch size and weighs only 820 grams Frequency 60HZ, weight only 625g).
Page 4 • Please use the power cable provided with the display. If another power cable not provided by the distributor is used, please confirm it meets relevant national standards. If the power cable is damaged, please contact the distributor immediately. • Please use the power supply with a voltage of 5V and a current of 2A or above. Mobile phone chargers, power bank and USB 3.0 interfaces that meet the requirements of power supply can be used to power the display.
Page 5: Technical Specifications
If you encounter any problem during your use, please contact the professional technical service  personnel or distributor. Technical specifications Product parameter description ID Renderings Product number BX156 BX133 Brand LOGO screen size 15.6" LED panel 13.3" LED panel screen ratio...
Page 6 Brightness (cd / m2) 220cd/m 220cd/m (typical value) Contrast 800：1 800:1 (typical value) Color gamut Viewing angle 85/85/85/85 (Typ.)(CR≥10） 85/85/85/85 (Typ.)(CR≥10） (typical value) (CR （Left / right / up / down）（Left / right / up / down ≥10) Vertical refresh 60Hz 60Hz rate（Hz）...
Page 7 Samsung： apple： Galaxy S8；Galaxy S8+； MacBook 12；MacBook 2015； Galaxy S9；Galaxy S9+； MacBook 2016；MacBook 2017 Pro； Galaxy S10；Galaxy S10+； MacBook Air 2018； Galaxy Note 8；Galaxy Note 9； ipad Pro 2018 Galaxy Note 10；Galaxy Note 10+ hammer： Google： Nut R1; Nut Pro 2s; Nut Pro 3 Pixel Book ASUS：...
Page 8 USB Type-c cable *1 , Micro USB cable *1 Micro USB to USB 2.0 *1, 5V2A power adapter *1 Lid and tray Stacking limit 4th floor (large box) Net weight (kg) BX156: 0.82kg BX133: 0.63kg Single gross Bx156: 1.85kg BX133: 1.49kg weight (kg)
Page 9: Introduction To Display
390mm x 260mm x 55mm 1 world lid packaging Inner packaging size 485*280*415mm 8 yellow carton packaging Package size (8 sets / box) Introduction to display...
Page 10: Introduction To Buttons
Introduction to buttons • The function button adopts the design of dial wheel and is provided with an independent power button/return button. • Press the power button/return button for 3 seconds to turn on/off the display. • Press the dial wheel to open the OSD(On-Screen Display)menu of the display. In the menu, move the dial wheel upwards and downwards to control the cursor.
Page 11: Device Connection
Device connection 1. Connect the computer with full-function Type-C interface Audio and video signal transmission, touch signal transmission and power supply The display supports connecting full-function USB3.1 Type-C interface with standard wires for extended display or duplicated display. The touch version ZB156 can perform touch operation on the display (system support is required.
Page 12: Connect Nintendo Switch
3. Connect Nintendo Switch External power supply (5V/2A) When external power supply is connected, the display supports connecting the Switch host with standard Type- C to Type-C cable and switching on the Switch TV mode; When external 5V power supply is connected, the external power supply supplies power to the display.
Page 13: Connect Multiple Hdmi Devices
5. Connect multiple HDMI devices Audio and video External power supply (5V/2A) Audio and video If power supply of computers' USB interfaces is insufficient, external 5V/2A power supply can be used to power the device Remarks: •The Type-C1 interface is a full-featured USB3.1 interface with power supply function. The Type-C2 interface is an auxiliary power supply interface.
Page 14: Common Problems And Solutions
Common problems and treatment Q: The display’s light does not work, and the power indicator light also does not work. A: Press the power button to check whether the display is in the start-up state; Check that the USB cable is properly connected to the display and power supply interface. Q: The display’s light does not work, but the power indicator light is red.
Page 15: Maintenance And Cleaning
Maintenance and cleaning • Turn off the display and unplug the power cable. Clean the display surface with a non-linen, non- abrasive cloth. Wet the cloth in a neutral detergent and removes the stubborn stains. • Do not use detergents containing alcohol or acetone. Use special cleaner used for liquid crystal screen.
Page 16: After-Sale Service
After-sale service Products are warranted for one full year. • Within 7 days from the date of purchase, the consumer may choose to return, replace or repair the goods in case of any of the faults listed in the Performance Failure Table for Commodity of Microcomputers.
Page 17 • Damage caused by force majeure such as natural disasters (e.g. earthquake, fire, flood, etc.) For services beyond the scope of the free warranty, A fee may be applied. (Calculated fee = Technical Service Fee + Fee of Replacement Parts). The company reserves the right to interpret and/or amend all the above provisions without prior notice.
