Summary of Contents for ETAGTRON PG-308
- Page 1 PG-308 User Manual 版本号:xxx 颁布日期:2016.12 Edition V2.0 Issue date 16-05-21...
- Page 2 Contend 1……………………………………………………………………………………………………………………Safety 2……………………………………………………………………………………………………………………Product package and transportation 3……………………………………………………………………………………………………………………Product function description 4……………………………………………………………………………………………………………………Product installation instructions 5……………………………………………………………………………………………………………………Product operating instructions 6……………………………………………………………………………………………………………………Product maintenance 7……………………………………………………………………………………………………………………Product troubleshooting 1. Saftety Attention The following notices can not prevent all the dangerous during the operation. To be totally preventing dangerous, the operator’s experience and judgment is also very necessary. Each chapter of the manual has more detailed instructions of how to prevent the dangerous during the operation.
- Page 3 Do not open the electricity cover when the machine is running. This manual should be put in the convenient place for the operator checking, which make sure safety working condition. If the manual is loss or damaged, please ask for one new from our company. The damage of the construction or improper maintenance will lower the machine protection ability.
- Page 4 Safety marking and symbol The metal tag on the machine has safety marking, symbol, and other information. Attention Make sure the words on the metal tag are clearly visible. Use clothes, soap, and water to clean the metal tag, do not use solvent, diesel and gasoline to clean the metal tag.
-
Page 5: Product Description

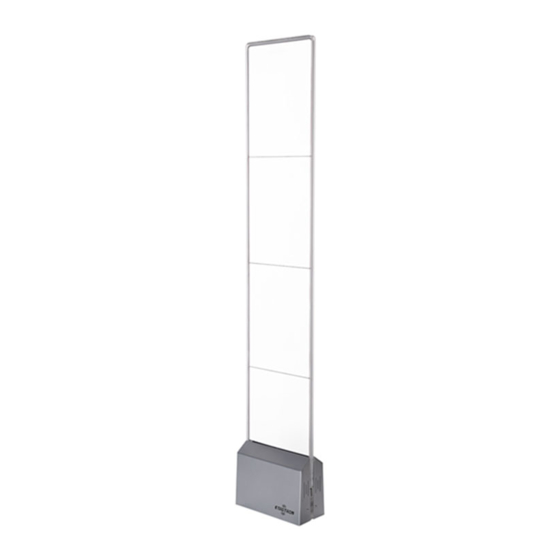

3. Product description Etagtron RF EAS systems meet many kinds of needs of the retailer industries by its advanced function and good outlook. It has wide detection range from 1.6 meter to 2.2 meter according to different labels and tags. It is widely used in supermarket, fashion store, electronic store, cosmetic store, book store, etc. - Page 6 3.5 EAS system is composed of three parts EAS Sensor,EAS Deactivator and EAS Electronic Label and Tag. There are two kinds of electronic labels and tag: soft label and hard tag, the cost of soft label is lower, we can paste it on the “hard” commodities directly, one soft label just can be used for one time.
- Page 7 4.2 Alarm Rate: The alarm rate can be set as fast or slow. The system comes with the fast rate set as the default. To change the alarm rate to SLOW, remove the jumper on “RATE/LENGTH ”. 4.3 ARC(Automatic Resonance Control): Sometimes the system may alarm because of a resonance caused by either tagged merchandise being placed too close to the system or by an external condition that rings at a frequency within the transmitted signal band.
-
Page 8: Product Manual
value, the time for stabilization is about 10s, it means that it will take about 10s for us to get the stable electronic level after we change to a new surrounding environment. 4.7 P2 and P3: Jumper P2 and P3 can be used to forbid the transmitted function of the system, this is used to set the up loop and down loop mode. - Page 9 6. Product maintenance instructions 6.1 Checking the equipment power supply is working correctly (daily) （check if the indicator light is on） ，if the equipment is not working correctly, then check whether the power plug, external power supply is fused or not. 6.2 Cleaning the equipment on a daily base, to prevent dust, water from affecting on its use.
- Page 10 For a better understanding, we made auser manual for you. If you have any questions or concerns, welcome to contact us. We will do our best to help. Please visit our website if necessary:www.etagtron.com ● This system needs to be maintained in a fixed time, or the function would be influenced.
- Page 11 Component/Part Overview ETAGTRON Tools used in the installation 2# Phillips Slotted Diagonal Neele-nose 16oz Claw Acrewdrive Acrewdrive Pliers Hammer Drilling Monkey 3M Tapeline Oil Marker Tool Wrench Percussion Bit Related component 102480 P104 Z676 Z410 Explanation Gasket Self-locking Nut...
- Page 12 Detachment of the base ETAGTRON Rotation Release Cross Screwdrive 102480 102480 Cross recessed pan head screws M4*8mm Dismountin...
- Page 13 Fixed System ETAGTRON Positioning Drilling Tool Oily Marke 14# Percussion Bit 3M Tapcline Punch Hole 16oz Claw Hammer P104 Expansion Screw P104 ￠10MM...
-
Page 14: Wire Connection
System wire connection ETAGTRON Monkey Wrench Fixing AlotType Screwdrive Diagonal Z676 Pliers Z410 Nipper Z676 Wire connection Locknut ￠10MM Z410 Gasket ￠10MM D560 Power Adaptor... - Page 15 System Closure ETAGTRON Closing the cover 2# Phillips Screwdrive 102480 Cross recessed pan head screws bolt with gasket M4*8mm Resetting 102480...
-
Page 16: System Tuning
System tuning 1 ETAGTRON Gain adjustment Gain adjustment Knob :Clockwise, increase, Counterclockwise, decrease, mis alarming may appear if there are lots Gain. Gain adjustment Knob Clockwise maximum volume Counterclockwise minimum volume... - Page 17 System tuning2 ETAGTRON Forbid transmitting antenna P2: up loop emission control ON(default) P3:down loop emission control ON (default) RATE: alarm rate ARC: auto threshold FS：frequency choose LENGTH: alarm length...
- Page 18 The remarks of the definition and reference ETAGTRON Alarm speed（RATE） ： the alarm rate can be set to fast or slow. The system default setting is fast. If you would have a alarm is set to slow, then unpin the jump cap on the jump wire rate.
