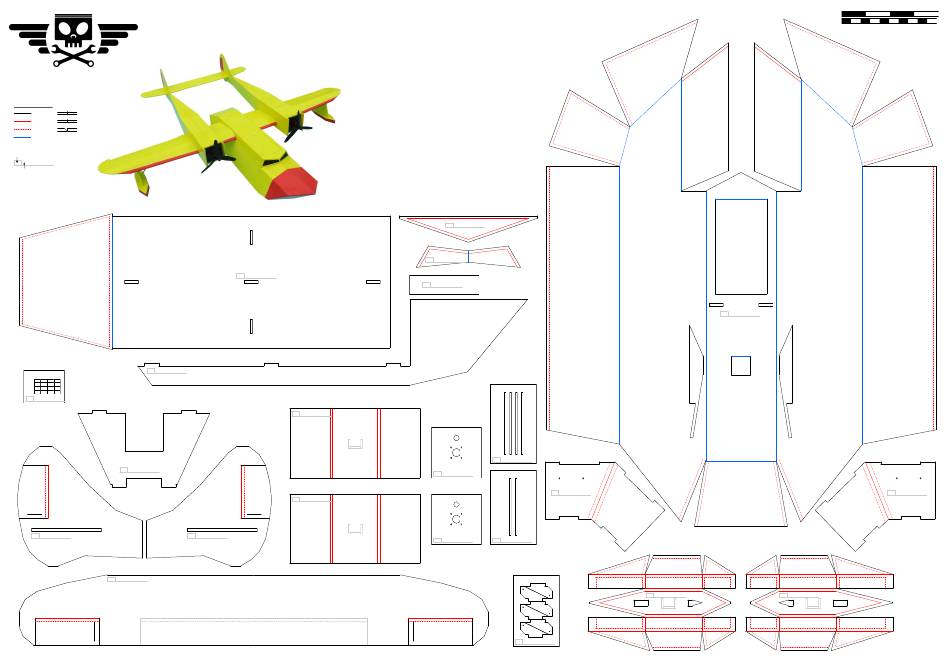

Airc Pirates Sea Duck Quick Start Manual

Sea Duck (Conwing L-16)
Airc Pirates - the sky is our ocean!
DESIGNED & DRAWING BY: TONY ROEHLING
LINE TYPE / COLOR:
CUT
SCORE CUT
BEVEL 45°
SCORE CUT & CREASE
PART NUMBER
DESCRIPTION
03 FUSELAGE (LOWER SUPPORT)
STICKER
AIL-L AIL-L AIL-R AIL-R
ESC-L ESC-L ESC-R ESC-R
ELV-L ELV-L ELV-R ELV-R
RUD-L RUD-L RUD-R RUD-R
35 SERVO EXTENSION LABEL
02 FUSELAGE (UPPER SUPPORT)
25 LEFT VERTICAL STABILIZER 26
27

HORIZONTAL STABILIZER

INSIDE ELEVATOR (ALTERNATIV)

AIRCRAFT SPECIFICATIONS:

LENGTH:
Wing SPAN:
CG:

RECOMMENDED EQUIPMENT:

SERVO max. 6: 4.4 g (TGY-1440A)
MOTOR x 2: DYS 1806, 2300 kv
ESC x 2: 12 amp
PROP x 2: 5 X 3 (5030) 1 x CW & 1 x CCW
BATTERY: 1300 mAh 3s (min)
WEIGHT W/O BATTERY:
max. 600 g | 21.16 oz

VARIANTS:

AILERONS | 1 INSIDE ELEVATOR | NO RUDDER (SERVO x 3)
AILERONS | 2 OUTSIDE ELEVATORS | NO RUDDER (SERVO x 4)
AILERONS | 1 INSIDE ELEVATOR | 2 RUDDER (SERVO x 4 OR 5)
AILERONS | 2 OUTSIDE ELEVATORS | RUDDER (SERVO x 5 OR 6)
01

FUSELAGE (BATTERY / ELECTRONICS TRAY)

28

POWER POD 1

B
30

POWER POD 2

B
RIGHT VERTICAL STABILIZER
795 mm | 31.30 in
900 mm | 35.43 in
22 mm | 0.87 in
07

FUSELAGE (LOWER PART)

06 FUSELAGE (WINDOW)
05 FUSELAGE (COVER STOPPER)
BBQ-Skewer
3 mm PLYWOOD
33 SWIMMER STABILIZEER
BBQ-Skewer
29

POWER POD 1 (FIREWALL)

11

RIGHT SWIMMER

3 mm PLYWOOD
31

POWER POD 2 (FIREWALL)

32 POWER POD PINS
SMALL PLASTIC CARD
33 CONTROL HORNS
04

FUSELAGE (OUTER SHELL)

10 RIGHT SWIMMER 08 LEFTSWIMMER
B B
in
cm
FOAM BOARD SHEET SIZE: 1000 x 700 x 3 mm
SHEET 1 OF 2
09 LEFT SWIMMER
