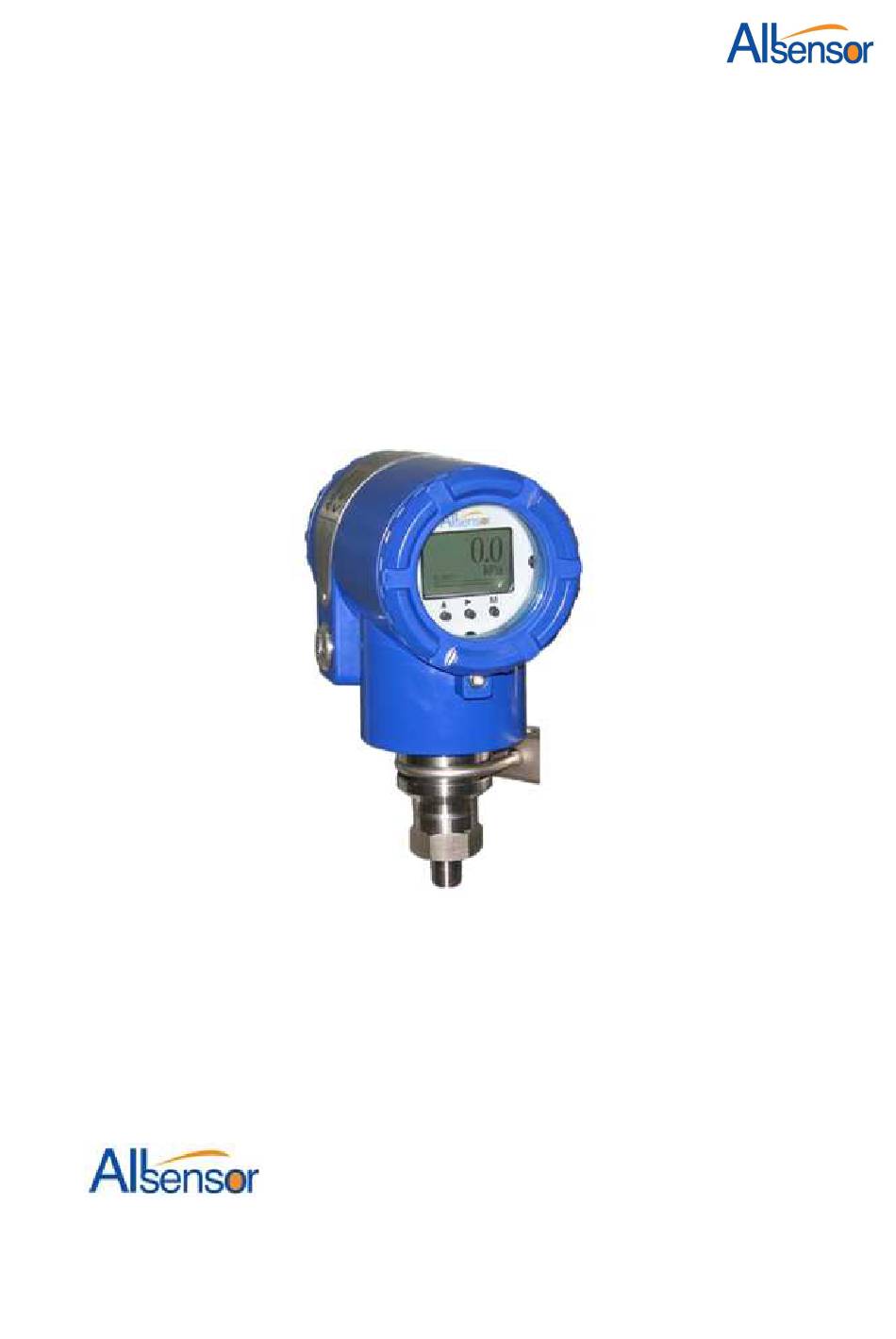

- Page 1 P601 HART Series P601 Series HART Protocol Pressure Transmitter Manual HISCO Sensor Institute Inc. #513~514 HausD biz 10, Seonyu-ro 3-gil Yeongdeungpo-gu, Seoul, Korea Tel. : 82-2-2284-3737~9, Fax. : 82-2-2284-3740, www.allsensor.com...
-
Page 2: Table Of Contents
P601 HART Series Contents 1. INTRODUCTION 2. SPECIFICATION 3. APPLICATION 4. DISPLAY 5. LOCAL ADJUSTMENT 6. NOTICE 7. ATTACHMENT : CONFIGURATION ADJUSTING SOFTWARE NOTE - 1 -... -
Page 3: Introduction
P601 HART Series 1. INTRODUCTION P601 with HART pressure transmitter is a SMART pressure measuring unit with 2-wire analog signal outputs. It has a good performance with digitally temperature compensation and non-linearity correction, 4 1/2 digits LCD display with backlight, according with HART communication protocol, It is available with long-distance operation. -
Page 4: Application
P601 HART Series 2.2 Dimension(mm) Figure 2-1 3. APPLICATION 3.1 ELECTRICAL CONNECTION The Supply/Signal terminal locates inside electronic housing. When making connection, please open the transmitter cover firstly, the terminal’s definition see as the Figure 3-1, the left terminal marked with "+" or "–" is for supply/signal. Figure 3-1 - 3 -... - Page 5 P601 HART Series Power is supplied by the signal wires. The Signal/Supply share one terminal(2 wires, no additional supply wire). While you make connection, please take very carefully to make correct connection: the "+"of Supply wires connecting with the "+" of Supply terminal "+"on the left, signal current "-"...
-
Page 6: Display
P601 HART Series 3.2.2 Connecting with the hand-hold communicator. Figure 3-3 By connecting with MS-H375 HART hand-holder to realize the configuration, calibration, local controls and maintenance of HART protocol intelligent transmitter. 4. DISPLAY Customers can use configuration software to set the volume and the decimal point of LCD display. - Page 7 P601 HART Series LCD all information display see Figure 4-1 Figure 4-1 Current display see Figure 4-2 Figure 4-2 Main volume percentage display see Figure 4-3 Figure 4-3 Main volume display see Figure 4-4 Figure 4-4 - 6 -...
-
Page 8: Local Adjustment
P601 HART Series Other display notes:： Ø In the communication state, the left-up corner of LCD flash 。 Ø For the rooting output, LCD display 。 Ø For fixed current output，LCD display 。 Ø If you start the writing protection，LCD display 。... - Page 9 P601 HART Series 4．Press down "Z" key again, you can set the second to the fifth number sequentially, the way is as the same as the step 3. 5．After setting the fifth number, press down "Z" key to set the decimal point. Four decimal points start to flash at the same time and you can set decimal point position.
- Page 10 P601 HART Series data setting process see Figure 5-1 Figure 5-1 Note: Ø In double key operation, while "▼" flashes, press down "S" key to realize M key function. Ø The pass code of configuration data setting is 00002, when it is correct, you can start data setting, if not, it will be back to normal display.
- Page 11 P601 HART Series Unit setting: Unit setting procedure sees Figure 5-2. Right-down corner of LCD display the unit what you select. Figure 5-2 Note: Ø Display unit "I4H2O" means : inch water column at 4℃; Ø Display unit "m4H2O" means : m water column at 4℃. Main volume setting to zero: Procedure sees Figure 5-3.
-
Page 12: Notice
P601 HART Series 5.3.2 configuration data over looking In the normal display state, press down "S" key can over look data quickly, the looking order is as the same as data setting procedure Figures. 5.3.3 zero and span elevation In the normal display state, press down "Z" and "S" key at the same time, then entering the zero and span elevation state, the procedure see Figure 5-4. -
Page 13: Attachment: Configuration Adjusting Software Note
P601 HART Series 7. ATTACHMENT: CONFIGURATION ADJUSTING SOFTWARE NOTE - 12 -... - Page 14 P601 HART Series ※ This manual uses Naver(www.naver.com)'s nanumgothic. - 13 -...
