SPACE AGE ELECTRONICS SSU-WP-2000 Manual

PRODUCT SPECIFICATIONS

USE:
CONDUIT KNOCKOUTS:
MATERIAL:
FRONT ACCESS:
HARDWARE:
PROTECTION RATING:
ENVIRONMENTAL:
APPROVALS:
CAUTION: DE-ENERGIZE ALL POWER BEFORE INSTALLATION OR SERVICE

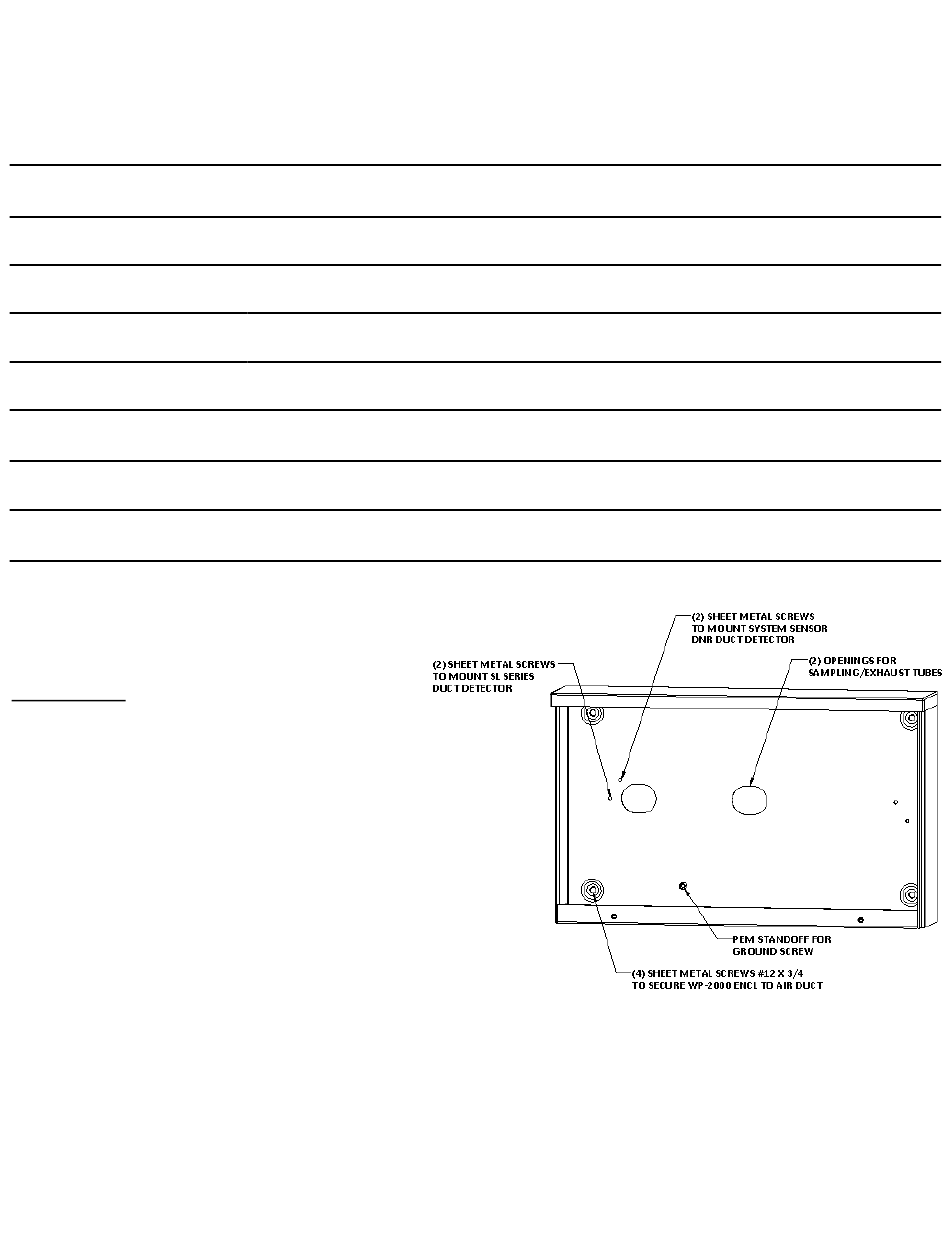

MOUNTING

1. Remove paper backing from mounting template from
detector kit and affix to the air duct at desired
location.
2. Using the template as a guide, drill or punch (2) 1-1/4"
dia. holes in the air duct, for the sampling
tube/exhaust tube.
3. Position the SSU-WP-2000 enclosure in such a way
that the holes (on the template and SSU-WP-2000) are
lined up with each other.
4. Mark the (4) SSU-WP-2000 air duct mounting holes.
Then drill (4) 3/32" (2.5mm) pilot holes as marked.
5. Secure SSU-WP-2000 enclosure to the duct with (4)
#12 x 3/4" sheet metal screws (SSU-WP-2000 kit).
6. Fit the duct smoke detector into the 1-1/4" holes on
the air duct.
7. Secure the duct detector with (2) sheet metal screws
(from detector kit) to the SSU-WP-2000 enclosure.
8. Connect sampling tube/exhaust tube to the duct
detector (position the sampling tube in such a way
that air flows into the intake holes).
SPACE AGE ELECTRONICS
SSU-WP-2000
WEATHERPROOF ENCLOSURE FOR
SMOKE DETECTORS
SL series duct smoke detectors
System Sensor DNR duct smoke detector
On bottom: 3 convertible 0.875"
16ga CRS white painted finish
Removable Cover with two screws
Enclosure mounting screws and ground screw kit included
Type 1 and Type 3R – UL 50 and CSA
Outdoor: Internal equipment protected from falling rain, etc: undamaged by ice formation
See appropriate duct smoke detector specifications
UL: BGUZ.E257104
CUL: BGUX7.E257104
1SAE.COM 800-486-1723 EC0151 REV. A
