F U R N I T U R E
VANCOUVER
R
For questions regarding assembly
please call 888-FURNFX-1
or visit www.furniture-fx.com
QUALITY CONTROL
This string is attached to the
~~HARDWARE PACK~~
Included inside ; a visible confirmation
of hardware being pack in this box
1. Avoid using sharp object such as a knife to cut open
the bubble wrap packing as you may accidentally
damage the sofa fabric.

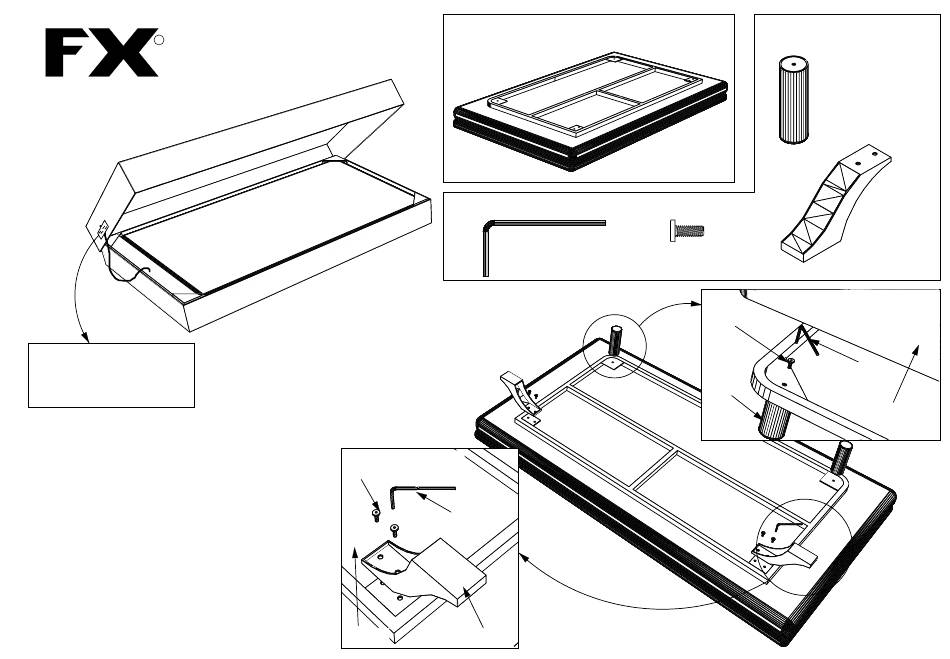

2. The sofa bed frame is pre-assembled to the sofa.
Fix the four legs to the frame as shown in diagram 1.
3. Allign both the JCBC Bolt and on the pre-fixed
threaded metal plate before securing the bolt firmly.
4. Thread in all the bolts through the holes as shown
in diagram 2.
Do not over tighten.
ASSEMBLY INSTRUCTIONS
JCBC
Sofa Bed
PARTS IN THIS BOX
Allen Key- 1 pc.
Diagram 1
Diagram 2
Allen key
Front Leg
HARDWARE IN THIS BOX
Back Leg- 2 pcs.
Sofa Bed- 1 pcs.
JCBC- 6 pcs.
Diagram 3
JCBC
Back Leg
Front Leg
- 2 pcs.
Allen key
Sofa Bed
Page 1 of 2
