Summary of Contents for NexPow YP-300W

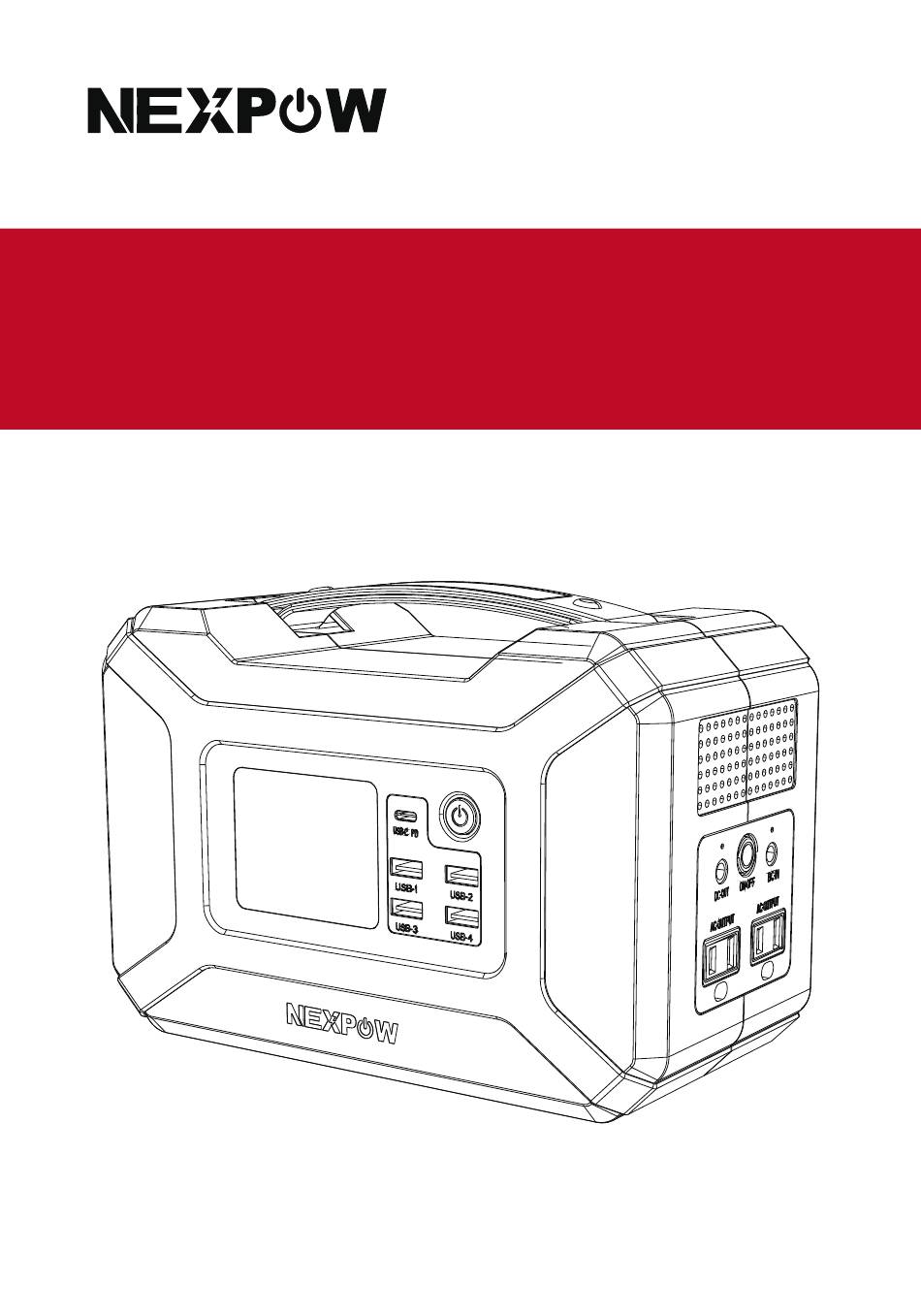

- Page 1 YP-300W PORTABLE POWER STATION User Manual...
- Page 2 Please carefully read the instruc- tion manual and use product correctly based on the instruction manual so that you can be familiar with the product more convenient- ly and quickly! Friendly Tips: Perhaps there is small difference between the photo and the actual product,so please turn to the actual product for detail informa- tion.
- Page 3 300W Portable Energy Storage User Guide First Charge For The Product！ The first charge is crucial to the product's battery performance. During charging, plug the product into the AC power socket until fully charged. See the user guide for more information. - 1 -...
-
Page 4: Important Safety Information
Important Safety Information Warning Always follow basic precautions when using this product, including: Read all instructions before using this product. To reduce risk, close supervision is required when using this product near children. The use of accessories recommended or sold by non-professional-product manufacturers may result in the risk of electric shock. -

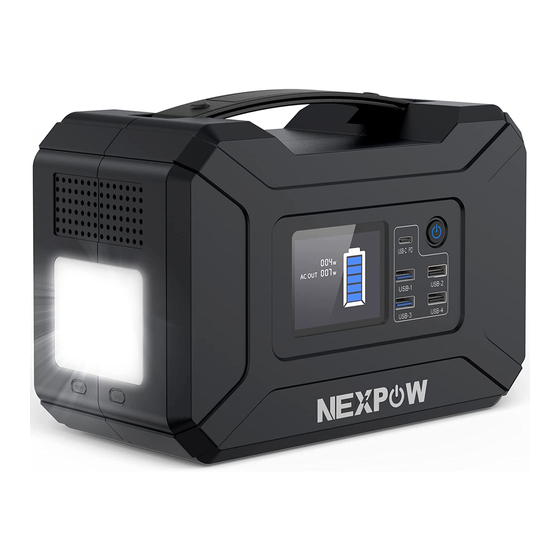

Page 5: Product Display
Please Keep The User Guide Carefully Product introduction： This product is a plug-and-play energy storage power source for emergency situations, camping or whenever you need power. The 296Wh nominal capacity ensures that electronics, appliances, lighting and other appliances run longer. .Product display ①... - Page 6 ⑧ ⑨ 8 LED lighting switch 9 LED warning lighting switch ⑩ 10 DC output indicator 15 DC input indicator 11 DC 12V output port: 10V~28V/Max3A 16 AC/DC output switch 12 AC output port: 110V/60Hz 13 AC output port: 110V/60Hz 14 DC 12V input port: 10V~28V/Max3A - 4 -...
- Page 7 .Charging： 1. Charge through AC power adapter. Before using or storing the product, please charge it with the charger. The display screen will show the current charging ratio. When the display displays full battery power, it means full. The charging process takes about 8 hours. 2.
-
Page 8: Packing List
.Packing List AC power adapter 300W portable energy storage User guide USB cable DC to car charging converter .How to operate 1. USB interface: Click the USB output switch on the front of the product, the LCD will turn on, USB1/USB2/USB3/USB4 will turn on the output function, and then click the switch, the LCD will turn off, and the USB1/USB2/USB3/USB4 interface will turn off the... - Page 9 4. LED warning lighting: Click the SOS LED warning lighting switch on the side of the product, and the product will start flashing white light, then click the switch, the product will start blinking yellow, and then click the switch, the product warning function will be turned off. 5.
-
Page 10: Operating Temperature Range
.Operating temperature range Low temperature may affect the battery capacity of the product, and the product can be used at temperatures ranging from -20 °C to -40 °C. .Which devices can be powered? Smartphones, MP3 players, digital cameras, e- USB and Type-C： readers, tablets, laptops, etc. -
Page 11: Technical Specifications
.Technical specifications Charging Time： AC adapter（51W） about 8 hours Battery Type： Lithium Ion Battery Battery Capacity： 296WH/80000mAh Cycle-index： 500 Times Management system: temperature control, surge protection 2X5V/3A(Max)(USB1/SUB3) USB port: 2X5V/2.5A (Max)(USB2/SUB4) 5V/9V/12V/15/20V Max 3A input and output Type-C port: support PD3.0 and QC2.0 DC port (output): 12~16.8V/10A(Max), short circuit protection DC port (input):... -
Page 12: Common Problems
.Common problems 1. What kind of battery is used This product USES 18650 cylindrical lithium ion battery 2. How to determine whether the product has been charged Please observe the status of the LED display. The battery indicator will show a lightning symbol when charging, and the indicator will be full when fully charged. - Page 13 2. Disassembly and maintenance by non-staff without permission; 3. Product performance failure caused by human factors, 4. Damage caused by natural disasters, lightning, accidents and other irresistible factors. Guarantee: Simply visit our website:www.nexpow.com to activate your 24 months warranty! - 11 -...
