Summary of Contents for Kinlan BE1030

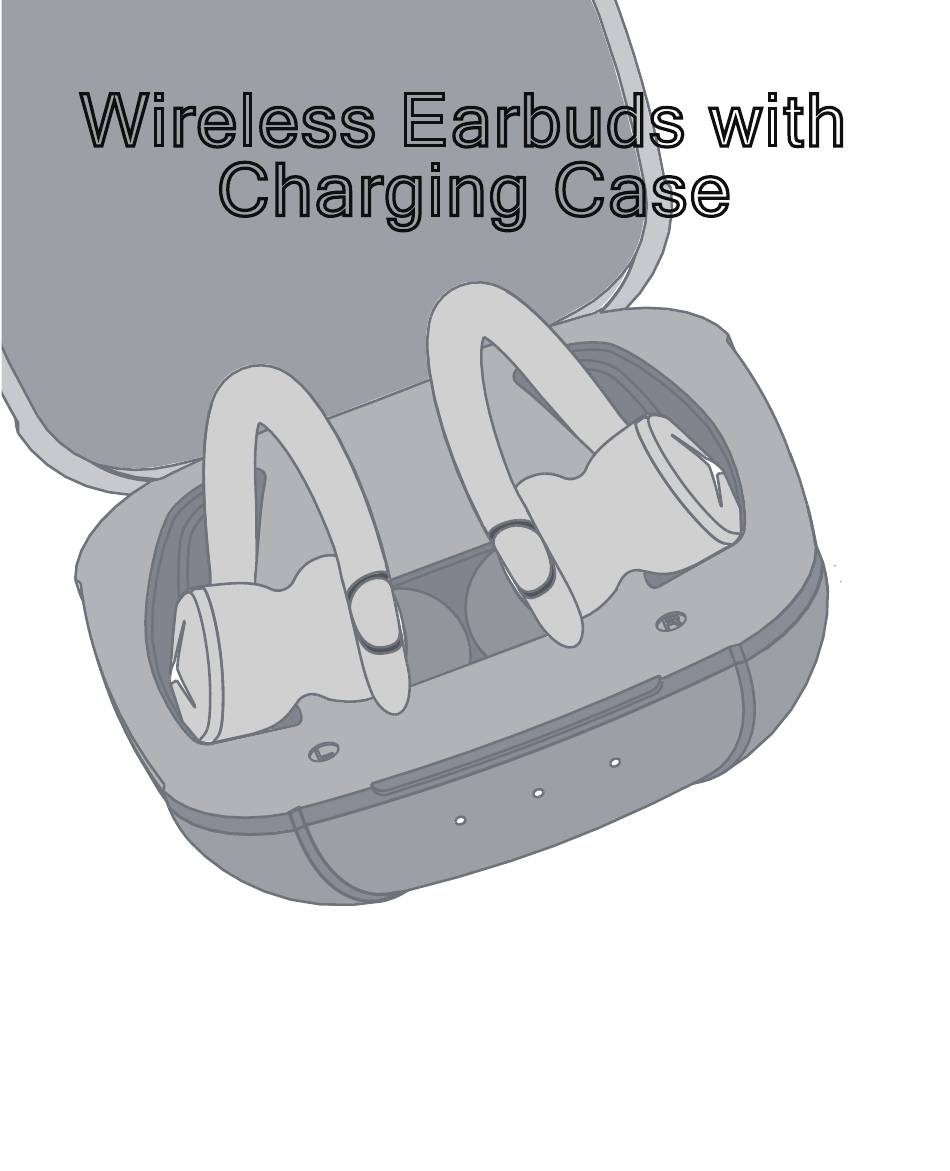

- Page 1 Wireless Earbuds with Charging Case USER MANUAL MODEL: BE1030 Please read this manual carefully before using the product and keep it in a safe place.
-
Page 2: Packing List
PACKING LIST (Size M is preinstalled on earbuds) Wireless Earbuds with Charging Case USER MANUAL MODEL: BE1030 Please read this manual carefully before using the product and keep it in a safe place. User Manual X1 Quick Guide X1... - Page 3 DIAGRAM LED light Type-C charging port LED Indicator Microphone port Charging pins Touch area...
- Page 4 CHARGING • Remove the protective film from the earbuds when using for the first time. • Fully charge both earbuds and the charging case before the first-time using. • To prevent damage, use the provided USB-C cable. • Fully dry off the earbuds and the USB port before charging.
- Page 5 POWER ON Mode 1 • Take both earbuds out from the charging case the earbud will automatically turn on (with white LED lights flashing) and start pairing. Mode 2 x 3s • In the shutdown status and when the earbuds are not in the charging case.Simultaneously click and hold the MFB of both earbuds for 3 seconds to power on and go into pairing mode (with the white LED lights flashing).
-
Page 6: Power Off
POWER OFF Mode 1 • Put the earbuds back to the charging case to turn them off. Mode 2 x 4s • If the earbuds are not in the charging case. Pause music first, click and hold the MFB of both earbuds for 4 seconds to turn them off. - Page 7 2. If the earbuds are not in the charging case.Click and hold the MFB of both earbuds for 6 second s. they will automatically enter the pairing mode and then select "BE1030"on your phone. Note :The earbud will reconnect to the paired device by priority.
-
Page 8: Touch Control
TOUCH CONTROL Volume UP/Down Volume+: click and hold the MFB button of Left earbud to turn up the volume. Volume-: click and hold the MFB button of Right earbud to turn down the volume . Next / Previous Track Next Track: double click the MFB of Right earbud. Previous Track: double click the MFB of Left earbud. -
Page 9: Specification
SPECIFICATION Earbuds Wireless version: V 5.1 Working distance: 10M (barrier-free) Battery: 50mAh Working time: 4~6 hours Charging time: 1.5hous Charging case Battery: Li-battery 700 mAh (Extra 4 times full charge for earbuds) Chaging times: 2 hours Input: 5V 1A Out put: 5V 120mA... -
Page 10: Fcc Warning
FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
