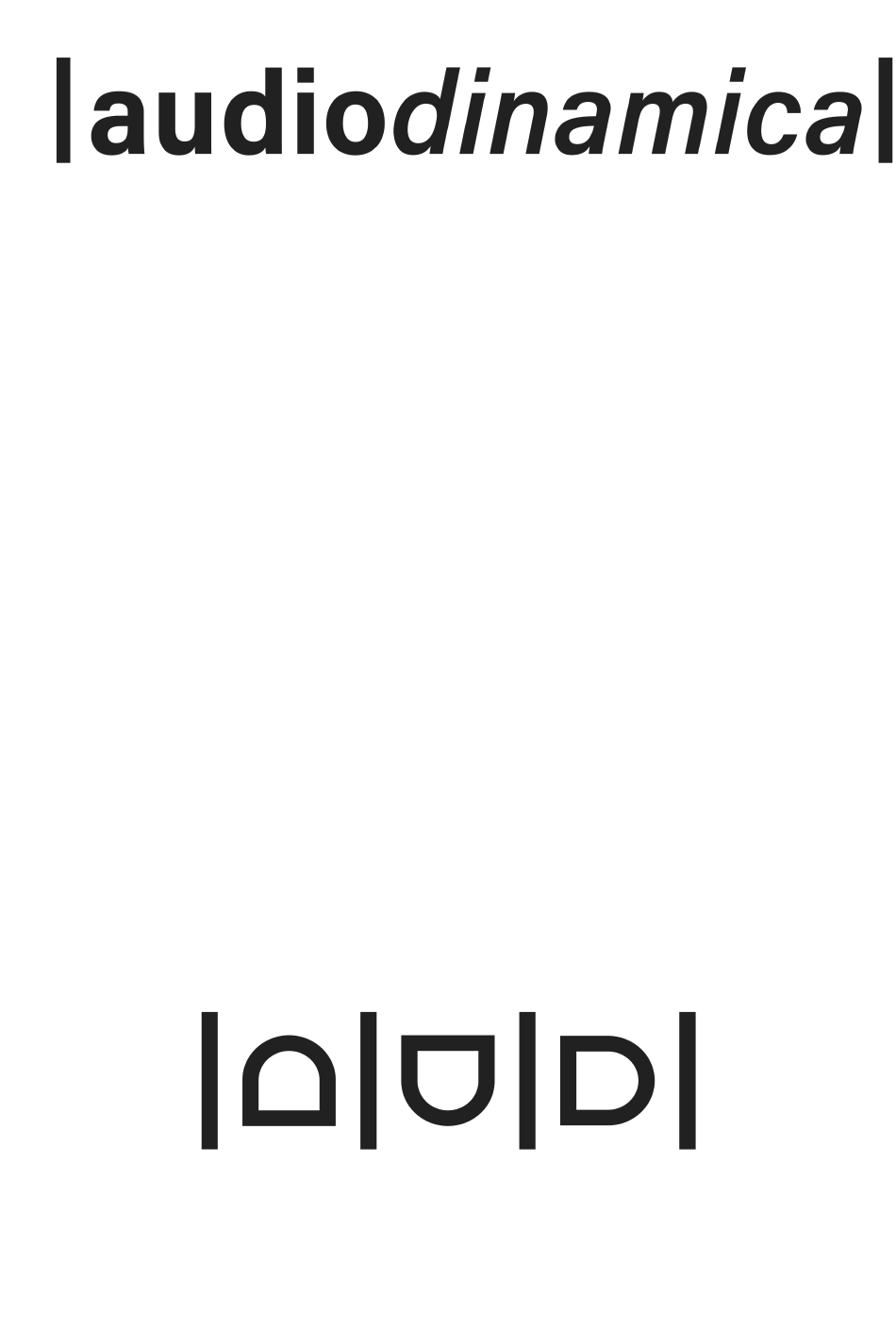

- Page 1 SUT N°3 MOVING COIL STEP UP TRANSFORMER INSTRUCTION MANUAL...
- Page 2 6. CAUTION AND IMPORTANT SAFETY INFORMATION 7. CE DECLARATION OF CONFORMITY AND DISPOSAL 8. WARRANTY INFORMATION 9. CONTACT INFORMATION This document and the information it contains are the property of IIA srl. It can not be reproduced or modified by third parties without IIA’s written approval. www.audiodinamica.com Page 1 of 11...
- Page 3 1. INTRODUCTION Dear Music Lover Thank you for choosing this Audiodinamica component. We sincerely appreciate your trust in our products. You have purchased a unit which excels in musical fidelity and combines uncompromising manufacturing quality with technical innovation and the highest degree of operating flexibility. With the correct care it should give you many years of pleasure and enjoyment. Please take the time to read all of the information in this manual before connecting your new component to an electrical supply or your system to ensure both your safety and satisfaction. It will enable you to make full use of all capabilities of this outstanding audiophile instrument.
-
Page 4: General Information
SUT, due to the superior immunity to noise of balanced connections. All Audiodinamica products use the AES standard for balanced connections: 1. Chassis; 2. Positive signal; 3. Negative signal. Do not connect pin 1 (chassis/ ground) to either pin 2 or 3 at any point in the cable, turntable chassis, or tone-arm. Pins 2 and 3 must only connected to the cartridge pins... - Page 5 “hum” from your audio system. In figure 2 is represented the right wiring scheme for RCA connection from cartridge to step up. Fig. 2 – Cartridge-step up connection through unbalanced cable. This document and the information it contains are the property of IIA srl. It can not be reproduced or modified by third parties without IIA’s written approval. www.audiodinamica.com Page 4 of 11...
- Page 6 RCA inputs and XLR outputs, or XRL inputs and RCA outputs. It is important to use good quality, shielded interconnects for all turntable connections; this will help to minimize any noise or hum problems. If your tonearm has a separate earth lead, connect it to the earth/grounding post located on the rear of the SUT N°3. It may also be worthwhile connecting this earth/ground post to the earth/ground post of your pre-amplifier/phonostage/amplifier (if one is available). This will often further reduce low level noise or ‘hum’, however this is not always guaranteed, so some experimentation is advised to ascertain the best arrangement. This document and the information it contains are the property of IIA srl. It can not be reproduced or modified by third parties without IIA’s written approval. www.audiodinamica.com Page 5 of 11...
- Page 7 0,1 – 0,2 mV 0,2 – 0,3 mV 0,3 – 0,4 mV 0,4 – 0,5 mV > 0,5 mV 12x – 22dB 24x – 28dB This document and the information it contains are the property of IIA srl. It can not be reproduced or modified by third parties without IIA’s written approval. www.audiodinamica.com Page 6 of 11...
-
Page 8: Maintenance
SUT n°3,your cartridge and the associated phonostage. Experimentation and listening sessions are always a good guidance to find your preferred tonal balance. 4. MAINTENANCE • Dust the unit surface with a clean, dry cloth. • Keep the connectors clean to obtain the best performance. Using alcohol as a cleaning solvent is acceptable. This document and the information it contains are the property of IIA srl. It can not be reproduced or modified by third parties without IIA’s written approval. www.audiodinamica.com Page 7 of 11... -
Page 9: Specifications
• Using detergent or benzene may cause surface discoloration and may result in malfunction. This document and the information it contains are the property of IIA srl. It can not be reproduced or modified by third parties without IIA’s written approval. www.audiodinamica.com Page 8 of 11... - Page 10 7. CE DECLARATION OF CONFORMITY AND DISPOSAL Audiodinamica declares that its products are in conformance with: • Low Voltage Directive 2006/95/EC • Electromagnetic Compatibility Directive 2004/108/EC • Restriction of Hazardous Substances (RoHS2) Directive 2011/65/EU • Waste of Electrical and Electronic Equipment • Directive 2012/19/EC Energy Using Product Directive 2009/125/EC Audiodinamica products comply with the following standards: • EN60065 - Audio, video and similar electronic apparatus - Safety requirements Products that display the crossed-out wheeled bin logo cannot be disposed of as domestic waste. These products must be disposed of at facilities capable of re-cycling them and appropriately handling any waste by-products. Contact your local authority for details of the nearest such facility. Appropriate recycling and waste disposal helps conserve...
-
Page 11: Warranty Information
Audiodinamica is not liable for any shipping and custom charges incurred whilst transporting the product to Audiodinamica or to an appointed Audiodinamica dealer or service engineer, should the item require service or repair during or after the Warranty period. Audiodinamica reserve the right to replace discontinued or special and limited edition products with a comparable unit or a refund. - Page 12 • Damage caused by improper or careless cleaning. • Damage caused to other components such as cartridges, preamplifiers, amplifiers, speakers, headphones, cables and any other piece of equipment connected to Audiodinamica components. In no event Audiodinamica liabilty will exceeed the original purchising price of the unit under warranty. Audiodinamica reserves the right to refuse warranty for any component of which the serial number has been removed, defaced or tampered with. This warranty does not extend to any incidental or consequential costs or damages to the purchaser. This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
