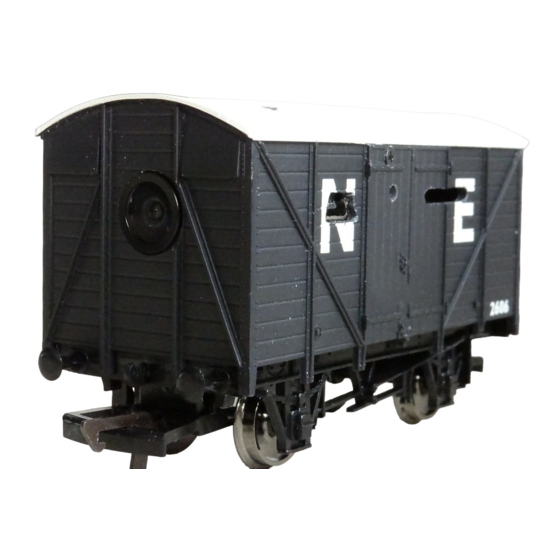

Branor Systems CamTruck Quick Start Manual

Branor Systems
Thank you buying this Branor Systems CamTruck. We hope you get as much enjoyment out of this novel
device as we had developing and using it.
Contents:
1. CamTruck:

2. Mini USB cable:

3. Switch Activator:

4. Memory Adapter

5. These instructions

Introduction:

We know you are keen to make videos of your layout but please take some time to get used to the operation of the
Cam Truck before attempting long recordings. Connect the truck with the supplied USB cable to your computer. The green light
on the roof of the truck will come on. The battery is now being charged but the PC will not recognise the truck yet!
Next, using the actuator, insert it into the on/off aperture on the truck roof. This is the one furthest from the front of the truck.
Gently press down on the actuator until the orange light comes on, then release. The computer should now recognise the truck as
a standard USB memory stick. On a Windows PC a window should appear giving the choice of 'open folder to view files' on the
truck. If this window does not appear then navigate through 'My Computer' to the Truck memory. This will be identified as

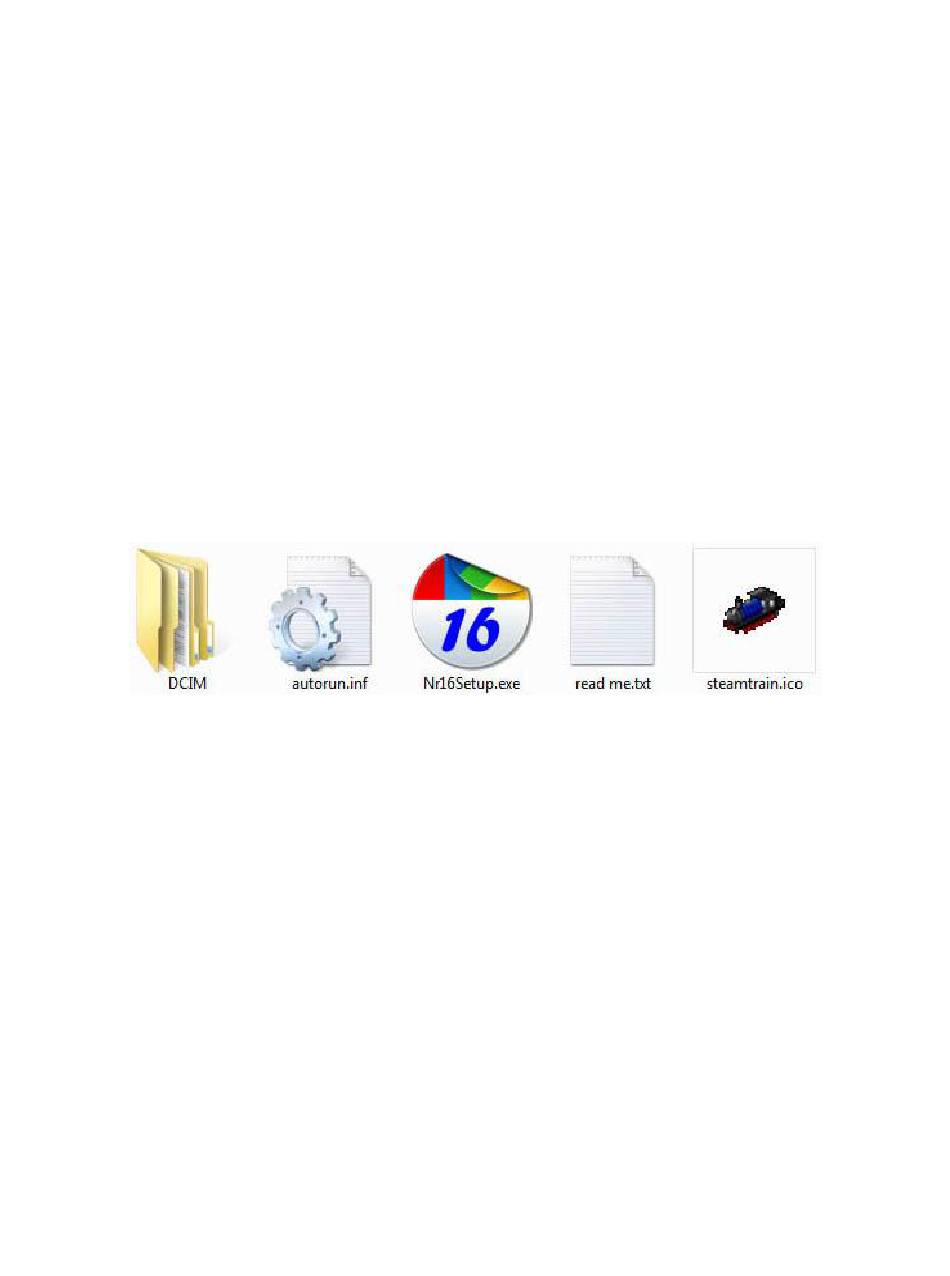

'Branor Systems HD2 Camtruck'. Once the truck memory is opened you should see the following files:
These files are important and they should be saved onto your PC. Now is a good time to create a folder to save your videos to.
E.G. 'Camtruck Videos'. Copy all the above files (except DCIM) to you chosen directory.
These files will allow you to create a duplicate memory card for the Camtruck and also change video options.
The file named 'Nr16Setup.exe' is used for this purpose. More about this later.
Video files are stored in the directory DCIM. Double Click on this to show the next directory 100HDDVR. Finally, double click
on this directory to view the stored video files. There will be some short test videos here and here would be a good opportunity to
test your computers ability to view them. Double click on the video files to view them. The video files have the extension MOV
which is an Apple Quick Time format. If you have a Microsoft Windows PC then Media Player should be able to view them. If
not, you can download a Quick Time viewer from:
http://www.apple.com/quicktime/download/
If you have an Apple Mac PC then Quick Time will be the native video format.
Once you have successfully viewed the test videos you can disconnect the Cam Truck using the safe USB disconnect procedure.
Remove the USB cable and the orange light will flash to red then turn off. It is advisable to now give the Camtruck a full charge
by reconnecting the USB cable. The yellow light will come on and the internal battery will be charged. The truck was fully
charged during manufacture but all rechargeable batteries self discharge over time and may require topping up. The yellow light
will turn off when the battery is fully charge, This can take up to 3 hours for a fully discharged battery.
HD Camera Trucks "CamTruck"
Packed in the original manufactures box.
For downloading videos to the PC and for charging the internal battery
Steel pin for pressing the internal switches and removing the memory card
For connecting the memory card to a PC directly. Not normally required
Please read them!
Congratulations, you are now ready to video your layout.
Last update 11-2-2012:
Hornby CTHD002
