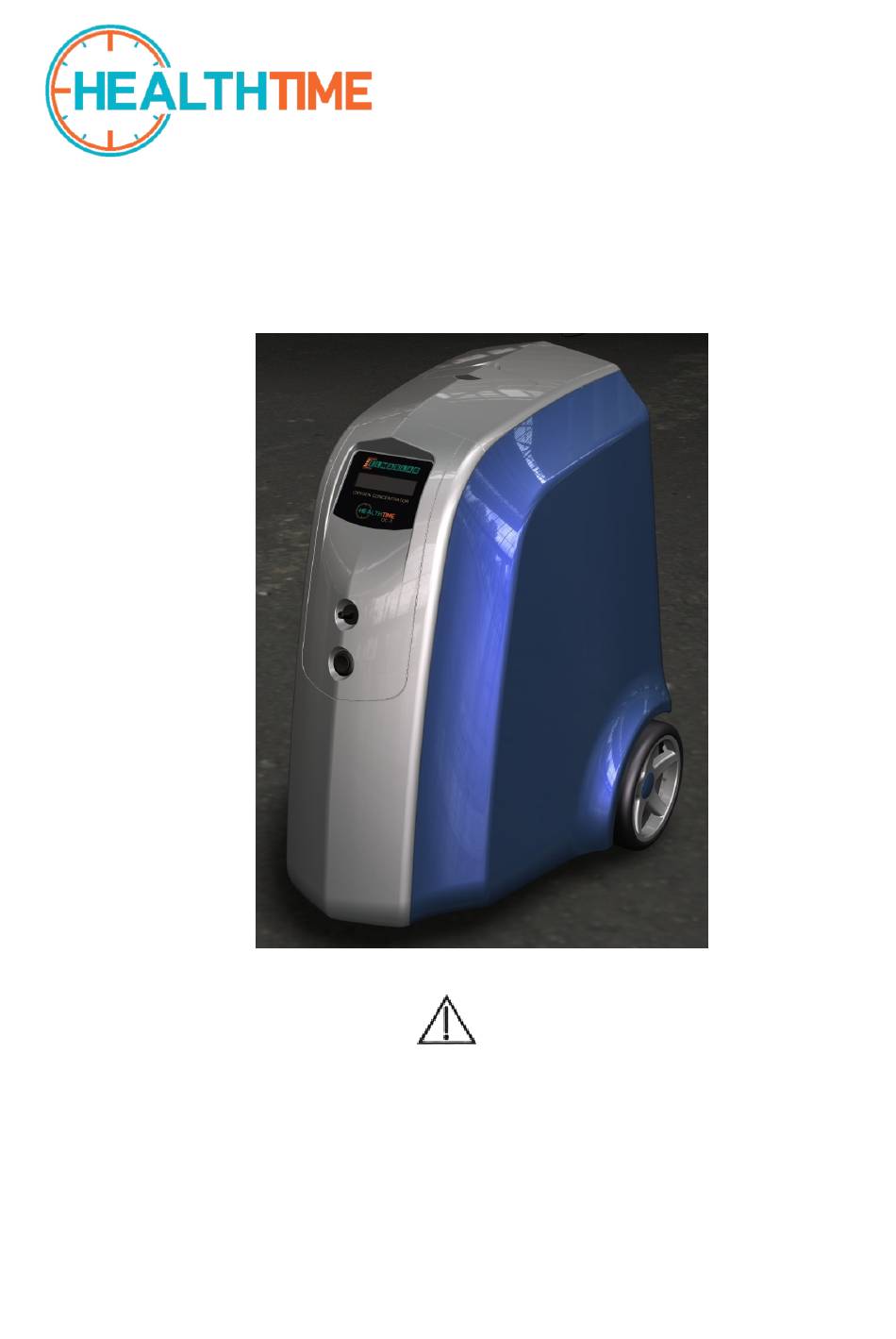

- Page 1 OXYGEN CONCENTRATOR USER GUIDE Please read this manual thoroughly before using the Device...
-
Page 2: Table Of Contents
CONTENTS: Subjects Page No. 1. General Information 2. Safety Guidelines 3. Starting-up/Installation 4. Operating Principles 5. Preventive Maintenance 6. Troubleshooting 7. Airflow Diagrams 8. Technical Characteristics 9. List of Accessories 10. Guarantee (terms & conditions) 11. Our other products 12. Certificates 13. -
Page 3: General Information

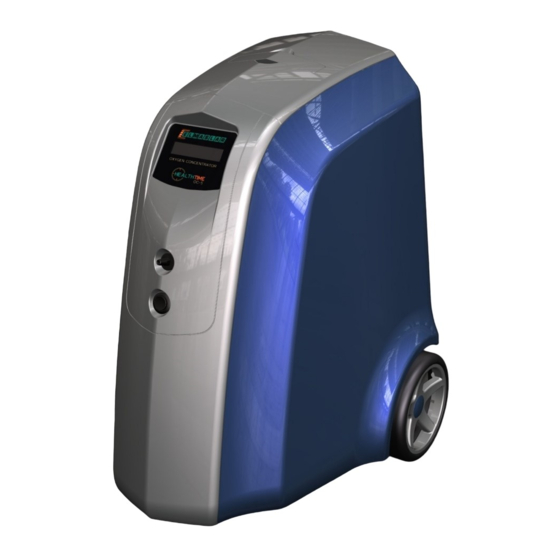

The HEALTHTIME / HEALTHTIME PLUS is easy to use. It has a Safety and Solid body, 2x16 LCD screen, digital timer to show total using time and outlet oxygen percentage (for OSD device only). -
Page 4: Starting-Up/Installation
To avoid all risk of fire do not smoke nearby the device and other accessories. HEALTHTIME / HEALTHTIME PLUS should be kept away from all flames, incandescent sources and sources of heat, as well as combustible products like oil, grease, solvents, aerosols, etc. -
Page 5: Operating Principles
Control the nasal cannula in a regular interval against twisting, leaking or bursting. Replace the damaged cannula with new one. Like most other electronic devices HEALTHTIME / HEALTHTIME PLUS too is very sensitive towards radio frequency waves (parasites), please be aware of using mobile phones when running the device. - Page 6 Replace the Nasal Cannula with a new one if there is a warning on LCD screen or once in every 30 days. CLEANING AND CHANGING OF WATER BOWEL: In every 7 days clean with soap and water and rinse properly and replace with a new one when there will be a warning on LCD screen or once in every 90 days.
-
Page 7: Airflow Diagrams
For problems net mentioned in this table, please consult with authorized technical service. AIRFLOW DIAGRAM:... -
Page 8: Technical Characteristics
TECHNICAL CHARECTERISTICS: OXYGEN FLOW RATE 0-5 LPM OXYGEN FLOW RATE ADJUSTMENT 0.5LPM OXYGEN CONENTRATION 92% ± 3 (5 lt./min.) OXYGEN SENSOR (OSD) YES (OPTIONAL) OUTLET PRESSURE 8 ± 1 PSI NOISE LEVEL 43 dBA VOLTAGE / CURRENT AC 230 V / 50-60 Hz / 1.60 A ± 10% POWER CONSUMPTION 290 WATTS ±... -
Page 9: List Of Accessories
LIST OF ACCESSORIES: NASAL Cannula: 1 Pc. Water Bowel: 1. Pc. Intermediate connecting Cannula: 1 Pc. GUARANTEEE TERMS & CONDITIONS: Guarantee period of the sold goods starts from the date of delivery to the consumer and valid for TWO (2) years. ... - Page 19 MANUFACTURER: ELMASLAR IMALAT TIBBI CIHAZLAR ITHALAT IHRACAT A.S ASO 1. ORGANIZED INDUSTRIAL ZONE, BABURSHAH STREET, NO. 1 SINCAN 06930 / ANKARA / TURKEY TEL: +90 312 394 8001 FAX: +90 312 394 8004 e-Mail: info@elmaslarmedikal.com.tr Web: http://www.elmaslarmedikal.com.tr...
