Summary of Contents for banded Axe

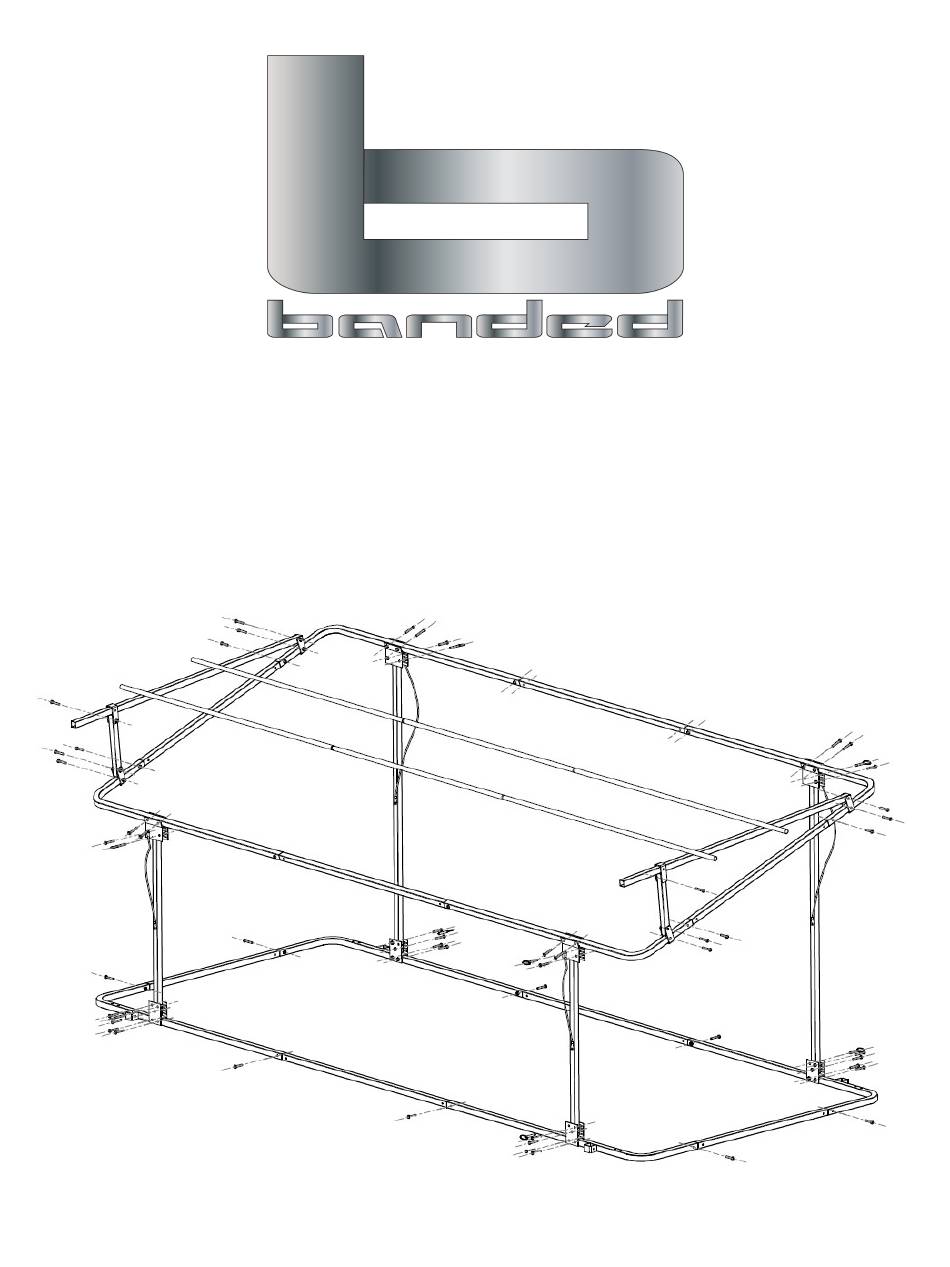

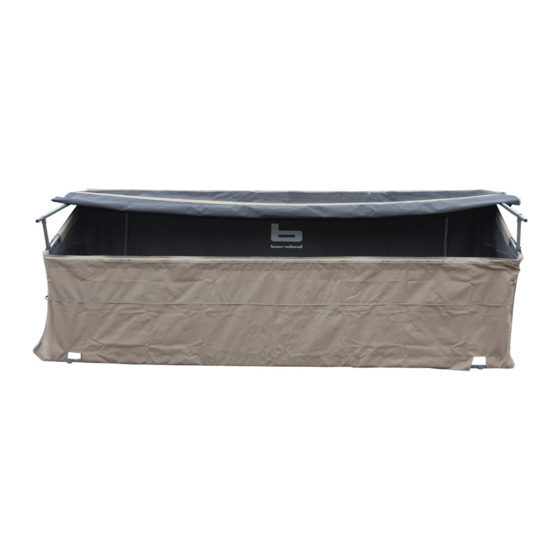

- Page 1 "Axe" Combo Boat/Shore Assembly Thank you for choosing the "Axe" Combo Boat/Shore Blind from Banded. Please follow the instructions below to assemble your blind. 1 ...
- Page 2 Part List: (L) l #1: Bolt and nut (M6x30mm) x 16pcs l #2: Bolt and nut (M6x37mm) x 28pcs l #3: Threaded RivNut x 4pcs with Setting Tool x 1pc l #4: Tools l #5: Sleeve tube for bolt x 8pcs ...
- Page 3 Step 1: Remove the frame from the packaging. Make sure you have the following components: (refer to drawing below for help identifying each piece) 3 ...
- Page 4 A (4pcs) - Bottom Corner Frames (With welded ground stake bracket) B (4pcs) – Front and Back Connect Frames C (4pcs) - Top Corner Frames D (2pcs) - Bottom Side Connect Frames E (2pcs) - Top Side Connect Frames F (2sets) - Back Vertical Frame Kits (Include bungee code, Aluminum hinges, Steel sleeve and Quick Pin sets) G (2sets) - Front Vertical Frame Kits (Include bungee code, Aluminum hinges, Steel sleeve and Quick Pin sets)
- Page 5 Step 3 Slide Bottom Corner Frame(A) into the bottom of Main Cover(M) from the right side and screw it to Connect Frame(B) with 1 Bolt Set (M6x30mm). Step 4 Repeat Step 2&3 to install the Bottom Corner Frame(A) & Connect Frame(B) to the bottom of the Front Panel(N) ...
- Page 6 Step 5 Slide Bottom Connect Frame(D) into the bottom of Main Cover(M) on both side and screw them to Bottom Corner Frame(A) with 2 Bolt Set(M6x30mm) on each side. 6 ...
- Page 7 Step 6 Repeat Step 2&3 to install the Top Corner Frame(C) & Connect Frame(B) to the top of the Main Cover(M) and Front Panel(N) 7 ...
- Page 8 Step 7 Install the "U" hinge of Roof Frame Kit(H) to Top Corner Frame(C) with Bolt set(M6x37mm) on both sides. Step 8 Slide the small frame sleeve to Top Corner Frame(C), install the "U" hinge of Roof Support Frame Kit(I) to Top Corner Frame(C) with Bolt set(M6x37mm) on both sides.
- Page 9 Step 9 Slide Top Connect Frame(E) to the Main Cover(M), screw the Top Connect Frame(E) to Top Corner Frame(C) with Bolt set(M6x37mm) on both side. Step 10 Install Front Vertical Frame Kit(G) to Bottom Corner Frame(A) & Top Corner Frame(C) with 2 Bolt Set(M6x37mm) on each Hinge.
- Page 10 Step 11 Install Back Vertical Frame Kit(F) to Bottom Corner Frame(A) & Top Corner Frame(C) with 2 Bolt Set(M6x37mm) on each Hinge. 10 ...
- Page 11 If you intend to use your blind primarily on a boat, Banded recommends you secure it to your boat with the provided threaded rivnut, and bolts. Securing your boat this way will afford safe transport and will significantly improve the function of your blind, especially when “popping it up and down”...
- Page 12 Repeat Step 4(c) until all of the threaded rivnut are in place. Return the Axe Blind to the boat and fasten it to the threaded rivnut with the provided M6 bolts. Use a hand tool to tighten the M6 bolts into the threaded rivnut. Do not over-tighten as it can damage and/or strip the threaded rivnut.
-
Page 13: Part List
*Axe Combo Boat/Shore Blind - 2XL Assembly Part List: #1: Bolt and nut (M6x30mm) x 24pcs #2: Bolt and nut (M6x37mm) x 32pcs #3: Threaded RivNut x 4pcs with Setting Tool x 1pc #4: Tools #5: Sleeve tube for bolt x 8pcs ... - Page 14 14 ...
