Deliverance MJH-A1 Operator's Manual

Mini jack hammer
Hide thumbs

Advertisement

Quick Links

Download this manual
MJH‐A1 Manual                                                                                                                 Feb 26,  2021

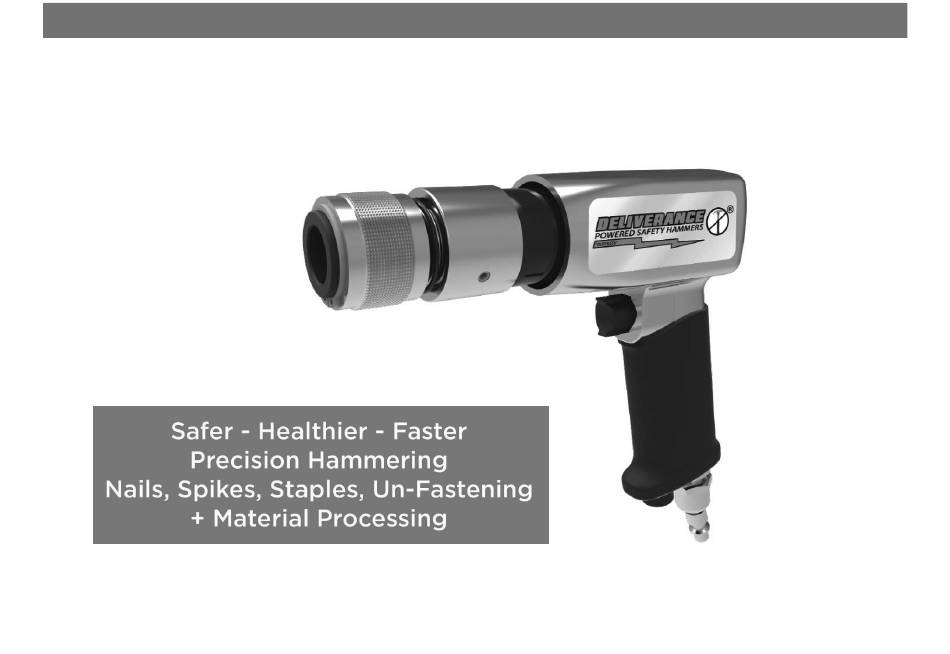

Operator's Manual:   Deliverance Mini Jack Hammer     Model  MJH‐A1
106273
See pages 11 and 12
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MJH-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Deliverance MJH-A1

  • Page 1 MJH‐A1 Manual                                                                                                                 Feb 26,  2021 Operator’s Manual:   Deliverance Mini Jack Hammer     Model  MJH‐A1 106273 See pages 11 and 12...
  • Page 2 MJH‐A1 Manual                                                                                                                 Feb 26,  2021 Table of Contents Safety Information ……………………………………………………..…………..Page 3 Product Specifications …………………………………………………..……..…Page 4 Operating Instructions …………………………………………………..………..Pages 5 & 6 Maintenance & Troubleshooting …………………………………………..…Page 7, 8 & 9 Exploded View, Quick Change Hammer Heads & Parts List……….Pages 10, 11 & 12...

  • Page 3: Safety Instructions

    MJH‐A1 Manual                                                                                                                 Feb 26,  2021 SAFETY INSTRUCTIONS TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR SERIOUS INJURY.

  • Page 4: Product Specifications

    MJH‐A1 Manual                                                                                                                 Feb 26,  2021 PRODUCT SPECIFICATIONS 51.00mm (2.00”) Length: 209.77mm (8.26”) Height: 173.43mm (6.83”) Width: 51.00mm (2.00”) 209.77mm (8.26”) Weight: 4.30 lbs Chisel Shank Diameter: .401” Tool Bit Retention: Quick Connect Bore Size: 20.68mm (.814”) Stroke Length: 44.00mm (1.73”) Blows per Second: 37 Adjustable Speed Control 173.43mm (6.83”) Air Inlet Thread: 1/4‐18 NPT Swivel Air Connector Air Hose: 3/8” Working Pressure: 90 PSI (at the tool’s Inlet)
  • Page 5 MJH‐A1 Manual                                                                                                                 Feb 26,  2021 Instructions: How To Load a Quick Change Hammer Head into the Tool   Nail Guide Pull back Spring  Release Spring  Loaded Collar Loaded Collar Fencing Staple Guide Insert Quick  Change  Hammer  Head Processing Tool with adapter for  Chiseling/Scraping/Hammering For standard Processing Tools, insert adapter onto shank  before inserting the Quick Change Hammer Head Adapter...
  • Page 6 MJH‐A1 Manual                                                                                                                 Feb 26,  2021 Instructions: How to Operate the Tool with Quick Change Hammer Heads  Please read all of the instructions and warnings carefully before operating the tool. Set the compressor output regulator to a pressure that will create 90 PSI at the end of the hose that the tool will be connected to. Push tool toward  work surface Pull the trigger Position the  tool so that  the Fastener  point or tip of  Processing  Tool is against  the work  surface Fastener  Guide work surface For Nail & Staple  Guides, Muzzle  Load Fastener into  Fastener Guide.  For  Processing Tools,  skip this step...

  • Page 7: Maintenance & Troubleshooting

    MJH‐A1 Manual                                                                                                                 Feb 26,  2021 Maintenance, Trouble Shooting If Tool Runs Slowly or will not operate Care & Maintenance 1) Always remove the tool from the air supply  1) If there is grit or gum in the tool, flush the tool with air‐tool  before performing any maintenance on the  oil or gum solvent. tool. 2) If there is no oil in the tool, add two or three drops of air‐ 2) To keep the tool properly lubricated, add two  tool oil into the air inlet fitting and then briefly operate the  or three drops of Air‐Tool Oil daily into the air  tool to distribute the oil throughout the tool. inlet fitting.  If tool is used heavily, add more  3) If air leaks from the inlet fitting, disconnect the tool from the  drops per day. air supply, remove inlet fitting, add thread sealant tape onto  3) If the tool is to be stored for an extended  the threads of the fitting and then re‐install inlet fitting. period of time, lightly lubricate the tool and  4) If moisture is observed spraying from the air tool exhaust,  briefly operate the tool to insure that the oil  water is likely inside the air compressor tank.  Disconnect air  has been distributed throughout the tool.   tool from hose.  Unplug compressor from electrical supply.   Store the tool in a clean, dry location, out of  Release air pressure from the compressor tank and drain  the reach of children. water from the air compressor tank. 5) Since air pressure drops through the hose, use a pressure  gage at the tool end of the hose and set the compressor  Add two or three drops of ...
  • Page 8 MJH‐A1 Manual                                                                                                                 Feb 26,  2021 If the Nail Guides and/or other Quick Change Hammer Heads become difficult to insert and remove  from the tool, the Quick Connect Coupler may need to be re‐aligned as described below. Procedure to re-align the Quick Connect Coupler on the MJH-A1 Tool Universal Nail Guide DPSH‐2010 Quick Connect  Coupler Three Set Screws Step 1: Remove the three set screws from the Quick Connect Coupler. Step 2: Slightly loosen the Quick Connect Coupler by unscrewing it slightly.
  • Page 9 MJH‐A1 Manual                                                                                                                 Feb 26,  2021 If the magnets need to be replaced, follow this procedure Add Epoxy all around  To further secure the Magnets in place, add a layer  circumference of the  of epoxy all around on top of the magnets also holes, then Insert  DPSH‐1387 Magnets Slightly lift up on the end of the Heat Shrink  Tubing to help lift it out of the recessed  diameter, then Slide the Heat Shrink Tubing to  expose the magnet holes Note: If need to replace the Heat Shrink  Tubing, see chart below showing replacement  part numbers for each of the four Nail Guides Slide the Heat Shrink Tubing back over the magnet holes...
  • Page 10 MJH‐A1 Manual                                                                                                                 Feb 26,  2021 Parts Exploded View & Parts List Shown on Page 11 Note: Item 34 DPSH‐1930  Adapter is a sub‐assembly  containing Adapter DPSH‐1867  Shown on and Internal O‐ring DPSH‐1869 Page 12...
  • Page 11 MJH‐A1 Manual                                                                                                                 Feb 26,  2021 Nail Guides and Hammer Heads DPSH‐2000 Spike Nail Guide DPSH‐2010 Universal (2‐1/2”) Nail Guide DPSH‐2020  1‐1/2” Joist Hanger Nail Guide DPSH‐2060  1‐1/2” Nail Guide for 7/16” Nail Heads DPSH‐2030  Fence Staple Guide (.500” Outside Crown x .131” Straight Leg) DPSH‐2050  Fence Staple Guide (.700” Outside Crown x .164” Straight Leg) DPSH‐1725  Flooring De‐Stapler DPSH‐1720  De‐Nailer DPSH‐1735  Fencing De‐Stapler...
  • Page 12 MJH‐A1 Manual                                                                                                                 Feb 26,  2021 DPSH‐1593 Conical Chipper DPSH‐1930 Adapter DPSH‐1736 3/4” Wide Un‐Nailer Chisel DPSH‐1930 Adapter DPSH‐1928 2” Wide Un‐Nailer Scraper DPSH‐1930 Adapter DPSH‐2015 Pounding Hammer with 25mm  Diameter Replaceable Polyurethane Face DPSH‐2015 DPSH‐1930 Adapter DPSH‐1900 Pounding Hammer with  35mm Diameter Flat Steel Face DPSH‐1900 DPSH‐1930 Adapter DPSH‐1905 Pounding Hammer with  35mm Diameter Convex Steel Face DPSH‐1905 DPSH‐1930 Adapter...
