ULTRAPORTABLE AND FOLDABLE
In order to make sure that it meets the requirement of the electromagnetic environment of the
aviation radio station, flying within the scope of 10 kilometers on each side by taking the airport
runway center line as the middle line is HIGHLY FORBIDDEN or flying within the scope of 20
kilometers by taking both ends of the runway as the center is HIGHLY FORBIDDEN. Flying on
the route of the airline is also PROHIBITED. Stop using all kinds of flying models or unmanned
Quad-rotors in the AREA that prohibited by related authority or department of our country.
Advertisement
Table of Contents

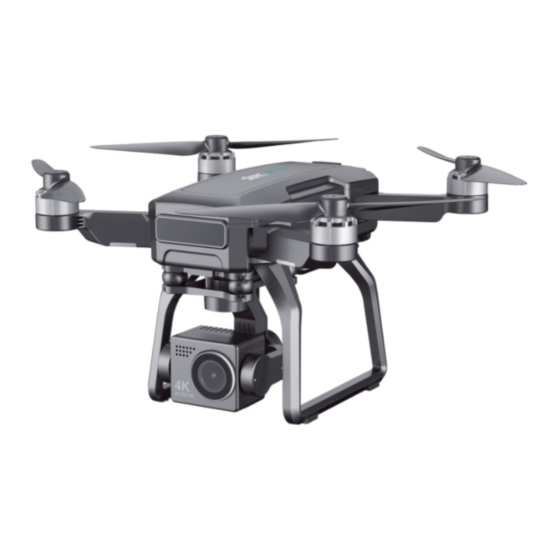

Summary of Contents for ARODI SJ R/C F7
- Page 1 ULTRAPORTABLE AND FOLDABLE In order to make sure that it meets the requirement of the electromagnetic environment of the aviation radio station, flying within the scope of 10 kilometers on each side by taking the airport runway center line as the middle line is HIGHLY FORBIDDEN or flying within the scope of 20 kilometers by taking both ends of the runway as the center is HIGHLY FORBIDDEN.
-
Page 2: Table Of Contents
CONTENTS PREFACE --------------------------------------------------------------------- 1—2 WARNING -------------------------------------------------------------------- 3—4 FLY SAFETY --------------------------------------------------------------------- 5 TRANSMITTER FUNCTIONS --------------------------------------------- 6 AIRCRAFT DIAGRAM -------------------------------------------------------- 7 1.ASSEMBLE THE PROPELLER ----------------------------------------- 7 2.INTELLIGENT FLIGHT BATTERY ------------------------------------ 8 3.CHARGING THE BATTERY --------------------------------------------- 8 4. LITHIUM BATTERY CHARGING INSTRUCTIONS ----------- 8 REMOTE CONTROL OPERATING METHOD ----------------------- 9 FLIGHT ----------------------------------------------------------------------- 9—11 COMPASS CALIBRATION ----------------------------------------------- 10... -
Page 3: Preface
Please operate and use only under the scope of the product function permitted. Using un-approved parts will void warranty. DO NOT use for any illegal purpose or use beyond the scope of which your local laws and regulations have stipulated. ARODI... - Page 4 • Consult the dealer or an experienced radio/TV technician for help. • Please note that changes or modifications not expressly approved by the party responsible for compliance could void the use’s authority to operate the equipment. ARODI...
-
Page 5: Warning
19. Please DO NOT make the battery short-circuited or decompose the battery or throw the battery into the fire; DO NOT place the batteries near the high temperature or heated area (such as near the fire or near the electric heating device). ARODI... - Page 6 WARNING: Product should only be used by adults and children 14 years and older. Adult supervision required for children under 14 years of age. WARNING: CHARGING OF THE AIRCRAFT BATTERY MUST BE SUPERVISED AT ALL TIMES BY AN ADULT. UNPLUG THE BATTERY WHEN FULLY CHARGED. DO NOT OVER-CHARGE THE BATTERY. ARODI...
-
Page 7: Fly Safety
7 m/s or 16 mph. No Fly Zone Stay away from the rotating propellers and motors. It’s important to understand basic flight guidelines, for the safety of both you and those around you. Don’t forget to read the Safety Guidelines before flight. ARODI... -
Page 8: Transmitter Functions
GPS signal intensity Remote control battery Remote control signal intensity Long-distance version Photo/video Speed Aircraft battery Status Display Distance Height D-speed V-speed Tip: When the transmitter is in low power, keeps flashing, now you need to charge the transmitter. ARODI... -
Page 9: Aircraft Diagram
Propeller "A" with screw wrench in counterclockwise direction and fix the propeller. Propeller "B" replacement: Take out the propeller "B" with the screw wrench in counterclockwise direction; then install the new Propeller "B" with screw wrench in clockwise direction and fix the propeller. ARODI... -
Page 10: Intelligent Flight Battery
2. INTELLIGENT FLIGHT BATTERY 1. Battery switch 2. Battery power indicator 3. Type-C charging port High Electricity — Hold the switch button for 3 sec. power on; then press the button for 3 sec. power off. — When the battery in low voltage,Blue indicators will be blinking, now please charge the battery. -
Page 11: Remote Control Operating Method
NOTE: Now you can connect the WIFI signal according to the APP instruction or waiting for the GPS calibration completed. Step 4: Connect APP — Connect your smart phone to the WIFI of aircraft and check the aircraft's status on the “SJ-F-PRO *** -BRG” APP. ARODI... -
Page 12: Compass Calibration
— Set the aircraft back down to level surface. — Lights return to slow-flashing green (back) + white (front) -- Means the aircraft is searching the GPS signal. — This process can take a few minutes. — App aircraft status: “Waiting for GPS signal”. ARODI... - Page 13 LED appears “R HRMD MODE”. Restart it and the left joystick change to the throttle stick. DOWN Left Stick Right Stick ARODI...
-
Page 14: Way Point Flight
NOTICE: The LED indicators on the front arms (white) and rear arms (green) keep slow-flashing if the GPS signal is weak; Keep pressing for 5 seconds on the remote control to exit the GPS mode, green light (back) turn to blinking + white light (front) turn to solid. -
Page 15: Product Functions Profile
WIFI signal inteference. GPS Follow-me function is not activated if the GPS signal weak or GPS positioning OFF in the mobile device. * Use in open area and be mindful of your surroundings. Aircraft is NOT equipped with obstacle avoidance. ARODI... -
Page 16: Image Recognition Follow Me/Gesture Control
The app´s RTH Button ②. Low-Battery return to home ③. RETURN-TO-HOME (RTH) Fail connection WARNING: This aircraft is NOT equipped with obstacle-avoidance. DO NOT power off the remote control in flight,or lose connection may caused so that RTH function will be activated. ARODI... -
Page 17: Trim Under No Gps Mode
Wait until the aircraft Status says “Ready to Fly” before initiating flight. This will ensure that your GPS is synced and your aircraft is ready to fly. Image follow GPS follow Music Lens angle Ges photo Ges record Route rules Filter Zoom ARODI... - Page 18 SD card status Photo/Video Switching GPS Return Home Shutter More Functions Media Gallery (One key to share) Height (meters) Distance (meters) Speed (meters/sec) Sound Recording Image follow GPS follow Music Lens angle Ges photo Ges record Route rules Filter Zoom ARODI...
- Page 19 , choose the social media you like to share the photos (Pic.3). Reminder: You can share 1 picture or 9 pictures at the same time. But Only one video can be shared each time. ARODI...
- Page 20 Default open for novice mode close for custom mode Flight distance default30m,(20-1200m) 30 m set the parameters in the APP from the Flight altitude default30m,(10-120m) 30 m Return altitude default20m,(10-120m) 20 m smart phone. Note: return altitude shall not exceed flight altitude ARODI...
-
Page 21: Camera Functions
CAMERA FUNCTIONS Take Photo Take Video ICON ON APP Click on the remote control, or click on the APP, the indicator will flash once, means the camera takes one photo. Click on the remote control, or click on the APP, the indicator will keep flashing, means the camera is recording. -
Page 22: Specifications
Video Format: MP4 Supported SD Cards: Micro SD card (Class 10/U1 or later) 32G-128G Supported File Systems: FAT32 ● 5G Transmission Operating Frequency: 5.15-5.35 GHz; 5.725-5.825 GHz Supported Transmission Protocol: 802.11a; 802.11n20; 802.11n40 Video Transmission Frame Rate: 15 FPS ARODI... - Page 23 Net Weight: 183 g / 6.5 oz Max Charging Power: 15W Max Charging Time: About 6.5 hours (Depending on Charging Power) Charging Temperature Range: 32° to 104° F ( 0° to 40° C ) ● Charging cable: Type-C Voltage: 5V Rated Power: ≤15 W ARODI...
-
Page 24: Parts List
2. The blades distorted. 2. Replace the blades. The quadcopter shakes The blades distorted. Replace the blades. heavily. 1. The blades distorted. Drone cannot stay balanced 1. Replace the blades. 2. The motor doesn’t work in flight. 2. Replace the motor. properly. ARODI...
Need help?
Do you have a question about the SJ R/C F7 and is the answer not in the manual?
Questions and answers
como cambiar las hélices
To change the propellers on the ARODI SJ R/C F7:
1. Identify the propeller type:
- Screws for A Propeller (Thread in BLUE)
- Screws for B Propeller (Thread in WHITE)
2. Use the correct screws and match the thread color for each propeller type.
3. Remove the old propellers by unscrewing them.
4. Install the new propellers using the appropriate screws (match thread color).
5. Ensure the propellers are securely fastened and not distorted.
6. Replace distorted blades to avoid shaking or balance issues.
This answer is automatically generated
**** cuanta carga se pueden guardar las baterias
The battery capacity for the ARODI SJ R/C F7 is 2600 mAh.
This answer is automatically generated
