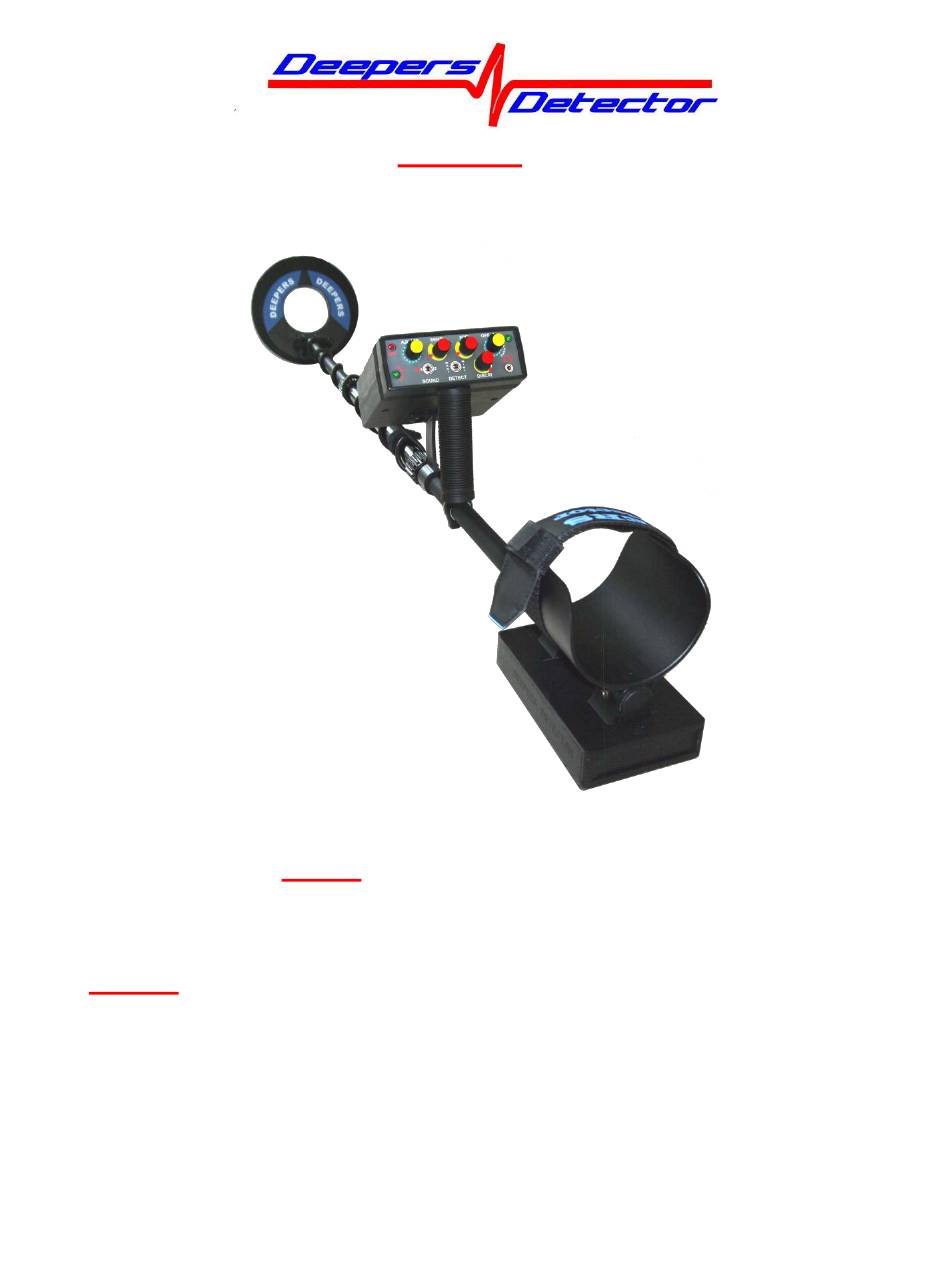

DEEPERS

PULSE INDUCTION METAL DETECTOR

2010 MODEL

Instruction Manual

You have acquired a new

Deepers

model 2010

manufactured by

LATINCOM SA ELECTRONICS

of the United States of Mexico. This is a quality product of

French

technology, under exclusive

license from

Deepers

Detector, which is widely recognized in more than 25 countries for the

performance and quality of its detection equipments.

The

metal detector is exceptionally powerful, utilizing 800 to 1100 Volts

Deepers

electromagnetic detection waves to reach even deeper than ever before. It is very compact,

simple to adjust and easily maneuverable, driven by the latest electronic and technological

advancements in the field of Pulse Induction detectors. It is the result of our knowledge and the

perfection of our expertise in this domain. This is certainly the most compact, powerful and

efficient Pulse Induction metal detector on the market.

Table of Contents

Need help?

Do you have a question about the Deepers X5 2010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Deepers Detector Deepers X5 2010

Page 1 DEEPERS ® PULSE INDUCTION METAL DETECTOR 2010 MODEL Instruction Manual You have acquired a new Deepers model 2010 manufactured by LATINCOM SA ELECTRONICS of the United States of Mexico. This is a quality product of French technology, under exclusive license from Deepers Detector, which is widely recognized in more than 25 countries for the performance and quality of its detection equipments.
Page 2 Electronic control box, armrest and the battery compartment are made of the highest quality ABS  Deepers accepts all the search coils manufactured by the Deepers Detector  Ultra penetration power: ...
Page 3: Table Of Contents
Content of the Manual Content of the basic package Page 4 Assembly Page 5 1. Commando Arm a. Telescopic Commando Arm b. Attaching the search coil to the lower shaft 2. Connecting the headphones Page 6 Quick Start Page 7 Detection signal –...
Page 4: Content Of The Basic Package
Content of the basic package 1. Deepers Electronic control box Commando Arm: Upper shaft with heavily reinforced nylon structure is carrying the electronic control box, armrest, battery compartment and handle Middle shaft made of Duralumin with two twistlocks on both ends Lower shaft is made of virtually unbreakable carbon fiberglass for carrying a search coil Standard round search coil of 20 cm (7.8 in) in diameter...
Page 5: Assembly
Assembly of DEEPERS 1. Commando Arm: a. Telescopic Commando Arm: First, assemble the telescopic shaft of the Commando Arm. Take the middle shaft and loosen the twistlocks by turning them counter-clockwise. Ensure that the two white pins inside of the twistlocks are pushed down. If not, slightly press them down with your finger to allow the passage of the telescopic shafts (refer to the picture).
Page 6: Connecting The Headphones
2. Connecting the headphones: Plug the headphones connector into the AUDIO SOCKET (bottom-right corner) on the front panel of the electronic box. The headphones are 15% more efficient in delivering a more precise audible signal than the internal speaker. The internal speaker is automatically silenced once the headphones are connected.
Page 7: Quick Start
Quick Start of Deepers Distance yourself away from all metal objects and at the minimum of 6 m (20 ft) away from any modern constructions made of reinforced concrete. Assemble the Commando arm (refer to “Assembly of the Commando Arm”) and connect the standard search coil (or any other coil made by Deepers) to the electronic box.
Page 8: Available Adjustments
Available Adjustments of Deepers Controls on the Front Panel   ON-OFF BALANCE to start the detector and GREEN LED (top-right corner) to indicate the determine the audio-threshold activation of the detector   AJUSTE to fine-tune the audio-threshold red LED alarms when the battery needs to be ...
Page 9: Elimination Of Small Trash Using Sensi Knob
a. Elimination of small trash using SENSI knob: Positioning the SENSI knob in the range outlined in the picture (between 3 and 7 o’clock), allows avoiding the detection of small trash such as nails, pull tabs, bottle caps and other scrap metals without losing the opportunity to locate important targets even if they are deep.
Page 10: Adjustment Of The Discrimination - Discri Knob
LED return to green. This system is exceptionally reliable, very simple and powerful, that is easily regulated according to the desired target to be discriminated without losing absolutely the depth penetration power of the detector (patent Deepers Detector). Important: If the...
Page 11: Choosing The Detection Mode - Mini And Maxi
6. Choosing the Detection mode - MINI and MAXI: Deepers is equipped with a new very practical system which makes it possible to choose between two modes of detection with the switch DETECT. It is possible to work with a maximum of power and ground penetration of the detector by positioning the switch on MAXI, which is appropriate particularly for the prospection in virgin lands with low mineralization or pollution, in the fields or forest, for example.
Page 12: Battery
Battery of DEEPERS 1. NiMH rechargeable battery: Power and energy are inseparable, outstanding power needs exceptional energy source; it is a fundamental rule in detection. For Deepers we used new technology of refillable NiMH batteries that offer multiple advantages: lightweight, great energy storage capacity allowing for 9 to 12 hours of continuous detection, quick recharge and replacement ease.
Page 13 (at least every 3 months). Never use accessories that are not manufactured by Deepers Detector, because they would most likely damage the detector, create high electronic tension or overheat it, which would destroy the detector.
Page 14: Detection Techniques
Detection Techniques with DEEPERS 1. Detection on the beach: When metal detecting on the beach, position the SENSI knob between the 3 and 5 o’clock, in this mode the detector will not detect any beer or soda bottle caps (the plague of metal detection). You will not get an audio response on these but will still be able to flawlessly detect lost valuables items and coins.
Page 15: Pinpointing
a. Pinpointing: To determine the exact location of the detected target, you should localize the place directly underneath the search coil that corresponds with the strongest sound heard. You should repeat the same procedure but change your position by 90°. The maximum sound registered corresponds with the center of the target.
Page 16: Semiautomatic "Ground Sensor" System
4. Semiautomatic “Ground Sensor” System: Deepers is equipped with a semiautomatic “Ground Sensor” system that permits a search with a relatively easy maintenance of the audio-threshold chosen by the user, which in turn provides substantial stability to the detector. Once in awhile you can readjust the audio- threshold with the AJUSTE potentiometer.
Page 17: Search Coils
This technologically advanced coil is manufactured with special Litz wires of the purest quality copper 99.9%. There are other companies that manufacture DD coils for Pulse Induction detectors, but only two in the entire world, Minelab and Deepers Detector, offer these coils made with Litz wire.
Page 18: Using The Wand Coil (Option)
observe the prospected ground. Made of great Deepers’ quality material, proven to be very resistant, handles being bumped against rocks or trees, and is submersible under water (coil only, but not the electronic control box). The dimensions are 53 x 25 cm (21 x 10 in). 4.
Page 19: Sensitivity Adjustment With The Frame Coil
3m (10 ft), and a target the size of a 55 gallon barrel at a depth of 3.5 m (12 ft) (a petroleum barrel). All of this available options are manufactured by Latincom-Mex SA with exclusive license Deepers Detector/Chatillon Maintenance Deepers does not need any special maintenance.
Page 20: General Characteristics
éléments hors garantie). Transport aller et retour en cas de retour à nos ateliers pour réparation ou réglage, à la charge du client. Document non contractuel: Deepers Detector et Latincom Electronique SA se réservent le droit de modifier parties des caractéristiques techniques annoncées notamment pour une amélioration de la performance de ses matériels.
