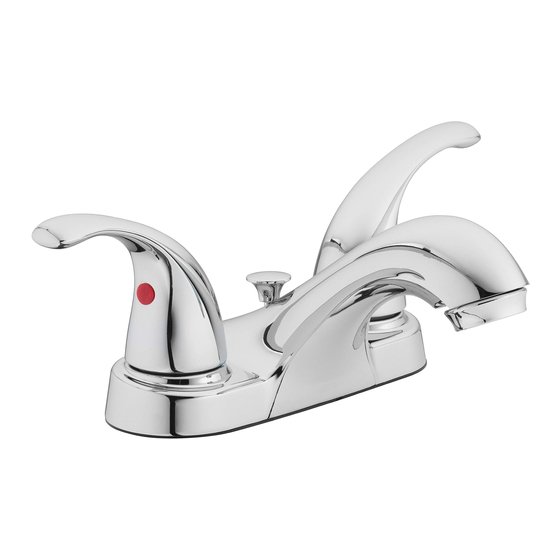

Aquavista 15-B42WP-CH-A Assembly

BATHROOM FAUCET WITH POP-UP DRAIN
ASSEMBLY
15-B42WP-CH-AV – Polished chrome finish
15-B42WP-BN-AV – Brushed nickel finish
15-B42WP-PB-AV – Polished brass finish

PACKAGE AND HARDWARE CONTENTS

PART DESCRIPTION
A Faucet assembly
B Lift rod assembly
C Pop-up drain assembly
D Mounting nut

SAFETY INFORMATION

Please read and understand this entire manual before attempting to
assemble, operate or install the product.
WARNING
• Protect your eyes with safety glasses when cutting or soldering water
supply lines.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare
parts with package and hardware contents list. If any part is missing or damaged, do
not attempt to assemble the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 30 minutes
Tools required for assembly (not included): adjustable wrenches, groove joint
pliers, pipe wrench, Phillips screwdriver, supply lines, thread seal tape, silicone.
Need Help? Please call our toll-free line at (877) 319-3757 (7:30 a.m. to 4:30 p.m. CST) for additional assistance or service.
Homewerks Worldwide, LLC • Lake Bluff, IL 60044 • HomewerksWW.com
QUANTITY
1
1
1
2
CAUTION
• If you solder the joints during installation, the seats, cartridges, and washers
must be removed before using a flame or the warranty will be voided on
these parts.
• Cover the drain to avoid losing parts.
Installation may vary depending on how the previous faucet was installed.
Supplies necessary for the installation of the faucet are not all included;
however, they are available wherever plumbing supplies are sold.
Prior to beginning installation, turn off the hot and cold water lines, then turn
on the old faucet to release built-up pressure. When installing the new faucet,
hand tighten the connector nuts. DO NOT OVERTIGHTEN. Connections
that are too tight will reduce the integrity of the system.
A
B
D
C
11-26-2019
