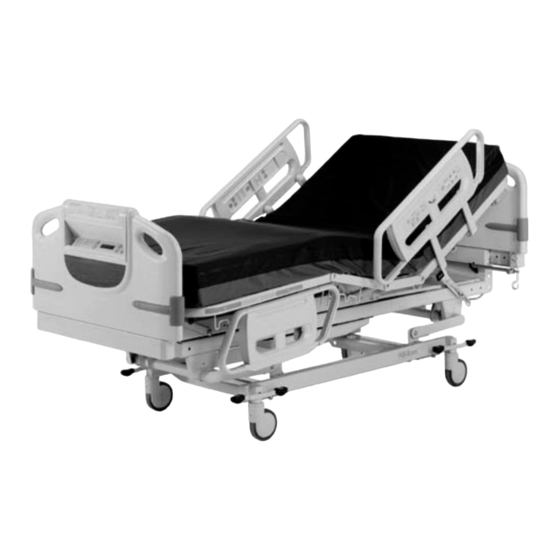

USER MANUAL
Advanta
Bed
™
From Hill-Rom
Product No. P1600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hill-Rom Advanta and is the answer not in the manual?

Questions and answers

Related Manuals for Hillenbrand Hill-Rom Advanta

Summary of Contents for Hillenbrand Hill-Rom Advanta

  • Page 1 USER MANUAL Advanta ™ From Hill-Rom Product No. P1600...
  • Page 2 © 2002 by Hill-Rom Services, Inc. ALL RIGHTS RESERVED. No part of this text shall be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information or retrieval system without written permission from Hill-Rom Services, Inc. (Hill-Rom). Third Edition First Printing 1999 Printed in the USA...

  • Page 3: Table Of Contents

    Table of Contents Typographical Conventions ....1 Back Light ......15 Introduction .
  • Page 4 Table of Contents Drainage Bag Holders ....32 Operating Precautions ....44 Restraint Holders .

  • Page 5: Typographical Conventions

    Typographical Conventions Typographical Conventions This manual contains different typefaces and icons designed to improve readability and increase understanding of its content. Note the following examples: • Standard text—used for regular information. • Boldface text—emphasizes a word or phrase. • NOTE:—sets apart special information or important instruction clarification. •...

  • Page 6: Introduction

    Introduction Introduction Optional ZoneAire® Mattress Caregiver siderail Patient siderail control panels control panels Removable Removable Speaker headboard footboard (can be used for emergency CPR) Caregiver footboard control panel Removable IV pole Optional Patient Position Monitoring (PPM) system Optional bed scale Drainage bag Central Brake and Steer holders...

  • Page 7: Technical Specifications

    Technical Specifications Technical Specifications Table 2. Technical Specifications EATURE IMENSION Total length 91” (231 cm) Retracted length 78.5” (199.4 cm) Mattress support width 35” (89 cm) Mattress support length 83” (211 cm) Maximum width (siderails stored) 36” (91 cm) Maximum width (siderails up) 42.75”...

  • Page 8: Siderail And Footboard Controls

    Siderail and Footboard Controls Siderail and Footboard Controls The head end siderails and the footboard contain most of the bed controls. The following tables list the caregiver controls for the siderails and footboard, and the patient controls for the siderails. The tables also indicate whether the item is standard or optional.
  • Page 9 Siderail and Footboard Controls Caregiver Footboard Controls—Standard NTERTAINMENT AND IGHTING Siderail Back Lighting On/Off Night Light On/Off TV/Radio On/Off (Audio Mute) IDERAIL OCKOUTS Siderail Head Siderail Knee Siderail Hi-Lo All Motors OSITION ONTROLS Bed Up/Bed Down Trendelenburg/Reverse Trendelenburg Chair In/Chair Out NDICATORS Motor Power Off Ground Loss...

  • Page 10: Caregiver Controls

    Caregiver Controls Caregiver Controls CPR Release The CPR Release allows the caregiver to save valuable time in an emergency situation. When activated, the CPR Release automatically lowers the head section of the bed to the flat position, enabling emergency procedures to be performed without unnecessary loss of time.

  • Page 11: Resetting The Cpr

    Caregiver Controls Resetting the CPR If the head section stops lifting, but the head motor runs for a brief amount of time; the CPR needs to be reset. WARNING: Unplug the bed from its power source before inserting the IV rod for manual operation. Unexpected resumption of power can cause the IV rod to rotate and cause injury.

  • Page 12: Braking

    Caregiver Controls Braking When the brakes are engaged, all four wheels lock, and the Brake Not Set indicators on the bed stop flashing. When the brakes are not engaged, the casters rotate, and the Brake Not Set indicators flash continuously. Location: At each caster on the bed.

  • Page 13: Neutral

    Caregiver Controls Neutral In the neutral position, the swivels and casters move freely, allowing the bed to be moved in any direction. This function is used for exact positioning of the bed and maneuvering in confined areas Location: At each caster on the bed. To Activate: At any wheel, push either the orange or green pedal down slightly until the pedal is flat (in a horizontal position).

  • Page 14: Head Section

    Caregiver Controls Head Section The Head Up/Head Down controls enable you to raise or lower the head section of the bed. The head section of the bed can be raised to any desired angle of inclination up to 65°. Using the head angle indicator (see “Head Angle Indicator”...

  • Page 15: Trendelenburg/Reverse Trendelenburg

    Caregiver Controls Trendelenburg/Reverse Trendelenburg The Advanta™ Bed can achieve up to 11° of Trendelenburg or Reverse Trendelenburg. You can activate the Trendelenburg and Reverse Trendelenburg controls at any bed height, and the bed adjusts its height as necessary. Location: Footboard control panel. To Activate: Press and hold the Trend key to place the bed into the Trendelenburg position.

  • Page 16: Siderail Back Lighting

    Caregiver Controls To Activate: Press and hold the Chair In key to place the bed in the chair position. Press and hold the Chair Out key to place the bed in the flat position. NOTE: The head, knee, and hilow functions may be used to articulate the bed out of the chair position. However, once the hilow function has been activated, the Chair Out function may not operate as described above.

  • Page 17: Sensor Control (Night Light)

    Caregiver Controls When the green indicator light on Night Light key is on, the function is active. Night Light Key Sensor Control (Night Light) The night light Sensor Control is located at the foot end of the bed frame, on the right-hand side. This control allows you to set the level of light at which the night light will come on.

  • Page 18: Knee Section Lockout

    Caregiver Controls Knee Section Lockout When activated, the Siderail Knee lockout control disables the Knee Up and Knee Down movement of the bed. Location: Footboard control panel. To Activate: Press and release the Siderail Knee lockout key. To Deactivate: Press and release the Siderail Knee lockout key. Lockout Controls NOTE: When the Siderail Knee function is locked out, the green light on the Siderail Knee lockout key illuminates.

  • Page 19: Tv/Radio On/Off (Optional)

    Caregiver Controls TV/Radio On/Off (Optional The TV/Radio on/off key turns on and off the audio for the television and radio. Location: Footboard control panel. To Activate: Press and release the TV/Radio key. The indicator light illuminates, and the television and radio audio are activated. The television and radio volume controls on the patient siderail control panels are now operational.

  • Page 20: Nurse Call (Optional)

    Caregiver Controls Nurse Call (Optional) On Advanta™ Beds equipped with the optional Nurse Call feature, use the Nurse button to activate the Nurse Call. Nurse Call Location: Outside left siderail, outside right siderail; Button Left patient siderail, right patient siderail. To Activate: Press and release the Nurse button.

  • Page 21: Ppm Operation For A Model Beds (P1600A)

    Caregiver Controls PPM Operation for A Model Beds (P1600A) Enable (Key) Adjustments to the Mode and Volume controls are possible only when pressing and holding the Enable key. This feature allows for easy access to the PPM controls, while reducing the potential for accidental Enable or intentional use by unauthorized personnel.
  • Page 22 Caregiver Controls Out Of Bed Mode: The Out of Bed mode sets off an alarm when a patient’s weight shifts significantly off the frame of the bed. This mode should be used when a caregiver wants the patient to be able to move freely within the bed, but to be alerted when the patient leaves the bed.
  • Page 23 Caregiver Controls • Ensure that the patient is centered on the mattress and lying still and that no visitors or caregivers are inadvertently moving the bed or affecting the bed scale (i.e., resting a hand or arm on a siderail or headboard).
  • Page 24 Caregiver Controls NOTE: When activated in the Position mode and the PPM detects patient movement, an audible alarm sounds from the bed, the top Position light begins flashing, and a repeating nurse call is sent. If the patient leaves the bed, the Out of Bed light begins flashing.

  • Page 25: Ppm Operation For B Model Beds (P1600B)

    Caregiver Controls PPM Operation for B Model Beds (P1600B) Enable (Key) The Enable switch is only used to disable the system. The PPM system can be turned off or deactivated by pressing and holding the Enable switch and any Mode switch. Enable System Power Turning on the system:...
  • Page 26 Caregiver Controls Out Of Bed Mode: The Out of Bed mode sets off an alarm when a patient’s weight shifts significantly off the frame of the bed. This mode should be used when a caregiver wants the patient to be able to move freely within the bed, but to be alerted when the patient leaves the bed.
  • Page 27 Caregiver Controls To Activate: Perform the following steps:. • Ensure that the patient is centered on the mattress and lying still and that no visitors or caregivers are inadvertently moving the bed or affecting the bed scale (i.e., resting a hand or arm on a siderail or headboard). •...

  • Page 28: Sleep Surface Controls (Optional)

    Caregiver Controls Changing the Volume Level To change the volume level, make sure the PPM system is on; then press and hold the desired Volume switch until the LED next to the volume switch is illuminated (approximately 1 second). Changing the Alarm Tone: The caregiver may wish to change the alarm tone in order to distinguish the PPM alarm from other pieces of equipment that have audible alarms.

  • Page 29: Zoneaire® Sleep Surface

    Caregiver Controls ZoneAire® Sleep Surface Pressure Relief The Pressure Relief mode is for patients who are assessed to be at risk for pressure ulceration, and who require pressure relief. In the Pressure Relief mode, the air pressure in each zone of the mattress is automatically maintained to optimize the interface pressure.

  • Page 30: Bed Scale (Optional)

    Caregiver Controls Bed Scale (Optional) The Advanta™ Bed scale has an accuracy of 1%, and an operating range of 0 to 450 lb (0 to 204 kg). The scale display and six scale keys are located on the footboard control panel. For best results using the scale, follow the instructions carefully.

  • Page 31: Changing The Unit Of Measure

    Caregiver Controls NOTE: If there is a list of bed items, you may want to update the list at this time. • After you have changed all the desired items on the bed, press and release the Change Items key. The scale will resume displaying the patient’s weight.

  • Page 32: Indicator Lights

    Caregiver Controls Indicator Lights Indicator lights are used to inform caregivers of important information concerning the Advanta™ Bed. Most of the indicator lights are located on the footboard control panel. Motor Power Off: The Motor Power Off indicator light illuminates when the All Motors lockout is activated.

  • Page 33: Standard Features

    Standard Features Standard Features Headboard The headboard is connected to the bed frame at the head end of the bed. The headboard can be removed to gain increased access to the patient’s upper body area, and can be used as an emergency backboard during CPR procedures.

  • Page 34: Siderails

    Standard Features NOTE: Between the connector pin sockets on the footboard is a “key.” The footboards can be exchanged between the Advanta™ Beds as long as both exchanging beds either have air mattresses, or both do not. CAUTION: If the footboard does not sit completely down on the Advanta™ Bed, do not force it down. Footboard or connector damage could result.

  • Page 35: Foot Section

    Standard Features WARNING: Siderails are not intended to be used as restraint devices. The appropriate medical personnel should determine the level of restraint necessary to ensure that a patient will remain safely in the bed system. WARNING: Although the siderails have been designed to reduce the risk of patient entanglement, the potential exists, particularly with patients who are agitated or disoriented as well as patients who lack the physical strength to extract themselves if they become entangled.

  • Page 36: Drainage Bag Holders

    Standard Features Drainage Bag Holders The Advanta™ Bed has 4 drainage bag holders—two centrally located at the sides of the bed, and two at the foot end. The holders are recessed under the bed frame to allow for normal siderail operation. The drainage bag holders can accommodate any combination of the following drainage devices: •...

  • Page 37: Iv Pole

    Standard Features IV Pole The Advanta™ Bed comes equipped with one IV pole, stored at the head end of the bed beneath the articulating frame, and four standard IV pole sockets. The IV pole sockets are located at each corner of the bed at the head and foot sections.

  • Page 38: Equipment Bracket

    Standard Features Equipment Bracket Slide the equipment bracket over the top of the footboard and use it to hold charts, air mattress products, or other equipment that require a convenient location at the foot end of the bed. CAUTION: Do not exceed the 40 lb (18 kg) weight capacity of the equipment bracket. Equipment Bracket Mounting Manual Operation The Head and Hi-Lo functions of the bed may be...

  • Page 39: Optional Features

    Optional Features Optional Features Sleep Surfaces The Advanta™ Bed can be equipped with three different mattresses. Each mattress is designed for the needs of the patient, and the selection of which mattress to use depends upon the patient’s risk for pressure ulceration. Risk categories and recommended mattresses include: •...

  • Page 40: Accessory Ac Receptacle Option (120 V Beds Only)

    Optional Features NOTE: Refer to the mattress control panel to determine the active surface mode. An illuminated indicator shows the active mode. CAUTION: A sound risk assessment and protocol is necessary to determine the appropriate surface for the patient’s condition. CAUTION: The sleep surface impermeability and pressure relieving capabilities could be affected by needle sticks or other bladder punctures.

  • Page 41: Accessories

    Accessories Accessories Permanent IV Poles The Permanent IV Poles option consists of two IV poles that support up to two IV pumps plus bags. The IV poles are attached to the bed frame near the corners of the headboard. Each IV pole can support up to 40 lb (18 kg). To Deploy: •...

  • Page 42: Oxygen Tank Holder

    Accessories Oxygen Tank Holder The oxygen tank holder attaches to the head end of the articulating frame in a vertical position. The Oxygen Tank Holder accommodates one “E” size oxygen tank with a regulator. The mounting points are located to enable the oxygen tank holder to pivot. Installation: Install the mounting bar vertically into a mounting socket at the head end of the bed frame.

  • Page 43: Patient Controls-Standard

    Patient Controls—Standard Patient Controls—Standard Bed Functions The Advanta™ Bed is equipped with both head and knee function controls on the patient side of each head end siderail. NOTE: To prevent a patient from using the bed functions, activate the appropriate lockout on the footboard control panel. Head Section The patient can use the Head Up/Head Down controls to raise or lower the head section of the bed to the desired position.

  • Page 44: Patient Controls-Optional

    Patient Controls—Optional Patient Controls—Optional Advanta™ Bed Siderail (Patient Side) Nurse Call On Advanta™ Beds equipped with the optional nurse call feature, use the Nurse button to place a call to the nurse call system. Above the Nurse button, the Call indicator light illuminates on the patient’s siderail controls, indicating a call has been made.

  • Page 45: Resetting The Pillow Speaker Connector

    Patient Controls—Optional Resetting the Pillow Speaker Connector If a pillow speaker is being used and it becomes disconnected, a Nurse Call will be placed. To cancel the Nurse Call, reset the pillow speaker connector. Location: Head end, left of the SideCom® communication connector. To Reset: Press the switch in and turn it clockwise one-eighth of a turn.

  • Page 46: Channel Controls

    Patient Controls—Optional Channel Controls The optional Channel controls are used to select channels, or stations, on the TV or Radio. Location: Left patient siderail, right patient siderail. To Activate: Press and release the Channel up or down, as desired. Channel Controls Volume Controls The optional Volume controls are used to change the volume on the TV or Radio.

  • Page 47: Safety

    Safety Safety Bed Positions WARNING: Make sure the bed is in the low position when the patient is unattended. This can reduce the possibility of patient falls and the severity of any resultant injuries. Siderails WARNING: Siderails are not intended to be used as restraint devices. Medical personnel should determine the appropriate use of siderails and ensure patient safety.

  • Page 48: Electricity

    Safety Electricity CAUTION: Unplug the bed from its power source before cleaning or service. Failure to do so could result in personal injury or equipment damage. CAUTION: Establish policies and procedures to train and educate your staff on the risks associated with electrical equipment.

  • Page 49: Transport

    Safety Transport CAUTION: The Advanta™ Bed is intended to be used to transport patients with the foot end of the bed forward. Prior to transport, properly store the power cord to help prevent tripping. Use only the headboard transport handles to move the bed during transport.

  • Page 50: General Cleaning/Disinfecting

    General Cleaning/Disinfecting General Cleaning/Disinfecting WARNING: Follow the product manufacturer’s instructions. Failure to do so could result in personal injury or equipment damage. SHOCK HAZARD: Unplug the unit from its power source. Failure to do so could result in personal injury or equipment damage. SHOCK HAZARD: Do not expose the unit to excessive moisture that would allow for liquid pooling.

  • Page 51: Cleaning Sleep Surfaces

    General Cleaning/Disinfecting Cleaning Sleep Surfaces To clean the sleep surfaces, use the following guidelines: • Activate the Auto Firm function. • Unplug the bed from its power source. • To clean directly beneath the sleeping surface at the head end, lift the head end of the mattress. •...

  • Page 52: Patient Education

    Patient Education Patient Education...
  • Page 53 Patient Education NOTES:...
  • Page 54 1069 STATE ROUTE 46 E Hill-Rom Services, Inc. (Hill-Rom) reserves the right to make BATESVILLE, IN 47006-9167 USA changes without notice in design, specifications, and models. The only warranty Hill-Rom makes is the express written Rental: (800) 638-2546 warranty extended on the sale or rental of its products. USA: (800) 445-3720 The information in this manual is confidential and may not be Canada: (800) 267-2337...
