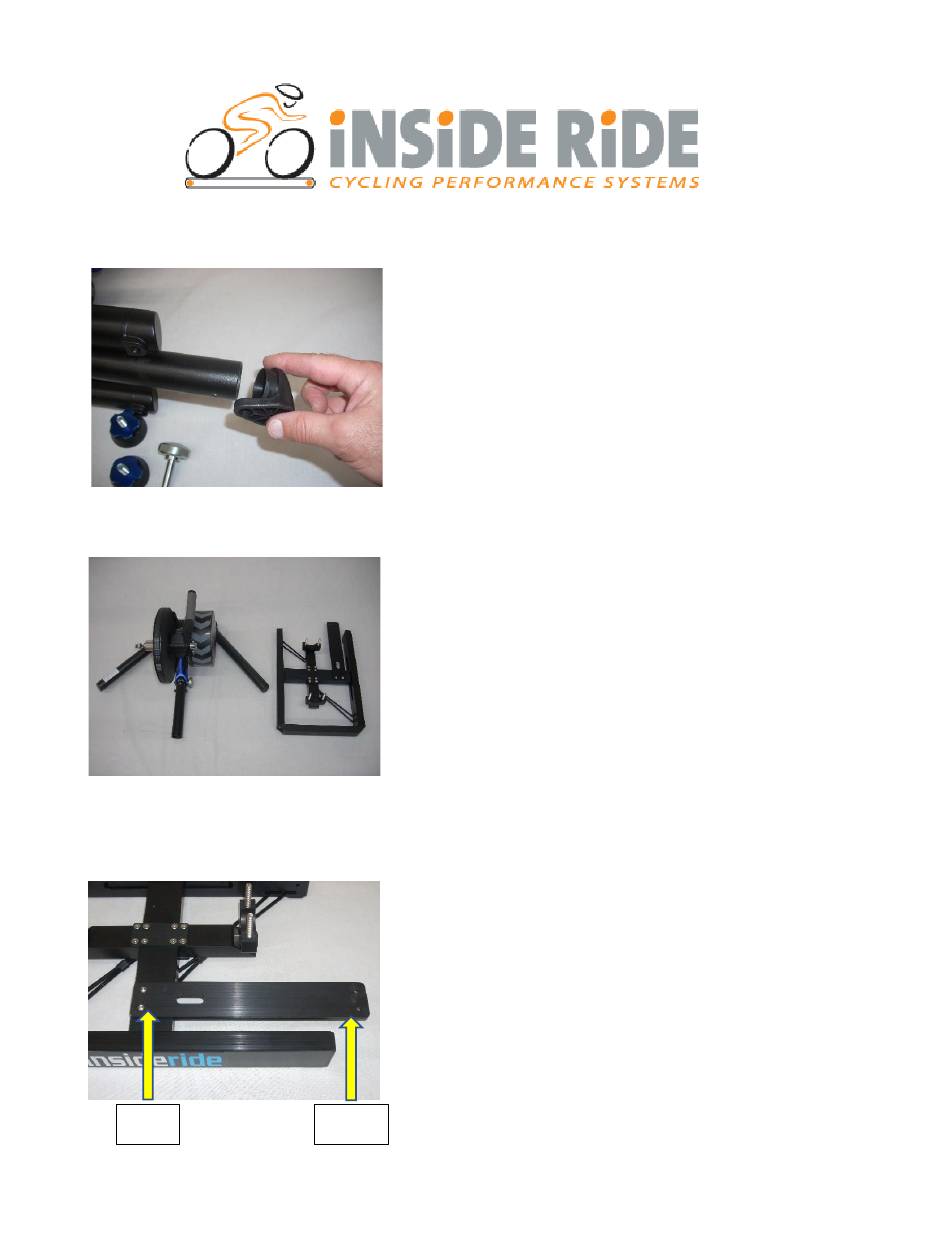

KICKR E-FLEX V2 Assembly

Support Arm
Soft
BCI Mfg Inc P.O. Box 1207 North Plains, OR 97133 info@insideride.com
Prep your KICKR for installation by
unscrewing the 2 adjustable pads from the
folding legs. Then remove the front pad from
the center leg, held on with a single screw.
These pads will not be used with the E-flex.
Unfold the KICKR support legs and remove
the height adjustment pin. Raise the KICKR
height adjustment as far as possible. Leave
the pin out for now. The KICKR is now ready
to place on the E-flex frame in the orientation
shown.
The E-FLEX uses a support arm to balance the
KICKR flywheel. It has two positions, firm
and soft. KICKR 14 & 18 use the firm
position, KICKR 16,17 & 20 use the soft
position. To change the firmness, unbolt the
arm and reverse it. NOTE: the arm is shipped
in the soft position as noted by the position of
the slot.
Firm
