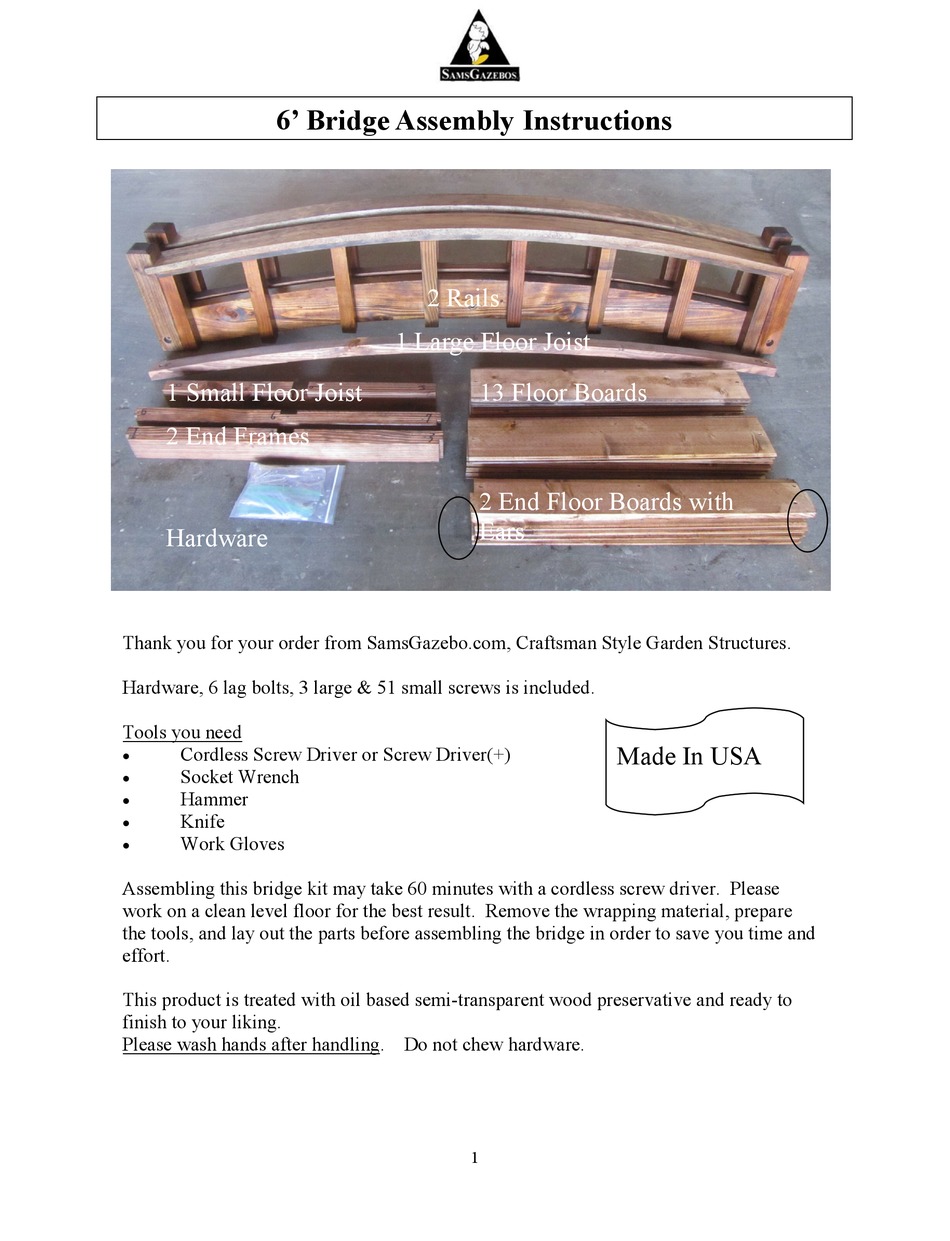

6' Bridge Assembly Instructions
1 Small Floor Joist
2 End Frames
Hardware
Thank you for your order from SamsGazebo.com, Craftsman Style Garden Structures.
Hardware, 6 lag bolts, 3 large & 51 small screws is included.
Tools you need
Cordless Screw Driver or Screw Driver(+)
Socket Wrench
Hammer
Knife
Work Gloves
Assembling this bridge kit may take 60 minutes with a cordless screw driver. Please
work on a clean level floor for the best result. Remove the wrapping material, prepare
the tools, and lay out the parts before assembling the bridge in order to save you time and
effort.
This product is treated with oil based semi-transparent wood preservative and ready to
finish to your liking.
Please wash hands after handling. Do not chew hardware.
1
2 Rails
1 Large Floor Joist
13 Floor Boards
2 End Floor Boards with
Ears
1
Made In USA
Advertisement
Summary of Contents for SAMSGAZEBOS 6' French Country Wood Garden Bridge
- Page 1 6’ Bridge Assembly Instructions 2 Rails 1 Large Floor Joist 1 Small Floor Joist 13 Floor Boards 2 End Frames 2 End Floor Boards with Ears Hardware Thank you for your order from SamsGazebo.com, Craftsman Style Garden Structures. Hardware, 6 lag bolts, 3 large & 51 small screws is included. Tools you need Made In USA Cordless Screw Driver or Screw Driver(+)
- Page 2 End Frame Rail CAUTION: Do NOT fasten the bolt too tightly; The lag bolt could cave in and damage the post, rail, or end-frame. Start assembling two rails and two end frames. 2. Fasten the rail and end frame with a large lag bolt. Match the number for the optimal result.
- Page 3 Fasten the floor joists with a large screw. 7. Fasten the end frame and the large floor joist with a 8. Fasten the floor joists with a large screw. large screw. Hold down the small floor joist with a free hand while fastening 10.
- Page 4 *Always match the tongue with groove. *Gently hammer the floor board over a appropriate extra piece. Be sure to match the tongue with groove to avoid damage. 13. Check the tongue and groove of the end floor board on 14. Continue to slide in more floor boards. the other end and slide in floor boards one at a time.
- Page 5 Pro: Best and smoothest finish, high sheen and gloss, very durable, 6-10+ year life Con: Higher maintenance over time with more work involving re-painting, highest cost, clean-up with specific, oil-based paint solutions Thank You for choosing SamsGazebo.com < Craftsman Style Wood Garden Structures > 1(800)376-7267 info@samsgazebos.com We appreciate your business.
- Page 6 State of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov AZEBOS.com 132 E. 163rd Street, Gardena, CA 90248 USA Phone: 310-523-3778 www.samsgazebo.com E-mail: info@samsgazebos.com Thank you for purchasing from SAMSGAZEBO.COM...
