Retail Display Direct SSDW14BLA Installation Manual
  1. Manuals
  2. Brands
  3. Retail Display Direct Manuals
  4. Indoor Furnishing
  5. SSDW14BLA
  6. Installation manual

Retail Display Direct SSDW14BLA Installation Manual

Dual motor height adjustable
Hide thumbs

Advertisement

Quick Links

Download this manual
www． retaildisplaydirect． com． au

Advertisement

loading
Need help?

Need help?

Do you have a question about the SSDW14BLA and is the answer not in the manual?

Questions and answers

Summary of Contents for Retail Display Direct SSDW14BLA

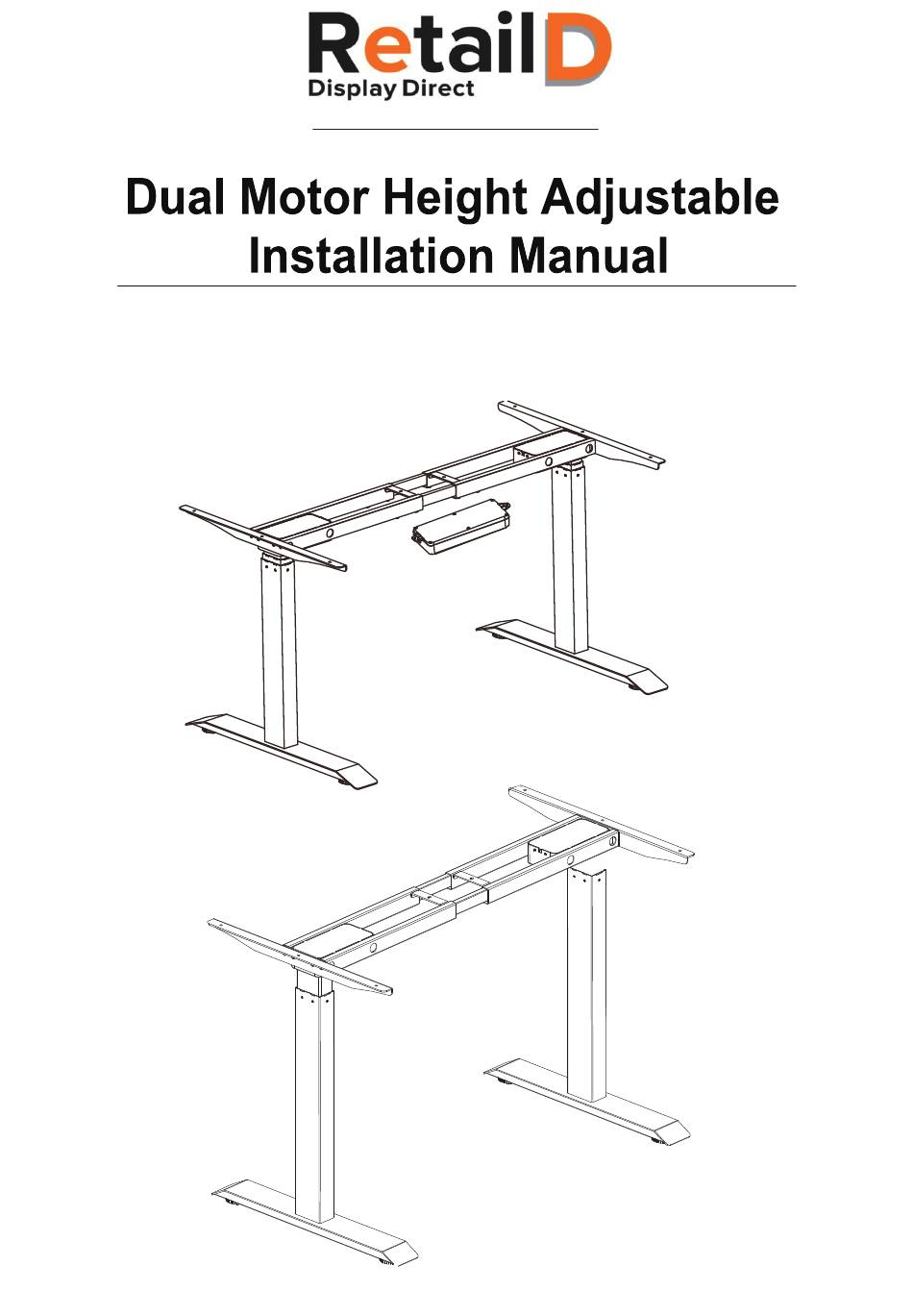

  • Page 1 www． retaildisplaydirect． com． au...
  • Page 2 TABLE CONTENTS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - , 1 ►...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Read the operating instructions completely. 1. Failure to comply with instructions may result in serious damage to the system or one of its components. 2. Persons who do not have the knowledge of the product(s) or have reduced physical or mental abilities must not use the product(s) unless they are under surveillance or they have been thoroughly instructed in the use of the apparatus by a person who is responsible for the safety of these persons.
  • Page 4 extended line(1)
  • Page 5 Inner frame can be slide left and right to show screw hole...
  • Page 7 Insert the extension line cable into the motor plug. ST4.8×19 M6*14...

  • Page 8: Storing A Position

    Digital Keyboard Manual 1. Overview Main features of the programmadble handswitch are showed in the fgure below: Store Memory Key Height Disply Memory Position Key 1 Desktop Up Key Memory Position Key 3 Memory Position Key 4 Desktop Down Key Memory Position Key 2 Description Note...
  • Page 9 a. Press the UP or DOWN key to adjust the desktop to the desired height, the display will show the desktop height. b. Press and hold the "M" Key for 3s until the Numbers on the display started flashing. c. Press Memory Position Key 1 to save the desk position in memory. d.

  • Page 10: Specifications

    7. Setting The Led Retracted Height Press the DOWN button on the memory controller until the frame reaches its lowest position. Measure the height of the frame from the floor and if the number on the LED display does not match your measurement, follow these steps: a.

  • Page 11: Troubleshooting

    8. Trouble Shooting Below are the possible errors which can be displayed. The errors will only be dis- played when a button is pressed. Description Error code Resolve Lifting speed of two legs are not Confirm that all wired connections are secure (legs to able to sync or HALL signal failure cables, cables to control box).
