Euro LT HYBRIDS Assembly

Order #XXXXX - LTK-1138 - Counter Assembly
Euro LT Hybrids General Setup Instructions - Order #xxxxx
Item Number Description
1 Custom Curve Panel w/ Door
2 Custom Curve Panel
Using Your Setup Instructions
3 Custom Curve Panel
4 Custom Curve Panel
The Euro LT Hybrids Setup Instructions are created specifically for your configuration.
5 Custom Curve Panel

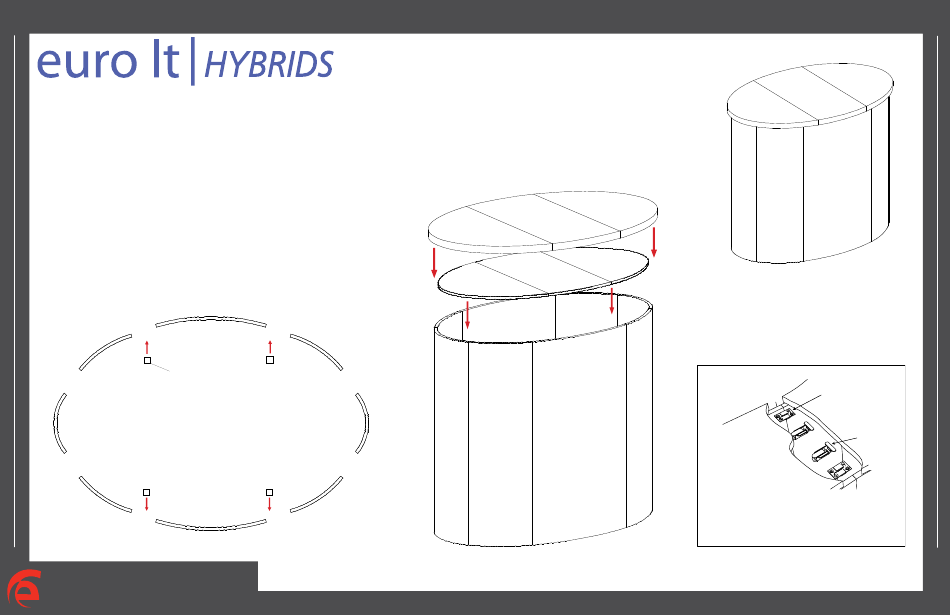

They are laid out sequentially in levels, including exploded views, and a logical series of
6 Custom Curve Panel
detailed steps to assemble the main structure and components. We encourage you to study
7 Custom Curve Panel
the instructions before attempting to assemble your exhibit.
8 Custom Curve Panel
Each page reminds you to tighten the setscrews after disassembling your exhibit to prevent loss of
the locks and setscrews (see below in RED). This is VERY IMPORTANT.
Steps:
1) Assemble by starting at panel
and continue in numerical order.
Cleaning and Packing Your Display
1) Use care when cleaning aluminum extrusion or acrylic inserts. Use only non-abrasive cleaners.
2) When cleaning laminate inserts, countertops, or panels use mild cleansers and a soft material such
as cotton.
3) Keep all display components away from extreme heat and long exposure to sunlight to avoid
warping and fading.
4) Retain all packing material. It will make re-packing much easier and will reduce the likelihood of
shipping damage.
2
Shelf Supports
General Setup Instructions for Extrusion System
Detail A
3
4
Typical Connection
The Tool
Most exhibits can be assembled Most horizontal extrusion connections have a patented expandable lock.
with the supplied Hex Key Tool. This lock inserts into the groove of an opposing extrusion. Tightening the
Occasionally, a flat head screw- lock with the Hex Key Tool expands the lock and creates a strong positive
driver may be required. connection.
w w w . c l a s s i c e x h i b i t s . c o m
#1
1
Door
8
7
6
Typical Connection (cont'd)
5
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
General Setup Instructions for Panel System
Level 1 = Blue
Level 2 = Red
Level 3 = Green
Level 4 = Black
Steps (Continued): Panel Lock
When Required
2) Velcro shelf supports to inside assembled base,
L
Color Coded Clip
then set internal (3 piece) shelf atop supports.
e
w/ assembly number
f
3) Place (3 piece) counter atop assembled pedestal.
t
P
a
n
Black Clip
e
is bottom of
l
panel
Cut Away View Of
Connector
Slide Clips
Each component has 2 clips, Components connect together
the lower clip is ALWAYS by aligning them and sliding
black. The top clip is color downward connecting clips
coded to distinguish the together.
level. The color coded clip
also contains the numbered
label.
Detail B Detail C
Numbered Label Horizontal Inline Connection (remove only one setscrew)
Each extrusion contains a numbered Remove only (1) setscrew when disassembling.
label which corresponds with setup Replace setscrew in extrusion after assembling it.
instructions. The label is located within Before packing, replace setscrew in extrusion to
a groove of the extrusion (when possible). avoid losing it.
With extrusion components the labels
contain Black numbers unless otherwise
specified.
Panel Lock
When Required
Left Hand
Grasps Panel
Firmly
R
i
Color Coded Clip
g
w/ assembly number
h
t
P
a
n
e
l
Example of Connection Top View of Panels with Locks
Configurations are assembled The first level of components contains panel loc
from left to right, usually starting that are located at the top of the panel for extra
with #1 and following the stability and a seamless connection. When dis-
numbered sequence. assembling panels, twist top connection slightly
and lift right panel upward.
For Multiple Piece Counters
Leaf Connector
Detail D
Base Plate Connection
Slide counters together until leaf connectors engage.
Open door and secure counter latches Attach base plate to round or
square vertical extrusion using
the bolt provided. Be careful not
to strip the threads.
Step 1
866.652.2100
With Right Hand Thum
Close to Seam
Squeeze,
Push Forward,
And Lift
Detail E
Setscrews
Counter Latch
Vertical Connection
(remove only two setscrews)
When vertical extrusions are
packed in portable cases rathe
than crates or tubs, they must
broken down into smaller sect
which then require assembly.
Remove only (2) setscrews whe
disassembling. Replace setscre
in extrusion after assembling it
© 2011
Before packing, replace setscre
in extrusion to avoid losing the
