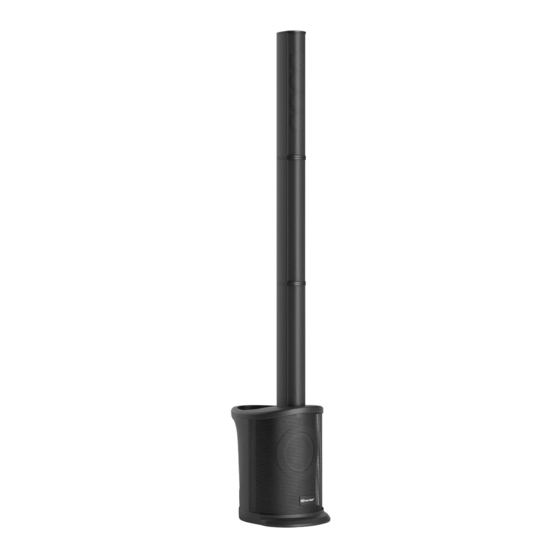

- Page 1 Luxor Linear Array PA System KN-LAPAS01 Please read all instructions before use for the best performance of this product. Save these instructions for future reference.
- Page 2 Luxor Linear Array PA System is perfect for situations where ease and portability are just as important as high-quality sound. We hope you enjoy your new Knox Gear Luxor PA System. Sincerely, The Knox Gear Team For technical assistance, please email us at cs@knoxgear.com.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Instructions Cleaning & Care Package Contents Assembly Instructions Control Panel Operating the DSP Menu Technical Specifications Warranty... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS 1. Read and keep these instructions safe. Heed all warnings and follow all instructions. 2. Do not use this device near water. 3. Clean only with dry cloth. 4. Do not block any ventilation openings. 5. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 5 is required when the device has been damaged in any way, including damage to power supply cord or plug, water/moisture damage, objects have fallen into the device, the device does not operate normally, or it has been dropped. CAUTION: These service instructions are for use by qualified service personnel only.
- Page 6 16. For adequate ventilation, do not place this device in a confined or enclosed space, such as a bookcase or similar unit. Product ventilation should not be impeded by covering the ventilation openings with items such as newspaper, tablecloths, curtains, etc. 17.
-
Page 7: Cleaning & Care
CLEANING & CARE Knox Gear Luxor Linear Array PA System may be cleaned with a dry cloth. Take care not to get moisture inside the device. Ensure that the system is unplugged from the outlet before cleaning. This system contains potentially lethal voltages. To prevent electric shock or hazard, do not remove chassis, mixer module, or AC input covers. -
Page 8: Package Contents
PACKAGE CONTENTS • Knox Gear Luxor Linear Array PA System Base • 2 x Listening Height Spacers • Column Speaker Array • Power Cable • User Manual... -
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. Remove the Knox Gear Luxor Linear Array PA System from the carton. 2. Remove the spacers and column speaker array from the carton. 3. Place spacers for desired listening level then attach the column speaker array. Note: The spacers are not required for use. -
Page 10: Control Panel
SIGNAL LIMIT MASTER REVERB VOCAL MODE ECHO CH 1 VOL CH 2 VOL CH 3 VOL CH 4/5 VOL KN-LAPAS01 LINE LINE LINE CH 1 IN CH 2 IN CH 3 IN CH 4/5 IN POWER 110V 220V AC 110V~60Hz... - Page 11 1. CH1 Volume Knobs: Use this knob to adjust the volume levels for CH1. 2. CH2 Volume Knobs: Use this knob to adjust the volume levels for CH2. 3. CH1 Mic/Line Input Selector: When CH1 is connected to a microphone, press this button to select Mic mode. When CH1 is connected to a line input, release this button to select Line mode.
- Page 12 Press once to enter the DSP menu (please refer to the “Operating the DSP Menu” section starting on page 12 for details). 15. Vocal Cut Button: press once to select ON/OFF. When it is on, the vocals will be cut. (Note that this is only an entertainment function, and the voice volume is lowered, but cannot be completely eliminated.) 16.
- Page 13 22. LED Display 23. Input Mode: Use this button to select LINE IN, BLUE (Bluetooth), FM, or MP3 player mode. : In MP3 mode, press once to play or pause song. In FM mode, press once to scan and find radio stations. They will be saved automatically.
-
Page 14: Operating The Dsp Menu
OPERATING THE DSP MENU The digital signal processing (DSP) menu allows the user to customize the settings of the Luxor Linear Array PA System. NOTE: (*) denotes automatic memory after shutoff, meaning the setting will be remembered after the system is turned on. On the start interface: 1. - Page 15 NOTE: Bass and treble can only be adjusted from the default “Music” EQ setting. Attempting to adjust the bass or treble from another EQ setting will revert the EQ to “Music”. Manual EQ settings are never saved; switching to a different EQ will reset any adjustments.
- Page 16 System 1. Press the knob to access the menu. 2. After accessing the submenu, press the knob to select items in downward sequence (it will proceed through the menu one by one; if you need to reset, access the submenu again). 3.
-
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS System • System Type: Portable Line Array with powered mixer • Maximum SPL Output: 118 dB peak system output • Frequency Range (-10dB): 37.5Hz – 18.5kHz • Frequency Response (-3dB): 45Hz – 18kHz • AC input: AC110V~60Hz/AC220V~50Hz Amplifier •... -
Page 18: Warranty
Should warranty, covering both parts and labor to ensure that you enjoy the full use of this product with peace of mind. For more information about your warranty, please contact Customer Service at cs@knoxgear.com. Questions? Please contact Customer Service at cs@knoxgear.com... - Page 19 NOTES...
