Summary of Contents for Ada Smart Office Furniture AE333-W-01

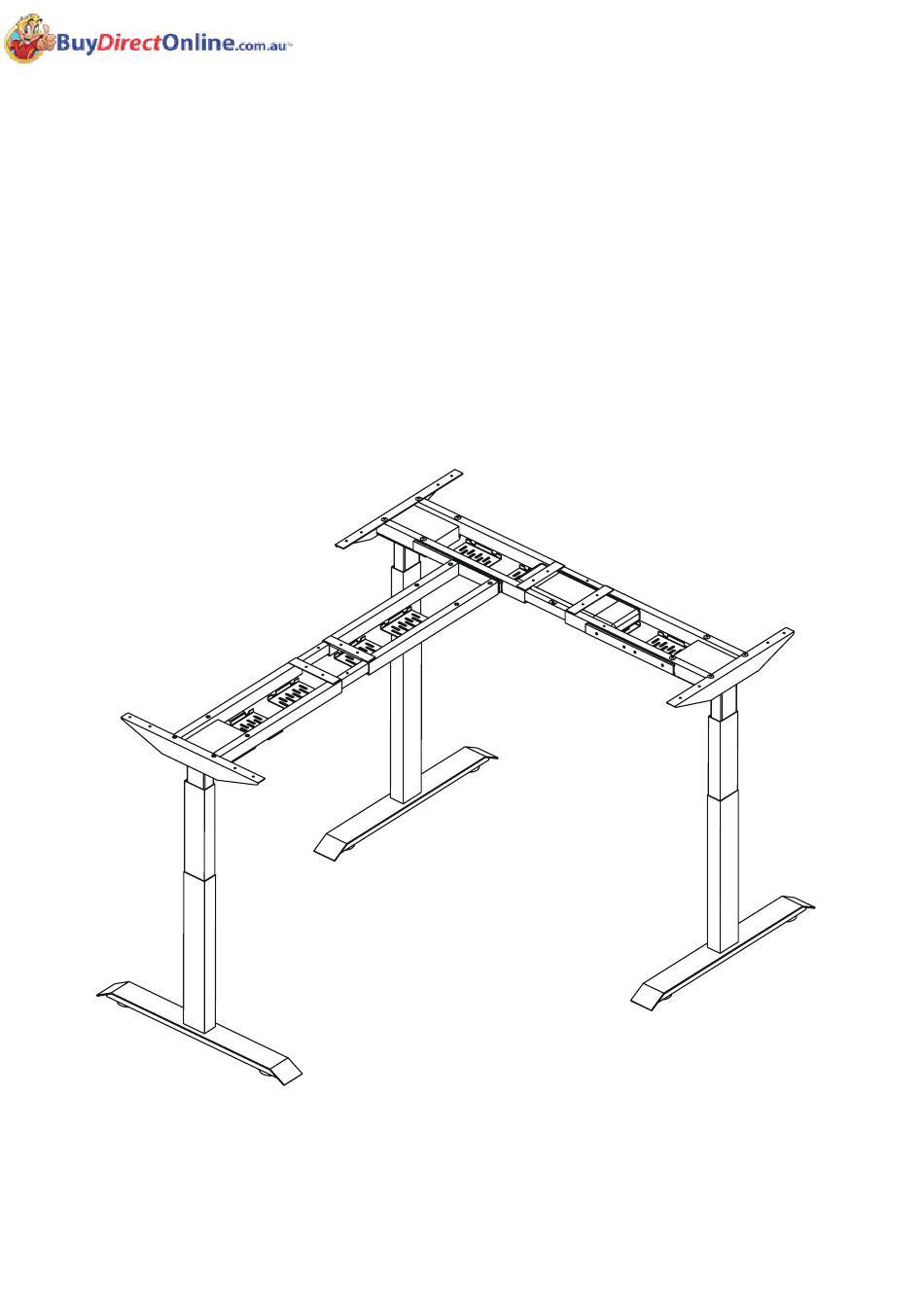

- Page 1 Phone: 1300 313 495 ASSEMBLY INSTRUCTIONS L-ELECTRIC HEIGHT ADJUSTABLE DESK Ada Smart Office Furniture Co., Ltd...
- Page 2 Need Two Or More People To Complete Assemble Item On a Clean Flat Surface - Please check you have all hardware before assembling. - Please ensure you have the name of the item and hardware part required and quantity. - Please contact us by mail, if you have any questions, and we will reply you ASAP. - Enjoy your new purchase!
- Page 3 Product Name QTY Base Cable tray Beam Bracket Display Controller M6x12 M8x40 M4x10 M5x20 M4x15 Segments Adjustable Duty Frequency Power Horizontal Range Speed Load Height Cycle Specification 2 Minutes On, 1100-1700 18 Minutes 110-240 V 1500N 47-63Hz 50wX3 640-1290 25mm/s off.
- Page 4 Ax12 Legs assembling,fix the base and leg with M6 screws.
- Page 5 1. Loose screw 2. Adjust to the appropriate width 3. Tighten the screws (The recommended length is 15cm shorter than each edge of desktop)
- Page 6 M8x40 Let two legs stand in right place, then fix the beam on legs with M8 screws. Fix the brackets with M8 screws...
-
Page 7: Fixing Brackets
M6x12 M5x20 M8x40 Fixing Brackets... - Page 8 M1 M2 Put the control box in the cable tray. -insert the motor plug in M1 M2 M3 -insert the control panel plug in HS -insert the power plug in AC...
- Page 9 M4x10 CX16 We have fixed the cable tray under the frame. Please remove the portable two of them to assemble the controller.
- Page 10 Function Button operation instruction in condition of E2 or run to basic height position, long press for 5 seconds, display RES and press still, it goes down to the lowest Reset and rebound certain height, reset finish and show basic height. Manu-up Press and display real height...
- Page 11 Protection mode (auto- lock screen mode) Instruction Function Hot: it alarms when continuous working 2 minutes; clear automatically after resting 18 minutes. Over-heating protection E1: It alarms when motor hall value cannot be inspected; clear it after press reset or re-power on. Sensorless alarm E2: overload alarm when running up, clear automatically after 3 seconds;...
