Summary of Contents for VAC-CON 691-5006

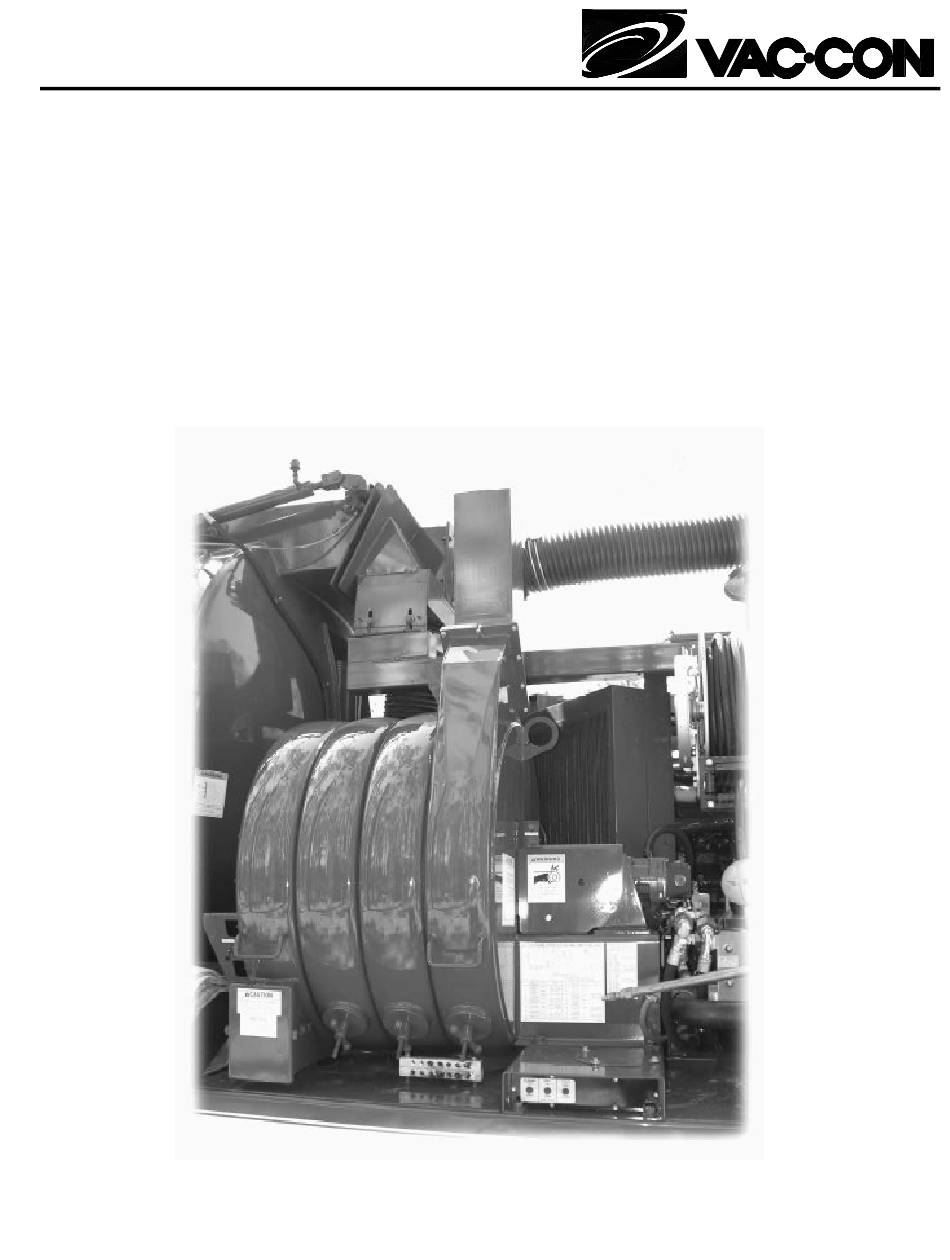

- Page 1 Section 50 Vacuum Compressor Fan Cleaning Instructions 691-5006 Combination Sewer and Catch Basin Cleaner Machines...
-
Page 2: Safety Instructions
These changes can affect the service that was given to the product. Always contact your Vac-Con Inc. dealer to obtain the most complete and current information before starting any repair. -
Page 3: Table Of Contents
Vacuum Compressor Fan Cleaning Instructions Table of Contents Safety Instructions ........................... 2 Vacuum System Safety ........................4 Safety Labels ........................... 5 Cleaning the Vacuum System ......................5 Cleaning Inside the Debris Tank ....................... 7... -
Page 4: Vacuum System Safety
Fan cleaning instructions are to be performed only on Vac-Con 2 or 3 stage vacuum compressors. In the event of an injury involving a high- pressure water stream, immediate medical Under no circumstances are these attention should be obtained. -
Page 5: Safety Labels
Cleaning Instructions Cleaning the Vacuum Safety Labels System Safety labels have been installed on your VAC-CON unit to alert you of potentially dangerous conditions. Read, understand and follow all Danger, Warning, 1. Unlatch and open the Centrifugal Separator Door. Caution and instruction labels before operating or servicing your equipment. - Page 6 Vacuum Compressor Fan Cleaning Instructions 4. Engage the vacuum system. 10. Make sure vacuum system is disengaged. Remove the clean out port covers at the bottom of the 5. Increase the truck engine throttle to approximately vacuum compressor. Using the handgun, spray 1500 RPM.
-
Page 7: Cleaning Inside The Debris Tank
Perform this cleaning every time the debris tank is dumped. Make sure the rubber reed valves are not damaged and ensure that the valves allow trapped water to drain back into the debris tank. If the reed valve is damaged, contact Vac-Con for replacement. - Page 8 Vac-Con Inc. 969 Hall Park Drive Green Cove Springs, FL 32043 phone: 904-284-4200 FAX: 904-284-3305 Vac-Con part number 691-5006 printed in USA www.vac-con.com March 2005...
