FD-Arena 9972
Component list
A - 5mm Allen Wrench
b - 5/16 x 5/8 in
C - Spine x 1
D - Swiveling Bracket
E - 5/16 x 1 3/4 in
f - Horizontal Mounting
g - 5/16 x 3/8 in
H - Washer x 4
I - Vertical Mounting
J - TV Mounting Kit
K - Leveling Disc x 2
l - Jam Nut x 2
Your Arena Flat Panel Mount is engineered for easy
assembly. Carefully follow this procedure to prevent any
damage.
x 1
Placement and Maintenance
Arena Flat Panel Mount is designed for indoor use on level
Screws
floors. Clean steel parts with a moist cloth.
x 12
NOTICE: ARENA PERFORMS BEST AGAINST OR NEAR A
WALL.
step 1
Unpack and identify the components at left. The assembly
workspace should be a non-marring surface such as carpet.
Assembly
x 2
Screws
step 2
x 4

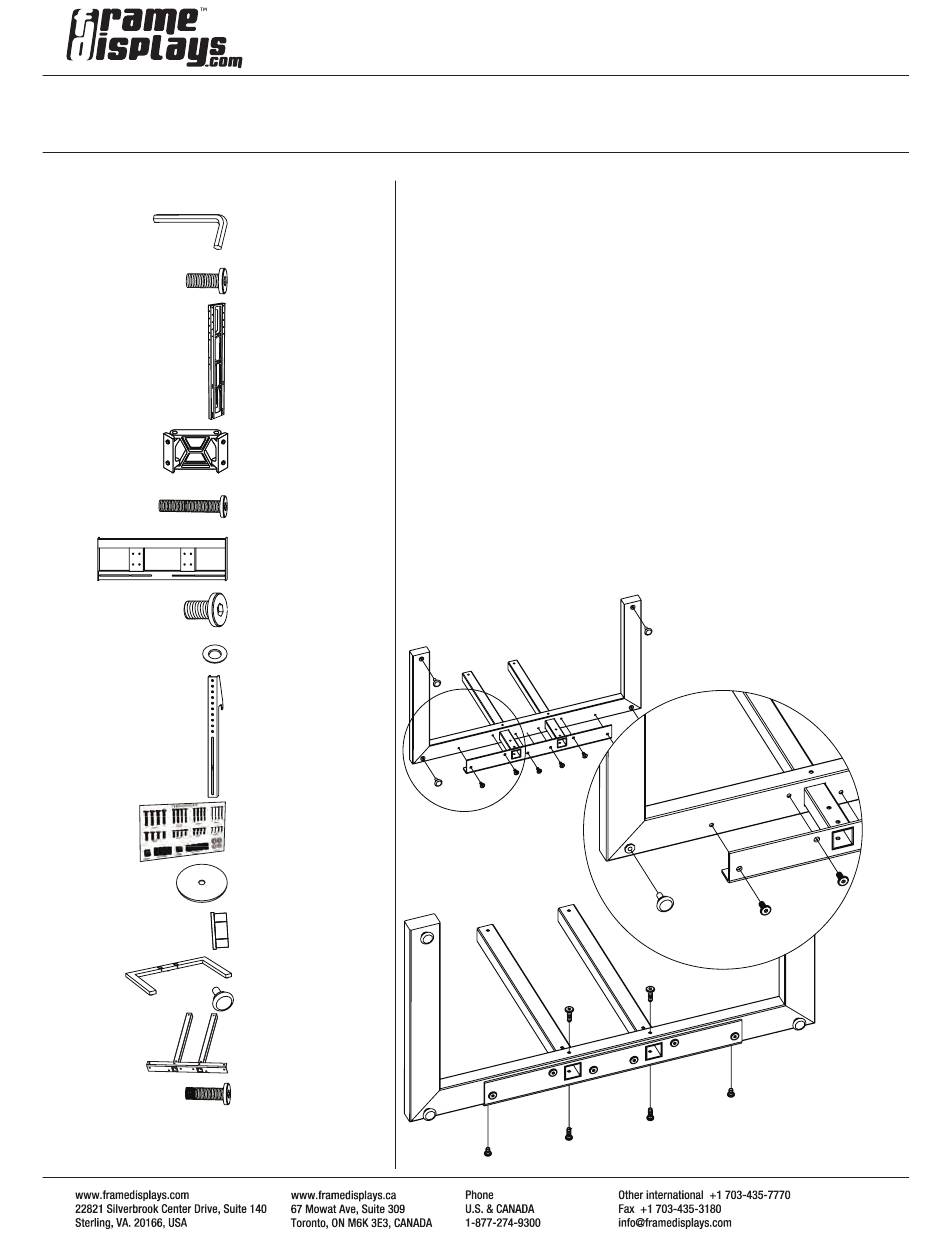

Assemble base
Screw in levelers (N) into C-leg (M). Attach base forks
Bracket
(O) to C-leg (M) using provided Allen wrench (A), six
x 1
(6) 5/16 x 5/8 in screws (b) , and four (4) 5/16 x 1 in
screws (P).
Screws
x 4
Bracket
x 2
x 1
M - C-Leg x 1
N - Levelers x 4
O - Base Forks x 1
P - 5/16 X 1 in
Screws
x 4
M
P
P
b
1
N
b
P
b
P
