Automotive Diagnostics 10 Series Startup Manual

Automotive Diagnostics Start Up Guide

1 Introduction

The Complete User Manual and Operators Guide is available at

www.automotivediagnosticsintl.com

using the Series 10.

1.1 Product Profile

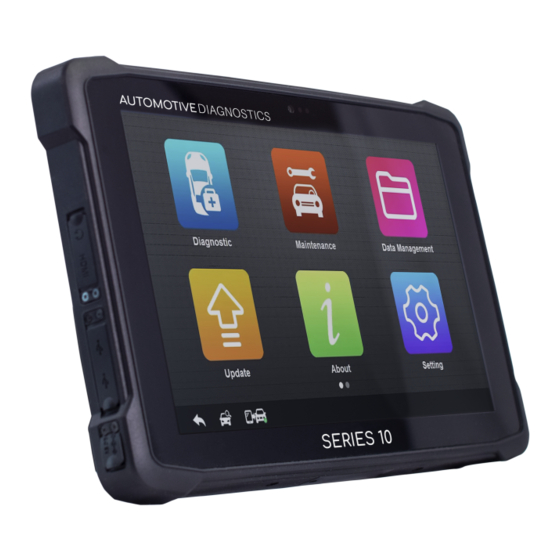

The Series 10 is a Windows 10 Pro tablet-based vehicle diagnostic system. The Series 10

provides a choice of Bluetooth or wired communication through a VCI connector to the

Series 10 tablet to communicate with the vehicle via the diagnostic port.

Below is a diagram showing how the Series 10 turns on and connects to the vehicle.

• Full diagnostic functionality – Complete capabilities for codes, live data, freeze frame,

functional tests, ECU information, adaptation, matching, and coding for dozens of vehicle

systems

•. Automatic VIN identification – to instantly identify the vehicle under test

• System Detection – detects only the systems that are specific to the vehicle and reads

for errors

• One-Touch Full Vehicle Code Scan & Clear - quickly checks and clears codes for all

available modules on the vehicle

• Record / Playback/Print live data

• Study and compare mode for Live data — real-time data can be compared against

known good measurements

• Service functionalities - Direct Access to the most common required special

please download and read prior to

Bluetooth

USB cable
