ANNE PRO 2 User Manual

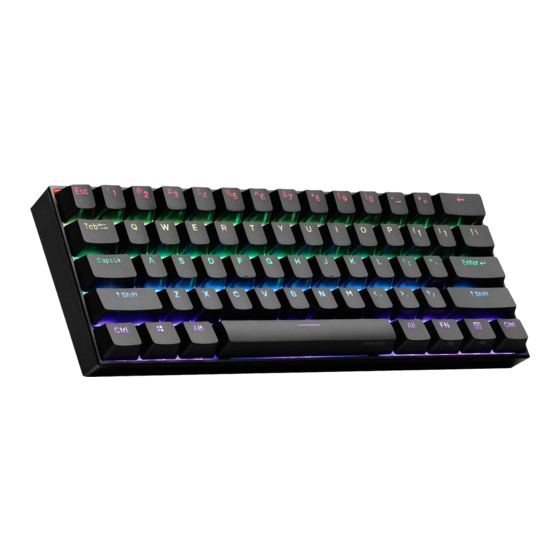

The ANNE PRO 2 is a "60%" mechanical keyboard that is equipped with RGB
LED lighting, Bluetooth connectivity and a built-in battery.
The ANNE 2 PRO is smart and it saves on desk space.
It's compact 61-key layout can be used like a standard 104-key board thanks
to key combinations that function by default and /or are programmable via
software.
1. Basic Function
The key marked
is referred to as
in your Quick Start Guide, in the
FN
FN1
software and elsewhere.
The key to the right of
on your keyboard (3 horizontal bars) is
FN1
designated
.
FN2
The
key can be programmed to act as an additional
or
key
CapsLock
FN1
FN2
via software.
1.1 Connect your ANNE PRO 2
1.1.1 Connect via USB Cable

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ANNE PRO 2

  • Page 1 ANNE PRO 2 User Manual The ANNE PRO 2 is a "60%" mechanical keyboard that is equipped with RGB LED lighting, Bluetooth connectivity and a built-in battery. The ANNE 2 PRO is smart and it saves on desk space. It's compact 61-key layout can be used like a standard 104-key board thanks to key combinations that function by default and /or are programmable via software.

  • Page 2: Light Control

    1. Set the (Bluetooth) switch on the back of the keyboard to the ON position. 2. Refer to Chapter 4 for connection procedure. 1.2 Light Control Your ANNE PRO 2 allows you to preset a variety of lighting effects. Please refer to the ObinsKit User Manuals for Light Setting to see the options.
  • Page 3 Your ANNE PRO 2 provides access to Function Keys via the following key combinations (using the key at the bottom right of the keyboard) 1.4 Direction Keys...
  • Page 4 ANNE PRO 2 provide two groups of direction keys ↑ ← ↓ → ↑ ← ↓ →...

  • Page 5: Other Keys

    1.5 Other Keys SCROOL LOCK PAUSE BREAK PRINT SCREEN PAGE UP '" PAGE DOWN .> INSERT DELETE HOME...
  • Page 6 1.6 TAP Layout Your ANNE PRO 2 provides you with a third set of (non-repeating) direction keys via the "TAP" function (which is controlled via the software). ↑ ← ↓ This allows you to tap Right Shift Right → . (You may assign other functions to your TAP keys via the Control software.

  • Page 7: Bluetooth Setup

    Before proceeding, make sure the switch under your keyboard is set to ON. 2.1 Turn on Bluetooth broadcast To function wirelessly, your ANNE PRO 2 must be paired with a host that is equipped with Bluetooth (computer, phone, tablet, etc.).
  • Page 8 = Switch to host saved on position 4 2.3 Bluetooth pairing with Windows 8/10 2.3.1 Make sure your computer or other device supports Bluetooth Low Energy (BLE). If your device does not support BLE, please purchase an adapter that supports...
  • Page 10 1. Right click on the icon at the bottom left of your desktop windows 2. Select Device Manager 3. If you see in the list of devices in the MicroSoft Bluetooth Enumerator window, your computer supports BLE. Otherwise, you require an...
  • Page 11 2.3.2 Pair your Windows computer to function wirelessly with your ANNE PRO 2 1. Right click on the icon at the bottom left of your desktop - Windows select - select - select Settings Devices Bluetooth & other devices 2. Turn Bluetooth ON 3.
  • Page 12 2.4 Bluetooth pairing with Mac OS X 1. Open Bluetooth setting window, click button to pair with Connect AnnePro2 is displayed on success Connected...

  • Page 13: Technical Parameters

    3. Technical Parameters Item Parameters Wired USB (Windows 7/8/10、Mac、Linux) Bluetooth LE 4.0 (Windows 8/10、Mac、 Wireless Linux) 97 × 284 × 40mm Size Weight 635g Battery 1900mAh USB Input Voltage 5V DC USB Working 500mA Max Current Screw Torx T5 M2*9.5mm...
