Summary of Contents for SHANGRI-LA ROBIN SLROBI4CDWA

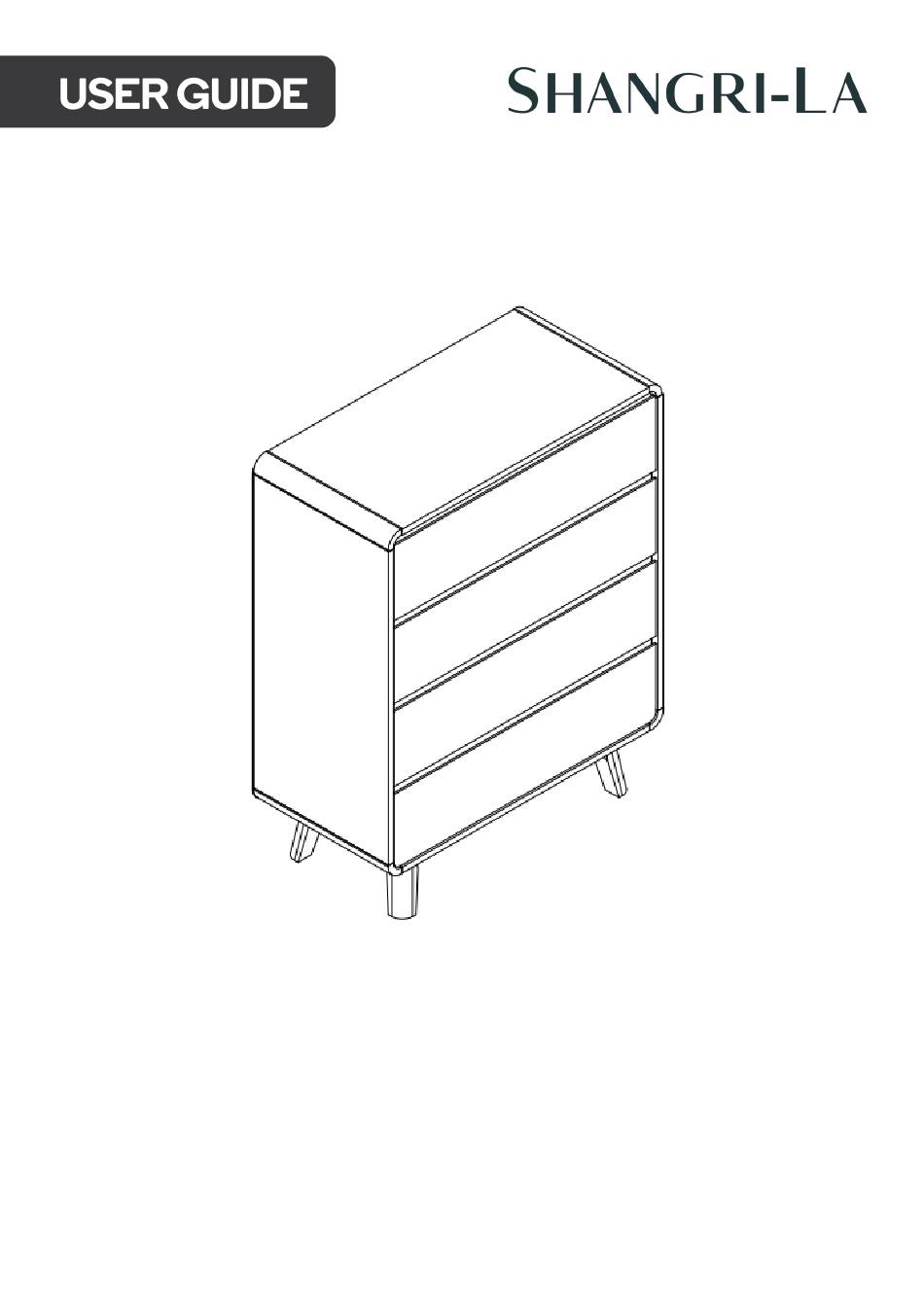

- Page 1 ROBIN CHEST OF 4 DRAWERS SLROBI4CDWA & SLROBI4CDBA...
- Page 2 SAFETY & WARNINGS Please read these safety instructions thoroughly before using this product. Retain this guide for future reference. • Carefully identify each component, especially those that are similar. The most common mistake is getting things back to front. • Separate and identify each component from the hardware pack and rest it in its final location before fastening.
- Page 3 COMPONENTS Lay all components out on a clean floor and ensure all parts are included. If any pieces are missing, check all packaging thoroughly, then contact help.Kogan.com for assistance. Parts:...
- Page 4 Size (mm) Size (mm) 60 x 395 x 40 50 x 552 x 15 60 x 395 x 40 50 x 224 x 15 60 x 395 x 40 46 x 770 x 15 60 x 395 x 40 46 x 770 x 15 394 x 795 x 15 190 x 766 x 15 394 x 795 x 15...
- Page 5 ASSEMBLY IMPORTANT! Read before assembling Slide runner Slide track This product contains multiple sets of metal slide runners and slide tracks (shown separated above). To avoid damage to these items during transportation, the slide runners and tracks have been pre-assembled together in pairs. Each pair includes one slide runner and one slide track.
- Page 6 Step 1: B 35mm (x24)
- Page 7 Step 2: F 14" (x8) G Ø3.5x12 (x24) x4 Drawer Slides F x4 Drawer Slides F...
- Page 8 Step 3: A Ø15x9.6 (x6) D Ø4x32 (x8) Arrow to point in the direction of end hole...
- Page 9 Step 4: Arrow to point in the direction of end hole A Ø15x9.6 (x12) Step 5: Arrow to point in the direction of A Ø15x9.6 (x2) end hole...
- Page 10 Step 6: Arrow to point in the direction of A Ø15x9.6 (x4) end hole Step 7: C Ø4x25 (x6)
- Page 11 Step 8: B 35mm (x7) Step 9: K Ø5x16x1 M Ø5x16...
- Page 12 Step 10: C Ø4x25 (x6) Step 11: B 35mm (x4)
- Page 13 Step 12: E 14" (x8) G Ø3.5x12 (x24) x8 Drawer Slides E...
- Page 14 Step 13: B 35mm (x10)
- Page 15 Step 14: A Ø15x9.6 (x5) Arrow to point in the direction of end hole Step 15: A Ø15x9.6 (x5) Arrow to point in the direction of end hole...
- Page 16 Step 16: B 35mm (x8) J Legs (x4)
- Page 17 Step 17: Arrow to point in the direction of end hole A Ø15x9.6 (x4) Step 18: Arrow to point in the direction of end hole A Ø15x9.6 (x4)
- Page 18 Step 19: A Ø15x9.6 (x2) B 35mm (x2) I Ø5.5x38 (x4) Arrow to point in the direction of end hole...
- Page 19 Step 20: A Ø15x9.6 (x4) Arrow to point in the direction of end hole Stand upright...
- Page 20 Step 21: A Ø15x9.6 (x7) Arrow to point in the direction of end hole...
- Page 21 Step 22: N Ø842 (x1) H (x32) Stand upright...
- Page 22 Step 23: Assembly Complete!
- Page 23 Anti-toppling • We strongly advise that you use the anti-toppling safety strap provided to prevent the unit from tipping forward. • Always seek advice from a qualified trades person on how to properly attach the safety strap to your wall. •...
- Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
