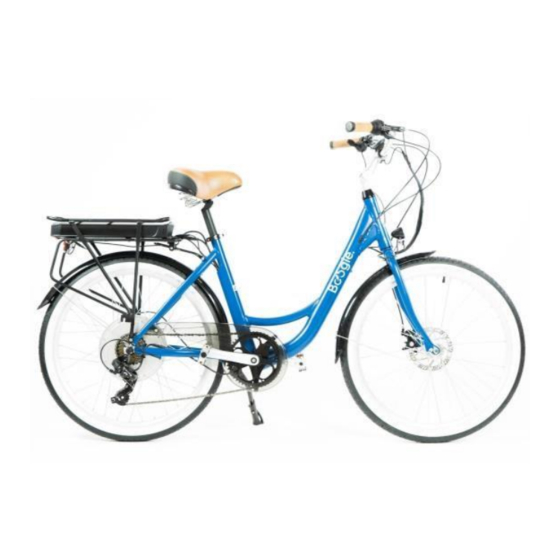

Boogie Cruiser Bike Owner's Manual

Cruiser bike
Hide thumbs

Advertisement

Quick Links

Boogie Bikes
Owner's Manual - Cruiser Bike
www.boogiebikes.com
Quick Start Reference
1. Read Manual
2. Safety/Warning
information
3. Adjusting your
handlebars and seat
4. FAQ
pg. 3-6
pg. 8-10
pg. 31

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cruiser Bike and is the answer not in the manual?

Questions and answers

Summary of Contents for Boogie Cruiser Bike

  • Page 1 Boogie Bikes Owner’s Manual - Cruiser Bike www.boogiebikes.com Quick Start Reference 1. Read Manual 2. Safety/Warning pg. 3-6 information 3. Adjusting your pg. 8-10 handlebars and seat 4. FAQ pg. 31...

  • Page 2: Table Of Contents

    Table of Contents 1. Table of Contents 2. Introduction 3. Warnings 4. Safety 5. Getting Started 6. Battery 7. Operation 8. Maintaining your Bike 9. FAQ 10. Warranty 11. Warranty Registration Information Revision Date 8.11.2 www.boogiebikes.com 1-833-266-4432...

  • Page 3: Introduction

    Introduction Thank you for purchasing your electric bike from Boogie Bikes. This manual contains important information regarding safety and care for your purchase. Please take the time to read and understand it so you can enjoy your ride more thoroughly. We are excited to be part of your new biking adventure.

  • Page 4: Warnings

    Do not modify or replace any electrical components on the e-bike unless it has been approved for use by Boogie Bikes. Taking proper care of bike components is necessary and can reduce that risk, but may not prevent serious harm, injury, or death.
  • Page 5 Boogie Bikes assumes no liability for harm, injury, or death of the rider or others caused by the rider riding the bike.

  • Page 6: Safety

    Safety General Safety ● Check the condition of your bike before any and every ride. Have regular maintenance and periodic inspections performed as needed. If you are unsure of how to conduct a complete check of the condition of your bike, you should consult a certified, reputable bike mechanic for assistance.
  • Page 7 Carrying Capacity ● Boogie Bikes are rated to have a max 300lb payload. It is intended for a single operator with no passengers. Failure to adhere to this guideline could result in bike failure and cause serious harm or injury.
  • Page 8 ● Ensure you have enough battery life for the trip. ● Make sure the brakes and the front and rear lights are all working properly. Warning: A Special Note to Parents IN THE UNITED STATES, ELECTRIC BIKES MAY ONLY BE RIDDEN BY PERSONS 16 YEARS OLD AND OLDER!!! IT IS ILLEGAL FOR INDIVIDUALS YOUNGER THAN 16 TO RIDE ELECTRIC BICYCLES.

  • Page 9: Getting Started

    Congratulations on purchasing your new Boogie Bike! This bicycle comes to you virtually assembled with only a few adjustments to be made out of the box. The following manual is designed to help you understand your Boogie Bike and ensure a safe and fun experience.
  • Page 10 fork assembly are tightened securely. Pedals ● Install the left pedal - marked with an “L” sticker (on rider’s left hand side when seated on the bike) on the left side of the bike holding the pedal in one hand and turning the black threaded member COUNTER-CLOCKWISE.
  • Page 11 ● Ensure that all components are properly secured. Failing to do this could result in serious harm or death. Note: Contact Boogie Bikes for manufacturer’s torque values for individual parts. ● Make sure the seat or stem cannot be moved out of alignment by hand.
  • Page 12 The seat camber can also be adjusted by loosening the hex cap screw under the • seat. It is important to make sure the screw is completely tight, and the camber clamp is completely seated before riding. The camber clamp can be turned 180 degrees if additional adjustment is needed to make the seat to handlebar distance longer or for additional tilt.
  • Page 13 Preparing Your Brakes Your Boogie Bike is equipped with a more effective brake style called disc brakes. Disc brakes require a breaking-in process called “bedding-in” to prepare them for use and to prevent squeaky brakes. Brake rotors (the thin piece of metal that the brake pads clamp onto) have unique patterns.
  • Page 14 • Set the PAS to zero and pedal at 10 mph (the bike should be providing zero assistance) • While riding at 10 mph, slowly squeeze the front brake and maintain pressure. DO NOT STOP THE BIKE COMPLETELY. Stopping the bike in the bedding-in process will create a build-up of brake pad material in one area.
  • Page 15 Finally, when you buckle on your helmet and go for your first ride, be sure to pick an area away from cars, other cyclists, obstacles, or other hazards in order to become familiar with the controls, features and performance of your new Boogie Bike. www.boogiebikes.com...

  • Page 16: Battery

    Battery Your new Boogie Bike comes with a premium Samsung 13.6Ah 48V Lithium-Ion battery. Charging Your Battery ● Only charge your battery fully a few hours before you plan to ride. This will help increase the longevity of your battery.
  • Page 17 ● Never place the charger where it can be tripped over. ● Always have the area around the charger free of debris. ● Only use the charger supplied with your Boogie Bike to charge the battery. Contact Boogie Bikes if a replacement charger is needed.
  • Page 18 Please take special care in charging your Boogie Bike. Failure to do so could result in damage to the bike, the charger, personal property, or cause injury to yourself.
  • Page 19 ● In order to remove the battery, unlock it using the supplied key, and slide the battery backwards out of the rear rack and away from the bike. www.boogiebikes.com 1-833-266-4432...
  • Page 20 Please be sure to keep the key in a safe place. Keys can be replaced by calling Boogie Bikes, however replacement keys take several days and cost $50 each.
  • Page 21 Battery Range ● Your Boogie Bike is expected to take a 200lb+ rider for 30-50 miles on medium terrain using the Pedal Assist Setting of 1. ● Below are some helpful tips to optimize the range for your battery: 1. Use a lower level of assist when traveling further distances.

  • Page 22: Operation

    Operations Before you ride your Boogie Bike, it is important to understand where and how to use the new features of your bike. Read through this entire manual before you take your new Boogie Bike for your first ride. Location...
  • Page 23 Your First Ride ● Before you begin riding, ensure that the battery is fully charged, and securely locked in place on your e-bike. To turn on your e - bike, make sure the power switch on the battery is on and hold the “M/Power” on the display control unit.
  • Page 24 Failure to do so could cause serious harm. Lighting Your Boogie Bike is equipped with front and rear lights. To turn on your lights, press and hold the UP button / + Key on the display control. Always Use your lights at night or in low visibility situations.
  • Page 25 Operating Safely ● Before you begin riding your Boogie Bike, please make sure you have fully read this manual. Understanding how to operate the pedal assist feature and thumb accelerator will ensure a safe and enjoyable ride. Take a test ride in a safe environment away from busy streets, parked cars, other bike riders, or pedestrians.
  • Page 26 Disc Brakes ● The Boogie Bike is equipped with front and rear disc brakes that allow you to stop quickly if needed. ● To apply the brakes, squeeze the brake levers toward the handlebars. The closer you pull the brake lever, the quicker you will slow down.
  • Page 27 Note: Before riding, make sure the brake levers do not touch the handlebars when squeezed. Also, make sure the brake calipers are closing on the brake rotors (located in the wheels) to ensure the brakes are working. Warning: Disc brakes become hot during use. Do not touch or come in contact with shortly after use.
  • Page 28 ● On the top of the LCD display, there is an energy bar indicator. This states how much charge the battery has remaining. As the Boogie Bike is being ridden, the battery depletes, which is indicated by the tick marks disappearing. The darkened tick marks show approximately how much battery life is remaining.
  • Page 29 0-20. At 0, the rider is providing all the energy being used, 20 is the maximum amperage the Boogie Bike Controller can contribute to assist and means the motor is working as hard as it is programed to. Numbers in between indicate mixed power consumption.
  • Page 30 Maintenance To ensure safe riding conditions you must properly maintain your bike from Boogie Bikes. Bike maintenance and repair require specific skills and appropriate tools. Do not repair your bike or change any of its settings if you have the slightest doubt regarding your ability to correctly proceed with such work.

  • Page 31: Faq

    Q: What should I do about shipping damage? A: Take pictures as soon as it is noticed, and report to Boogie Bikes as soon as possible at 833-266-4432 Q: How do I adjust my bike to fit me? A: There is a full section on adjusting on page 10.

  • Page 32: Warranty

    AND EXCLUSIONS THAT MAY APPLY TO YOU. WHAT THIS LIMITED WARRANTY COVERS; PERIOD OF COVERAGE Every Boogie Bikes electric bicycle (“Ebike”) comes with a warranty against manufacturing defects in materials or workmanship (“Limited Warranty”) on its frame, motor, controller, battery and display (“Covered Components”) arising or occurring as a result of your normal and ordinary use of the Ebike.
  • Page 33 Boogie Bikes will repair or replace the Ebike or part at no charge to you. Boogie Bikes will have no warranty obligations with respect to a returned Ebike if it determines, in its reasonable discretion after examination of the returned Ebike, that the Ebike or Ebike part or component is not eligible for this Limited Warranty (“Ineligible Product”).
  • Page 34 Racing or competition use, modification of original parts, abnormal strain. Lack of proper maintenance as described in the Owner’s Manual, installation of parts or accessories that are not authorized by Boogie Bikes Use of lubricants that are not suitable for the Ebike, parts and/or components.
  • Page 35 If, upon receipt and prior to use, a normal wear or routine maintenance part or accessory is found to be defective, Boogie Bikes will repair or replace such part or accessory at no charge to the customer.
  • Page 36 LIMITATION OF DAMAGES Boogie Bikes will not be liable for damages to property or persons due to improper use or through attempts to use Ebikes, parts or components for anything other than their intended use. IN ADDITION TO THE ABOVE...
  • Page 37 Warranty Registration Locate your serial number just under the Fork Tube Bezel as Shown Please fill out and return the warranty card (next page) completely within 90 days in order to activate your warranty. Retain the information below for your records www.boogiebikes.com 1-833-266-4432...
  • Page 38 www.boogiebikes.com 1-833-266-4432...
  • Page 39 HAPPY AND SAFE RIDING!!! Warranty Registration Card Mail To: Boogie Bikes Attn: Warranty W4228 Church Road Waldo WI 53093 Bike Information Serial Number (15 digits on the front of the fork tube) Date Purchased (MM/DD/YYYY) Customer Information: Name: Address: City...
  • Page 40 www.boogiebikes.com 1-833-266-4432...
