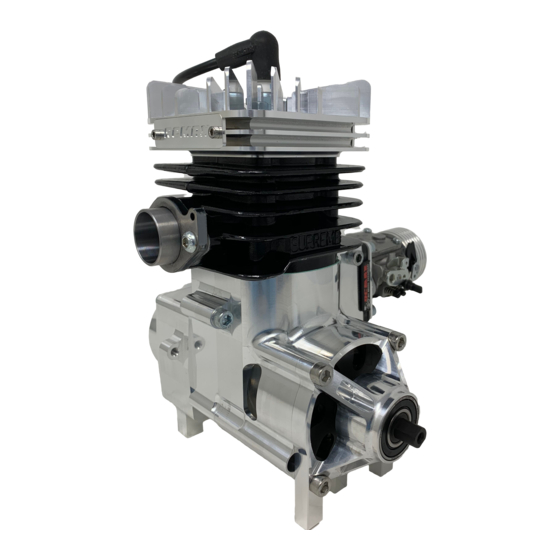

RCMAX 55/65 SUPREME Installation and Operation
Congratulations, and thank you for purchasing your new RCMAX engine.
This is a high performance, two stroke engine which produces over five times the power of a standard
largescale, RC car/buggy engine. Please be prepared for the transformation of your RC!!
Drive with care while you are getting used to this.
We strongly recommend fitting a remote kill switch to your engine, as should be the practice with all
largescale cars. Most normal 1/5 scale kill switches, plug straight in place of the stock button provided.
Important Safety Note:
Because of the performance potential of this engine in a vehicle, such as the HPI Baja, it is
necessary to operate the vehicle in a suitable, controlled environment. It should not be operated
in a public space where people are engaged in other activities, such as a public park. Do not operate
in an area where there are children playing, near pets or other animals. Do not operate on a public.
highway.
Loss of control of such a vehicle could result in serious injury to another person, family pet or other
animal.
Be aware that the engine silencing is minimal so do not run the engine in an area where this could
cause a nuisance. You and those around you should always use ear protection during operation.
Please note: All of the manufacturers safety instructions for the operation of the vehicle in which the
engine is fitted, must be followed.
Fuel Safety Guidelines
Fuel is highly flammable. Never operate the vehicle near open flames. Do not smoke while
handling fuel. Always operate the vehicle in a well ventilated area. Model car engines produce
carbon monoxide fumes.
Advertisement
Table of Contents
Related Manuals for RCMAX 55 SUPREME
Summary of Contents for RCMAX 55 SUPREME
- Page 1 RCMAX 55/65 SUPREME Installation and Operation Congratulations, and thank you for purchasing your new RCMAX engine. This is a high performance, two stroke engine which produces over five times the power of a standard largescale, RC car/buggy engine. Please be prepared for the transformation of your RC!! Drive with care while you are getting used to this.
- Page 2 Throttle/Carb/Intake A Walbro WJ71 big bore carb is fitted as standard on the RCMAX 55/65. This carb has had the stock throttle shaft drilled and a quick release fitting can be fitted here so that you can simply hook it up to your cars servo arm and adjust to suit.

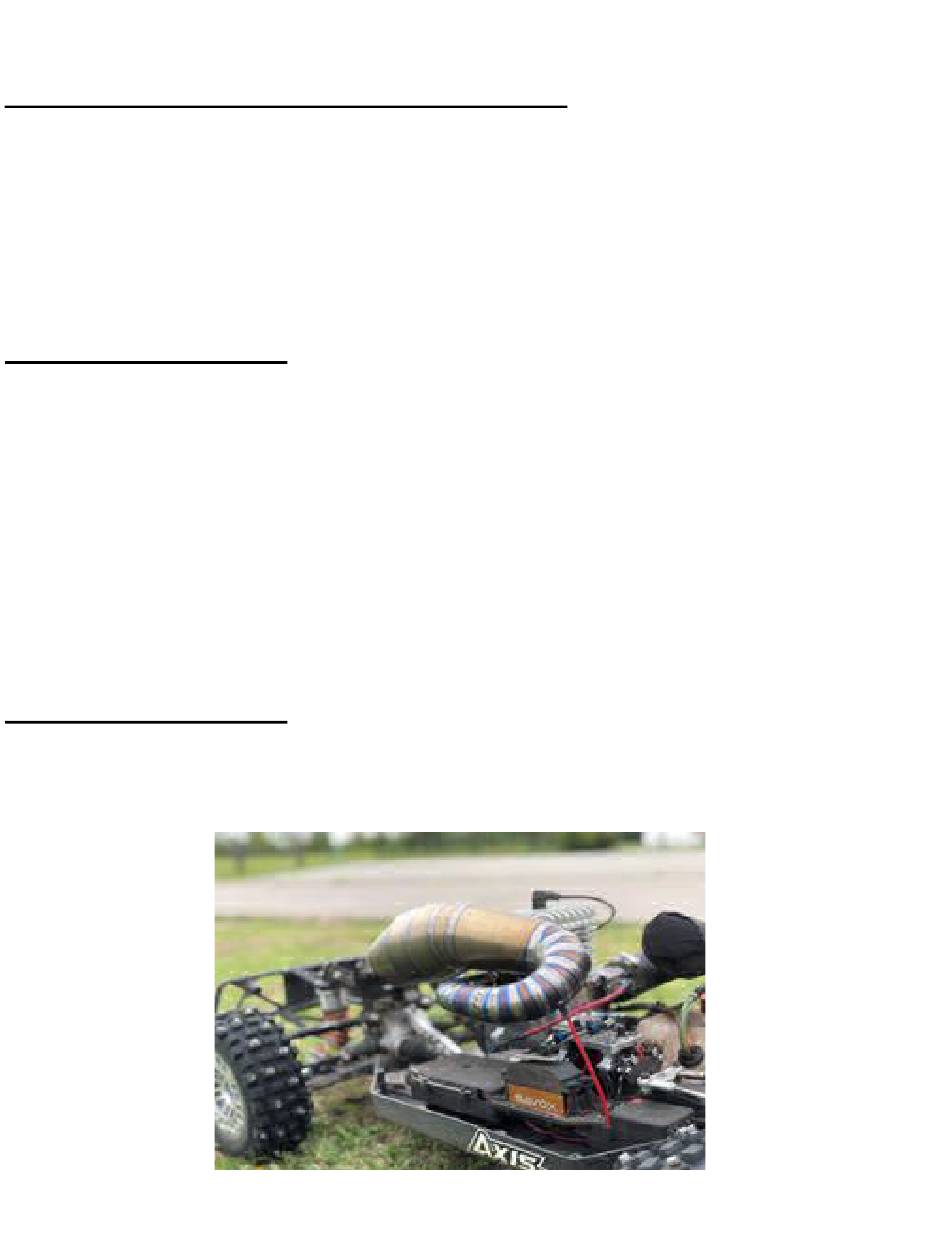

- Page 3 Some adjustment will be required to your throttle linkage to connect to the carburettor due to the size and spacing. The RCMAX exhaust mounts to the engine with a sealed joint and to the chassis via the supplied brackets and rubber support mounts. Thus it is quick and easy to release if you need access to your radio gear, etc.
- Page 4 Throttle/Carb/Intake A Rooster 990 Full Mod is fitted as standard on the RCMAX 55/65 with the option of a WJ71 also when ordering. Both carbs are supplied with throttle arms prepared to take the supplied quick release fitting, we also supply a new link rod which is bent to fit the large crankcase.
- Page 5 Engine Starting Procedure NOTE: Your Air Filter requires oiling before use - We are cautious with the fumes from the oil causing issues during shipment Decompression valve (optional) Engine stop switch Pull starter Choke lever - automatically releases when throttle is opened First Time Engine Starting.
- Page 6 Walbro WJ71 Carburettor Setting Your engine has already been checked and tested at the factory and the carb is set at base settings. Make sure you complete the run in of the engine on a rich setting before considering leaning it out for optimal performance.
- Page 7 After a massive amount of investment and research, we have now developed/refined our own sintered steel clutch. The RCMAX V3 Clutch combined with our new RCMAX Clutch springs. This clutch is now an extremely durable and reliable big bore clutch system, requiring no maintaince or regular adjustment.
- Page 8 (iii) modification of or to any part of the product, (iv) attempted service by anyone other than RCMAX or their appointed agent, or (v) products not purchased from RCMAX or their appointed agent. (vi) the product if aftermarket components, which are not specifically aproved by RCMAX are used with the product, e.g.
