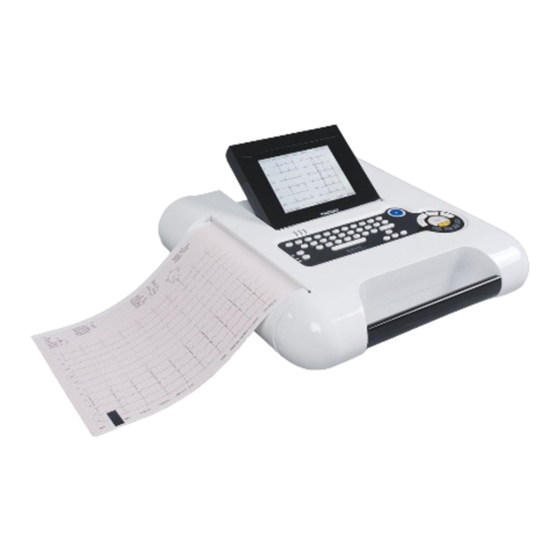

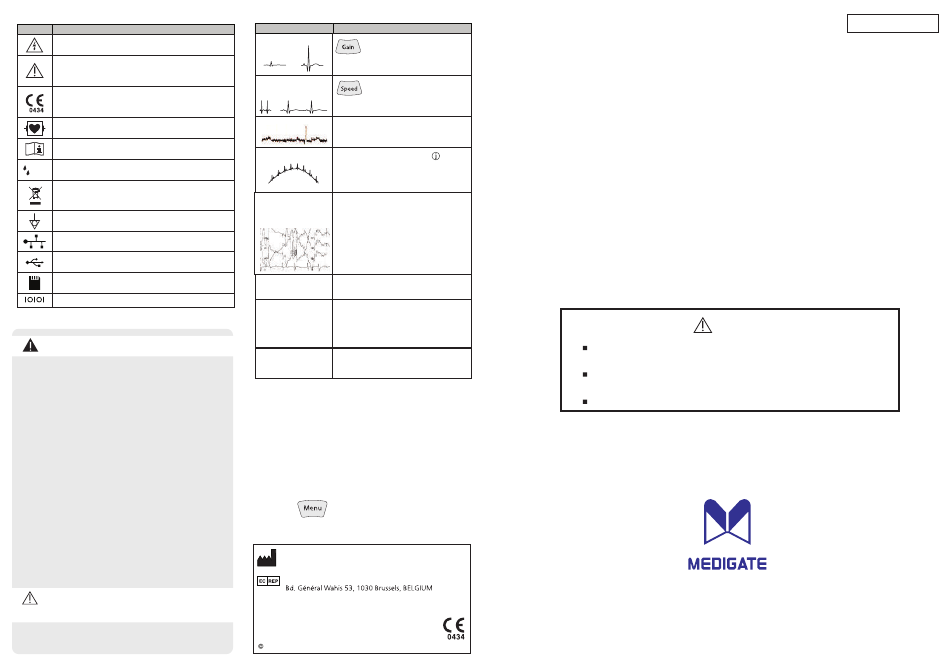

MEDIGATE MeCA812i User Manual

Symbols
Symbol Description
High Voltage Caution:
This symbol means high voltage parts included.
EU-Warning or Caution: This symbol indicates hazard.
If not avoided, the hazard can result death or serious injury,
minor personal injury or product damage.
CE Marking: CE Marking means this device is conformity
with provisions of the EU MDD(Medical device directive).
It is certified by DNV(NB No. 0434).
Classification of electrical protection symbol: This symbol
means the device is CF type(cardiac floating) protection applied.
EU-Consult instructions for Use: This symbol means read
manuals or descriptions from manufacture.
IPX Level: This symbol means waterproof level.
IPX0
(IPX0 = No waterproof)
EU-Electronics and Battery Disposal Information:
This symbol means that the product and battery should
be recycled separately from household waste.
GND symbol: This symbol means equivalent ground terminal
Network symbol: This symbol means TCP/IP terminal
USB device symbol:
This symbol means Universal Serial Bus terminal.
SD card symbol: This symbol indicates SD card slot.
Serial port symbol: This symbol means Serial port (RS-232).
Warnings and Cautions
Warning: Indicates a hazard. If not avoided,
the hazard can result death or serious injury.
- Avoid humidity, high temperature, dust in the air, salt or sulfuric
material and avoid the unventilated place or the direct sunlight.
- Avoid vibration or mechanical shock.
- Avoid fire and explosion hazard. An explosion hazard may
result from the use of flammable anesthetics, skin cleansing
agents and disinfectants.
- Dispose of the packaging material, observing the applicable
waste control regulations. Keep the packaging material out of
children's reach.
- If in doubt the integrity of the AC power source, the device
must be operated from its internal battery.
- Check the voltage rating before you connect the device to an
electrical outlet to ensure that the required voltage and frequency.
- If use multi-tap inevitably, use the one provided with earth pin
by all means.
- Unplug the AC power cord from AC outlet before the device
cleaning or disinfecting its surface.
- Do not spray, pour, or spill any liquid directly to the device for
cleaning or disinfection.
- When cleaning or disinfecting surface of the device or electrode,
fully dry and use it.
- Due to the risk of electrical shock, do not open the cover of
the equipment unless absolutely necessary and disassembly of
the machine should be done only by a maintenance worker who
has the license from MEDIGATE Inc.
Caution: Indicates a potential hazard. If not avoided,
this hazard may result in minor personal injury and/or
product/property damage.
- For your safety check the device before using.
- If put the electrodes too long time, they may cause skin problems.
Therefore, use them for measurement only
Troubleshooting
Problem Check or Possible Solutions
-Too small or too big You can adjust the Gain value
ECG wave. with the Gain button.
Recommended: 10mm/mV
You can adjust the Speed Value
-ECG waves looks too
with Speed button.
tight or too loose.
Recommended: 25mm/s
-Use stronger Low Pass filter.
-High frequency noises are
[weak 150 - 100 - 40 (Hz) strong]
added.
Note: Stronger filter may make distortion.
-Too much ECG baseline
-Enable the AFS. Refer to Screen
wandering.
-Use stronger High Pass filter.
[weak 0.05- 0.16 - 0.3 - 0.5 (Hz) strong]
Note: Stronger filter may make distortion.
-Check the connection lead and electorde.
-There is too much
-Make sure all electrodes puts right place
noise in ECG wave.
and contacts well.
-I can't recognize the
-If electrod gel gose dry it may block the contacts.
ECG signal.
-Check the AC filter setting.
-Electrical blanket or heavy energy consume
electrical device may occur heavy noise.
-Printer crumples up
-Check the printer cover if it is opened.
paper.
-Printer does not work. -Check the printer cover may open.
-Printer ejects blank -Grid side of paper must contact with
paper continously. the printer header.
-Paper comes out but
not printed.
-Error message shows -Device needs some checks. See the operator's
up after the operation manual Chapter7.
stops.
Checklist before using
□ Not physical damage on surface of device.
□ A Device was not get wet .
□ Rated power is supplied.
□ No physical damages on the patient cable.
□ No physical damages on the electrodes.
Default setting
Note: After the default setting, all custom setting value
will be lost.
1) Press the button to enter the Configuration menu.
2) Press Enter button on System>Default Setting.
MEDIGATE Inc.
42-10, Taejanggongdan-gil, Wonju-si, Gangwon-do, Korea
Tel: (+82) 33-747-3552, Fax: (+82) 33-747-3691
Obelis s.a
Tel: (+32) 2-732-5954, Fax: (+32) 2-732-6003
MeCA812i User Guide
Part No-Rev. : L05351-03
Date of Revision: 2014-02-03
Printed in Korea
2011-2014 MEDIGATE Inc. All rights reserved.
MeCA812i
User Guide
Caution
The electrocardiograph is intended to be used in a hospital and
hospital facilities environment by trained medical personnel.
For operator and patient's safety, before you use the device,
read the Operator's manual in enclosed CD.
This User Guide contains only minimum information of product.
Medical Device
