Summary of Contents for SIFSOF SIFBPM-3.7

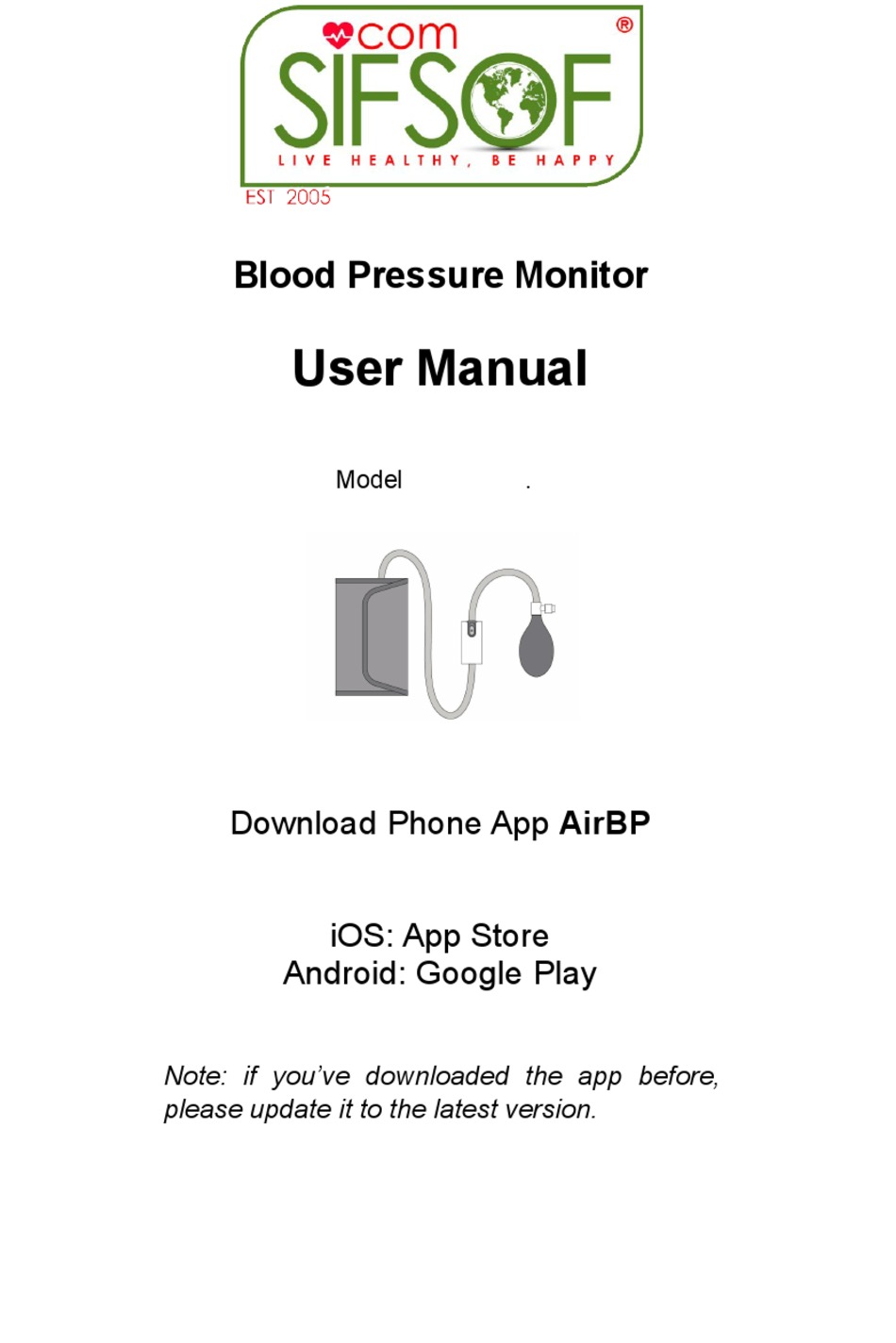

- Page 1 Blood Pressure Monitor User Manual Model SIFBPM-3.7 Download Phone App AirBP iOS: App Store Android: Google Play Note: if you’ve downloaded the app before, please update it to the latest version.
- Page 2 The Basics This manual contains the instructions necessary to operate the product safely and in accordance with its function and intended use. Observance of this manual is a prerequisite for proper product performance and correct operation and ensures patient and operator safety.
- Page 3 temporary red mark to the arm. This condition will appear especially when measurement is repeated successively. Any pain, numbness, or red marks will disappear with time. Stop using this monitor and consult your physician if you experience skin irritation or discomfort. Consult your physician before using this monitor on an ...
-
Page 4: Device Description
range (22-42cm) that result incorrect measurement results. The device is not intended for use with neonatal, pregnant, including pre-eclamptic, patients. Do not use the device in a moving vehicle (car, airplane). When choosing a third party charging adaptor, select one ... -
Page 5: Display Symbols
with readings. 1.3 Contraindications This device is contraindicated for use in ambulatory environments. This device is contraindicated for use on aircraft. 1.4 Symbols Symbol Meaning Application part type BF Manufacturer WEEE (Waste Electrical and Electronic Equipment) mark, Electronic instruments must disposed... -
Page 6: Using The Monitor
When the monitor detects an irregular rhythm two or more times during the measurement, the irregular heartbeat symbol will appear on the display along with the measurement values. An irregular heartbeat rhythm is defined as a rhythm that is 25% less or 25% more than the average rhythm detected while the monitor is measuring the systolic and diastolic blood pressure. -
Page 7: Led Indications
During charging, the LED is red. When full charged, it will power off automatically. When the battery is low the indicator will be red flash. In app, you can check the battery level. Note: The device cannot be used during charging. 3.2 LED indications Blue blink Powered on and Bluetooth is not connected... - Page 8 Wrap the cuff around the upper arm, about 1 to 2cm above the inside of the elbow, as shown. Place the cuff directly against the skin, as clothing may cause a faint pulse and result in a measurement error. Constriction of the upper arm, caused by rolling up ...
- Page 9 search the device. Choose your device “AirBP xxxx” in App. Note: Keep the distance between monitor and phone within 1.5 meter. DO NOT pair in your phone settings. The APP can be downloaded in Google Play or APP Store with the name “AirBP”, which requires a smartphone.
- Page 10 Measure Screen to start the measurement, and follow the instruction to pump up the cuff by squeezing the bulb at a speed guided in App. Stop pumping after you get the instruction, hold the bulb with no squeeze or pressing, waiting for the next instruction.
-
Page 11: Troubleshooting
below to the PR value. Note: The device turns off automatically in two minute if no working. 3.8 Review the history In App History, you can check the history list. You can select a specific ID or All. 3.8 Trouble Shooting Recommende Problem Possible Cause... - Page 12 The phone doesn’t Change to a support compatible Bluetooth 4.0 BLE phone. monitor Reset doesn’t monitor device response running press and hold button unexpected status. the button for press. Keep arm still The measurement don’t is interrupted by squeeze arm movement or bulb during unexpected...
-
Page 13: Specifications
Specifications Classifications Degree protection Type BF against electrical shock Environmental Item Operating Storage Temperature 5 to 40°C -25 to 70°C Relative humidity 10% to 95% 10% to 95% (non-condensing) 700 to 1060 700 to 1060 Barometric Degree of dust & water IP22 resistance Physical... -
Page 14: Maintenance And Cleaning
Guide measure, display APP function results, store and share results IOS 12.0, iPhone launched IOS software / hardware subsequently Android software / Android 6.0 or above, mobile Hardware phone with Bluetooth 4.0BLE Bluetooth RF Frequency range 2.402 – 2.480 GHz Durable period for Monitor Expected service life 2 years... -
Page 15: Fcc Statement
soapsuds. The cuff must not be washed! • Do not drop the instrument or treat it roughly in any way. Avoid strong vibrations. • Never open the device! Otherwise the manufacturer calibration becomes invalid! 6.2 Cleaning • Clean the device with a soft, dry cloth with 70% alcohol. - Page 16 residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
- Page 17 Plot of DBP difference between the paired blood pressure determinations against the reference diastolic measurement Plot of SBP difference between the paired blood pressure determinations against the reference systolic measurement The Bland-Altman Plots originated form clinical test, which data was gathered 16 / 17...
-
Page 18: Electromagnetic Compatibility
The clinical test applies for the SIFBPM-3.7 device with one cuff size, comparing with Mercury sphygmomanometer. The result met the criteria specified in ISO 81060-2:2013; In addition, there were no reported adverse effects during these investigations. - Page 19 EST. 2005 katy!f.com Los Angeles, CA KatySCOTT info@sifsof.com Sales Manager CALLUSNOW! VISITWEBSITE ! +1-323-988-5889 www.sifsof .corn...
