Summary of Contents for BADBOY Greedy Pig GP1103

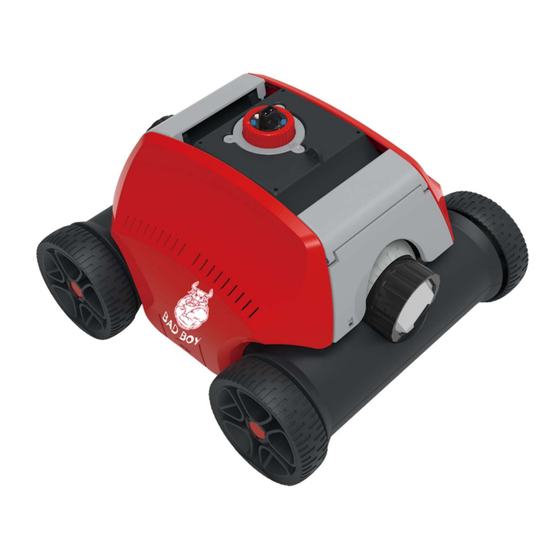

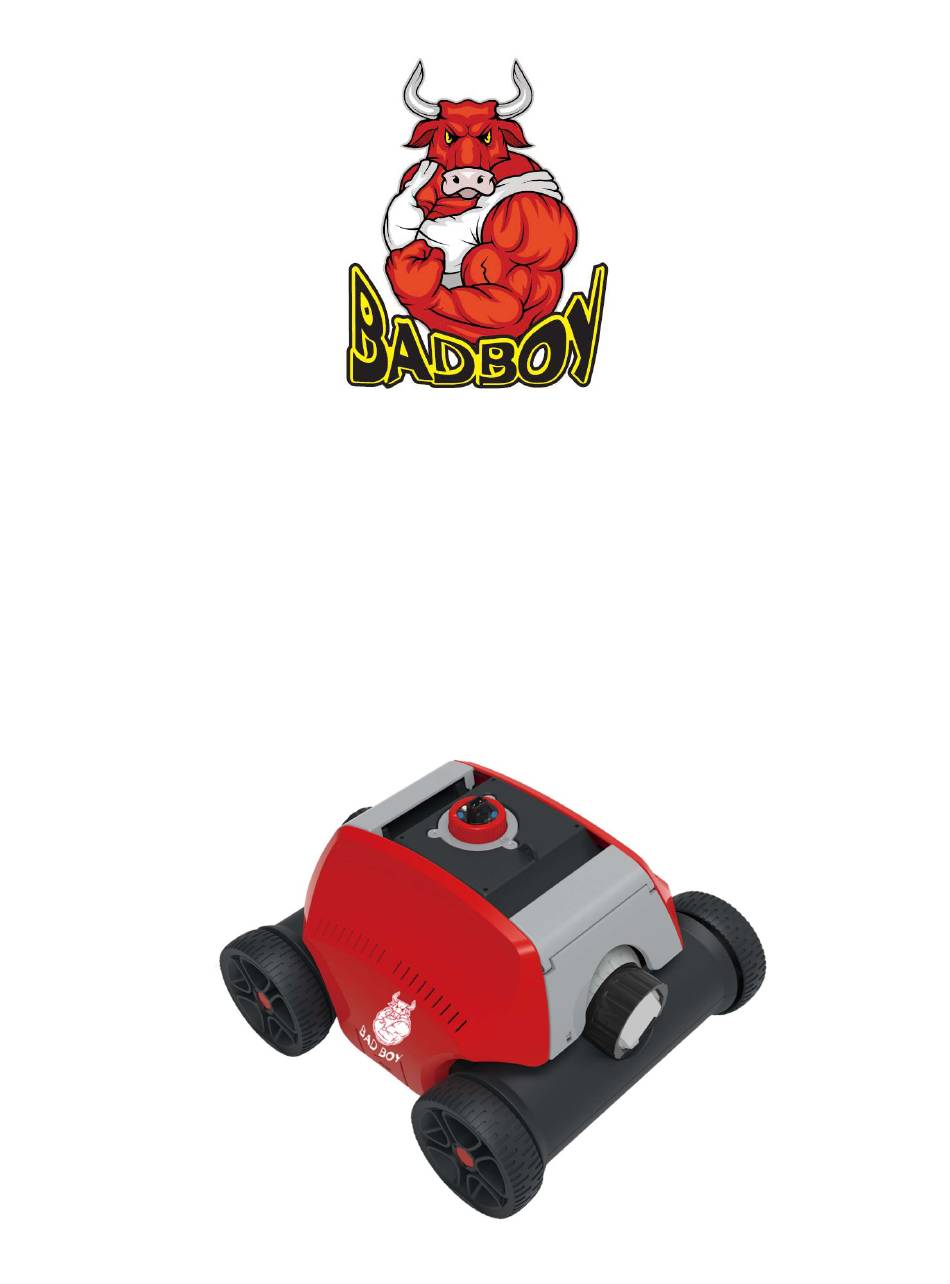

- Page 1 ROBOTIC POOL FLOOR CLEANER BATTERY DRIVEN Greedy Pig GP1103...
-
Page 2: Table Of Contents
USER MANUAL & WARRANTY Thank you for purchasing Pool Monster Pool Cleaner. If you have any questions or issues, please contact your local dealer for customer service. Contents i. Introduction ........................4 Ii. Appearance Characteristics & Structure ............... 4 Iii. Specifications ........................ 4 Iv. - Page 3 Subject to update by manufacturer without prior notice Important Precautions 1. Please read the manual carefully and use the cleaner according to the manual. We cannot be held liable for any loss or injury caused by improper use. 2. Use the accessories recommended or sold by the manufacturer only. 3.
-
Page 4: Introduction
INTRODUCTION The Greedy Pig pool cleaner GP1103 is a new type of rechargeable automatic cleaner that will self-park when the battery runs low. Please read this manual carefully before use. APPEARANCE CHARACTERISTICS & STRUCTURE Swing plate Top cover Filter tray Floating handle Chassis Brush... -
Page 5: Operation Instruction
9. Rated output voltage of adapter: 12.6V 10. Charging time: 5-6h 11. Battery capacity: 6600mAh 12. Max. Cleaning surface: 100m² 13. Filter capacity: appr. 10m³/h 14. Filter capability: 180μm 15. Climbing slope: 15° 16. Pool water temperature: 10°-35°C 17. Moving speed: appr. 16m/min 18. - Page 6 b. Install the brush before use. c. Please ensure that the top cover of the cleaner is tightly clipped onto the chassis. d. Power off the cleaner after use. e. Do not touch against the wall to avoid scratching the wall or damaging the cleaner when putting into or lifting out of the pool.
- Page 7 * Clean and dry the charging port before charging. Turn the switch to ON after putting it in the water, the indicator light will be a steady blue. The cleaner begins to work about 15 seconds later and the blue light flashes. Power-off operation: switch off the knob and always clean the filter tray after use.
- Page 8 b. Three nozzle settings are recommended: Setting 1: default setting 0°—30°, for most of pools. Nozzle angle Running Path Setting 2: 0°—20° Nozzle angle Running Path...
- Page 9 Setting 3: 0°—40°, when setting 1 does not manage a full coverage of the pool. Nozzle angle Running Path Setting 4: 20°—20°, for round pools. Nozzle angle Running Path...
- Page 10 Note: These are the recommended settings. Different settings may work better for your pool. Test run several settings to find what works best for you. 4. Cleaning the filter tray a. Open the cleaner by the marked clips b. Take off the filter tray c.
-
Page 11: Trouble Shooting
e. Re-clip on to assemble V. TROUBLE SHOOTING Symptom Possible reason Solution The cleaner does not work and the Low battery Charge the battery light indicator is red The cleaner does not work and the Internal fault Contact after-sales service red indicator light slowly flashes. -
Page 12: Warranty
Adapter XSG1261800 In carton User manual & certificate In plastic bag Brush In plastic bag Tow rope In plastic bag Floating handle In plastic bag VII. WARRANTY In the unlikely event you experience any issues with your pool cleaner within 2 years of the date of purchase, please contact the dealer from which you purchased the cleaner who will organise repair or replacement.
