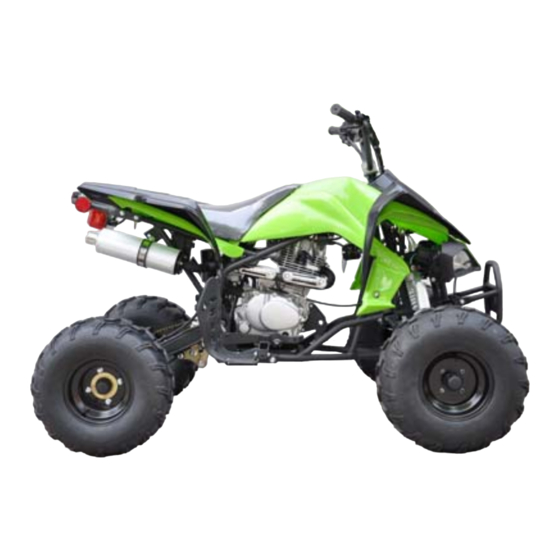

Summary of Contents for Motoworks MOT-150ATV-RA-RED
- Page 2 Check list before starting the bike Make sure the tyres are fully pumped up Make sure all the bolts are tighten Make sure there is sufficient engine oil Check above steps again after first riding Fresh engine oil will keep your engine parts protected and lubricated, Only use unleaded 91 petrol ...
- Page 3 User Guide for 110cc/125cc/150cc/250cc Quad Bike Start‐up: ONLY use 91 unleaded petrol 1. Fuel Tap is at “ON” position (Vertical). 2. Kill Switch is at “OFF” position.(Bottom button pressed) 3. ( Cold engine start only) Choke Lever is at “ON” position (To Left) 4. Gear is in “Neutral” position (Only if applicable) 5. Turn the key to “ON” position 6. Hold the brake and press the start button 7. After starting 30second, turn Choke Lever OFF (To Right) Make sure Choke lever is OFF when riding. 8. Always turn key to “OFF” after running 9. Pump tyre up to around 18 psi. Storage We strongly recommend empty the carburetor every time finish riding. For long time storage empty the fuel tank as well. These are steps to empty the carburetor: 1. Start‐up the engine 2. Turn Fuel Tap “OFF” (Horizontal) 3. Wait until engine stopped itself. 4. Turn the key to “OFF” position. 5. Disconnect battery for long term storage ...
- Page 4 SAFETY INSTRUCTIONS 1. All the dirt or quad bike for off road use only. 2. Before you attempt to ride the bike, please read and understand the user manual instructions. You should follow the safety procedures and warnings to reduce risks and accidents. By you, the user, deciding to operate this scooter, you are accepting all the terms regulations and safety issues mentioned in the manual.
- Page 5 Warning: Please read below information before you use your new dirt or quad bike. A lot of people have a hard time starting and running the Chinese ATV’s when new and also when cold. Most of these come with a gel Pac in the Carbie float bowl for shipping so it does not ruin the float during shipping. It is supposed to dissolve when fuel mixes with it. Many make the mistake of driving the ATV once started. This is a mistake. You must let it idle for about 3 mins for the gel to dissolve. If you do not do this you will risk the chance of clogging the jets and the initial adjustments will not work and it will not run right until all the gel is gone. Most of the time these will start with the movement of the choke then you can lightly feather the throttle to keep it running. If you can reach the idle screw you can turn it up till you don’t have to feather the throttle. After about 30 min you can make the final adjustments. CHANGE THE OIL BEFORE YOU RIDE!!! These come with cheap shipping oil and MUST be changed or engine damage WILL occur. The ...
- Page 6 1‐ Unscrew and pull the top of the Carbie off with the cable and there will be a slide with the needle in the centre. 2‐ Disconnect the cable through a small slot in the side of the slide. 3‐ Now you can take the needle out from the slide. 4‐ The needle will have a very small e clip in a slot on the needle. The needle will have 5 slots. Lowering the clip is richer the and raising the clip will lean it out. 5‐ Put the clip on the lowest setting for cold weather. DO NOT DROP THE CLIP! They are very small and hard to find. 6‐ Reverse the process with installing the needle back into the slide, installing the cable, slide the slide back into the Carbie and screw the cap tight. 7‐ Now make any adjustments as stated above in the Carbie tuning. 8‐ Once the weather warms up you may need to lower the needle for the hotter temps or it will run too rich. These steps will work on 99% of these ATV’s. They are very hard to get running and people get upset when they turn the key and it does not run. Don’t forget these are not set up at a dealer like the name brands so the most basic adjustments are done from the ...
-
Page 7: Assembly Instruction
ASSEMBLY INSTRUCTION Models w/ rack(s) Mount the handle bar (rear view mirrors) Mount the front suspensions Mount the turn rods / front drum brakes / front wheels... - Page 8 mount the rear wheels Mount the dust covers...
- Page 9 Mount the front bumper Mount the rear frame part Mount the rear rack...
- Page 10 Mount the bracket Mount the turn lights (front & rear) and plug in Connect the battery wire 12th key switch...
- Page 11 Models w/o racks mount the handle bar mount the front suspensions mount the turn rods...
- Page 12 mount the front drum brakes & front wheels mount the rear wheel...
- Page 13 Mount the dust covers mount the front bumper mount the rear frame part...
- Page 14 mount the bracket plug in the rear brake light connect the battery wire key switch...
- Page 15 Remote Controller This clip is specially designed for Remote Controller. The color wire on the one end of clip is for engine STOP. When it is pulled out, all STOP functions of key switch, functional handle bar, and emergency kill switch will be OFF. The Customers have to connect the other end of the clip with the Remote Controller, and then all STOP functions will be ON.
-
Page 16: Drum Brakes
50cc/ 110CC Air-cooled SHINERAY 4 Stroke, Single Engine Cylinder Starting Method Electric Ignition Mode Fuel Tank Capacity 2.3L Fuel Straight Unleaded Petrol Transmission Automatic Drive System Chain Throttle Control Thumb throttle (screw restrictable to limit max throttle) Front : Dual A arm spring shocks Suspension Rear : Large rear shock Maximum Speed... - Page 17 110cc/ 125cc Air-cooled Engine 4 Stroke, Single Cylinder Starting Method Electric Ignition Mode Fuel Tank Capacity Fuel Straight Unleaded Petrol Semi Auto, Transmission 3 Forward and 1 Reverse Gear with Neutral / 1 Forward and 1 Reverse Gear with Neutral Drive System Chain Throttle Control...
-
Page 18: Special Features
**PLEASE NOTE** ATV engine needs to be run-in initially To run-in the engine, please do not over-rev the engine for the first 3 tanks of petrol SPECIAL FEATURES Engine 150CC, air cooled, 4 Stroke engine Starting Method Electric Start - 150CC, air cooled, 4 Stroke engine Ignition Mode - TRIPLE suspension system Fuel Tank... - Page 19 **PLEASE NOTE** ATV engine needs to be run-in initially To run-in the engine, please do not over-rev the engine for the first 3 tanks of petrol SPECIAL FEATURES 250CC Air-cooled SHINERAY Engine 4 Stroke, Single Cylinder - 250CC SHINERAY 4 Stroke engine (4 Starting Method Electric Start GEARS)
