Summary of Contents for Every Season Products SnoCobra Ski System

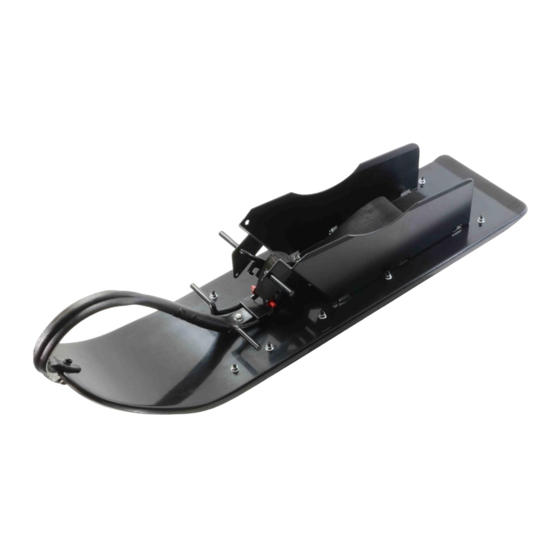

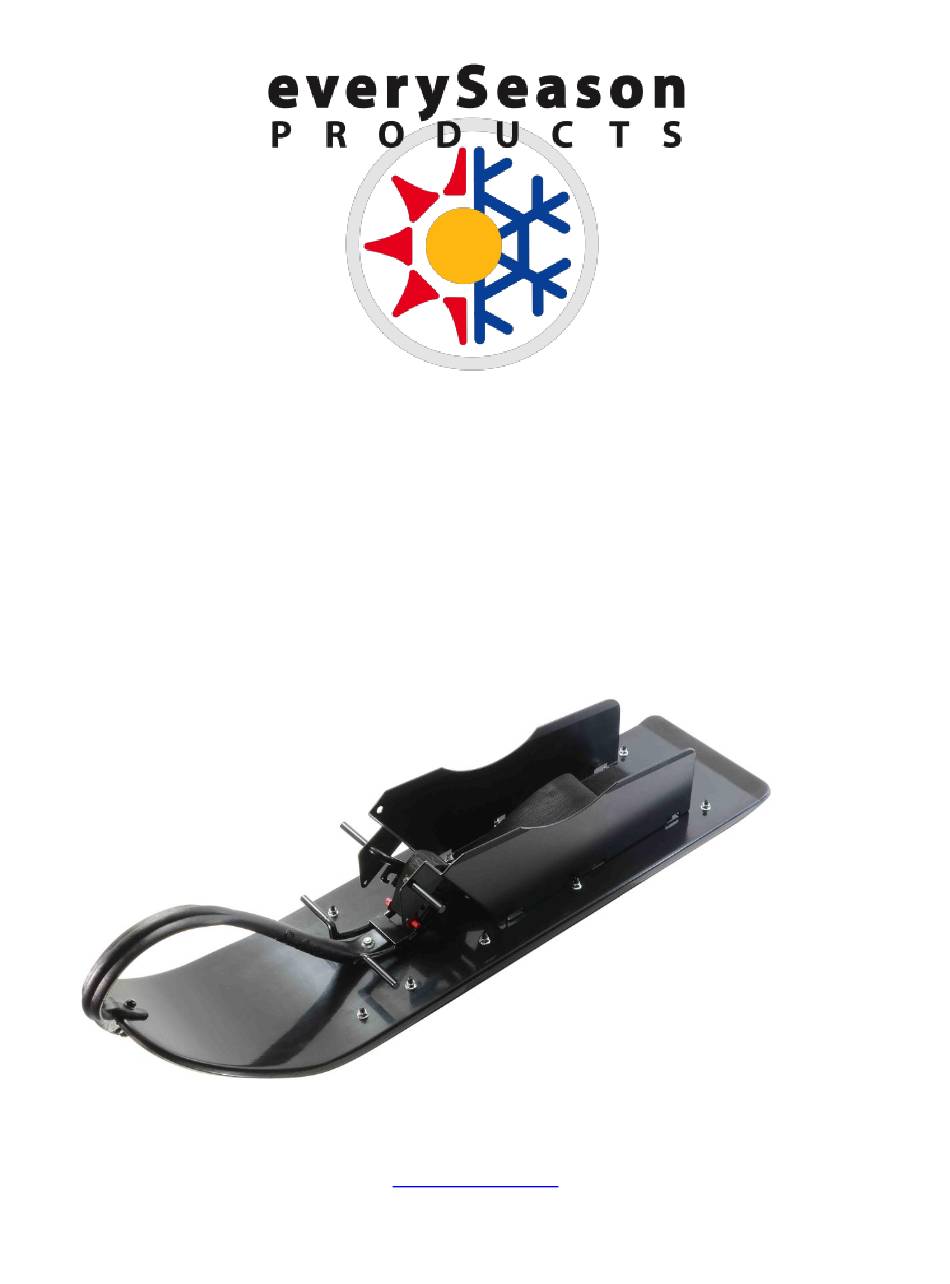

- Page 1 SnoCobra Ski System User’s Manual Every Season Products 1-866-377-0045 PO Box 236 697 Kelly Ave Dresser, WI 54009 www.snocobra.com...
-
Page 2: Precautionary Warnings
With this manual, an additional operator safety label has been provided to attach to a vehicle equipped with the SnoCobra ski system. Attach the provided label to inform drivers of the SnoCobra equipped vehicle about safety instructions. Please follow the directions below and place the label on your vehicle in full view of the driver. -
Page 3: Table Of Contents
Note: If for some reason any safety label is lost or removed, please contact Every Season Products (1-866-377-0045) or your local Dealer and we will provide you with new labels for free. Table of Contents Every Season Products Precautionary Warnings ..........................ii Welcome ............................... 1 General Information ............................. 2 Warnings ............................... - Page 4 Torque Specifications ..........................21 Warranty SnoCobra............................. 22 Limited Warranty ..........................22 Customer Remedies ..........................22 NO OTHER WARRANTIES........................22 LIMITAATION OF LIABILITY ........................22 NO LIABILITY FOR CONSEQUENTIAL DAMAGES .................. 22 Every Season Products ........................22 Technical Support ............................23...
-
Page 5: Welcome
This Ski System is built for high performance on snow. To keep the skis in great condition only use them on snow or ice. SnoCobra Skis are not designed to be operated on anything other than snow or ice. Operating the SnoCobra Ski System on any other type of terrain besides snow or ice will void the manufacturer’s warranty. -
Page 6: General Information
All figures, information or photos presented in this document are up to date at the time of publication. Every Season Products reserves the right to change this information without notice. This document is an integral part of the SnoCobra Ski System. Pass this guide along to any new System owner. -
Page 7: Warnings
Check for properly installed and tightened fasteners (bolts, washers and nuts) when attaching SnoCobra ski system, and periodically during use. Do not leave any SnoCobra ski system components on the vehicle when it has been reconfigured to again be used with tires. ... -
Page 8: Operation (Ski)
Do not operate the SnoCobra ski system with damaged parts. Keep hands and feet away from the SnoCobra ski system until (1) the vehicle is stopped, (2) the parking brake is engaged and (3) the vehicle’s engine is turned off. - Page 9 The driving characteristics of your ATV will change with the installation of the SnoCobra ski system. It is important to take the time to become familiar with the SnoCobra ski system and how it affects use of the ATV.
-
Page 10: Towing
The SnoCobra ski system is not designed to take excessive abuse. For example, the system is not designed to withstand the forces associated with hitting obstacles such as rocks, stumps, etc. without damage being caused to the ski system. It is not advisable to attempt to drive over any such obstacle, or over a steep ridge that could lodge itself between the front skis and the rear track systems and immobilize the vehicle. -
Page 11: Illustrated Parts Breakdown
Illustrated Parts Breakdown 1. Ski 2. Left Hand Side Saddle 3. Right Hand Side Saddle 4. Tire Strap 5. Front Cross Plate 6. Ski Handle 7. Locking Collars 8. Cam Lever 9. Wear Pads 10. Wear Bars 11. Rear Cross Plate 12. -
Page 12: Ski Adjustment Instructions
Section A Saddle Adjustment Instructions Note: Every tire is different depending on the diameter, width, wear, tread pattern, and manufacturer. The Saddles are made to adjust from 6 ½” – 11 ½” width tire size. 1. Determine Tire Width 2. Loosen: a. - Page 13 3. Adjust Saddle: a. Adjust Saddle to be ½” wider than tire width. (Value X). b. Verify correct saddle width on front of saddle. (Value X). c. Verify same saddle width on rear of saddle. (Value X). d. Verify saddle is centered on ski. Outside of LHS and RHS should be equal distance from edges of the ski.
- Page 14 5. Tighten Front Cross Plate mounting nuts: a. Adjust the front cross plate to be in the center of the saddle brackets. (Value X) b. Slide the (4) cross plate bolts to the outside of the slots in the cross plate. c.
- Page 15 8. Verify that: a. Saddles are proper width (Value X) and centered on the ski (Value Y). b. Saddle mounting nuts are torqued to 80 in. lbs. c. Cross plate nuts are torqued to 120 in. lbs. d. Set screw on cam lever collars are tightened.
-
Page 16: Section B) Tire Strap Adjustment Instructions
Tire Strap Adjustment Instructions The SnoCobra Ski System is a universal strapping fit system that can be adjusted to fit tire sizes ranging from 20” – 28” in diameter. Other strap sizes are available upon request. Because of the adjustability, great care must be taken when adjusting the system to fit your machine. -
Page 17: Installation Instructions
Installation Instructions Read ALL Instructions before use. a. Verify SnoCobra Ski system has been properly assembled as shown in Section A. b. Verify SnoCobra Ski system settings are adjusted to proper tire size section B. c. For components identification, see section A. - Page 18 4. Lift the cam lever up and place the Cam Pin in the top Cam Pin seat. Adjust the strap (Adjustment Buckle towards cam pin for larger tire, away for smaller) so that the cam lever is parallel with the ground when the Cam Pin is in the top Cam Pin Seat. 5.
-
Page 19: Removal
8. Removal complete. Warning: Do not put the vehicle into 4WD after the SnoCobra Ski System has been removed. The front wheels turn at a different speed than the rear tracks. This may cause damage to the vehicle and personal injury. -
Page 20: Operation
Never drive into or hit trail obstacles at a high rate of speed. This could result in serious injury or damage to the SnoCobra ski system or vehicle. Keep alert, look ahead and read the trail as you ride. Watch out for bumps, ruts, rocks, logs and other obstacles on the trail. Watch out for those objects and other obstacles that may be hidden under the snow or ice. -
Page 21: Snow And Ice
Break in Period Each time after the SnoCobra ski system is installed, a break in period of approximately (1 mile) must be given for the strapping system and components to “settle in”. Take notice and check your ski system after driving this approximate distance. Adjust or tighten the strapping to the recommend settings (See page 11). -
Page 22: Operating In Reverse
SnoCobra ski system and vehicle can occur. Climbing, turning and descending hills Your front brakes will not work with the SnoCobra ski system attached. Only your rear brakes will supply braking power to the machine. Use caution and avoid climbing or descending steep hills. -
Page 23: Maintenance
Maintenance Maintenance Schedule WARNING: Failure to follow these maintenance instructions could result in serious injury and damage to the SnoCobra ski system. Strapping System The strapping system is susceptible to wearing. If any part of the strapping system becomes torn, cut, frayed, or damaged, it MUST be replaced. -
Page 24: Storage
For a complete list of replacement parts, visit your local SnoCobra dealer or call Every Season Products at (1-866-377-0045). Storage The SnoCobra Ski System should be stored in a cool, dry area out of direct sunlight. Ultraviolet rays from sunlight can cause the strapping system to wear and composite ski to fade. ... -
Page 25: Washing The Skis
Note: If for some reason any safety label is lost or removed, you can order replacement labels free of charge from Every Season Products. Contact your local SnoCobra Dealer or Every Season Products (1-866-377-0045). -
Page 26: Warranty Snocobra
(12) months from the date of purchase. This limited warranty is void if Every Season Products LLC determines that failure has resulted from accident, abuse, misuse, neglect or normal wear and does not cover products that have not been maintained, been properly installed, or modified without Every Season Products LLC’s approval, or are... - Page 27 You may return any unused and unwanted item(s) within 15 calendar days from purchase for an exchange or a refund. Call Every Season Products Customer Support at (866) 377-0045 ex. 2 and we will provide you with a shipping label to return the item(s). Customer pays for return shipping charges. All items shipped back must be in original packaging.
-
Page 28: Technical Support
Technical Support Every Season Products PO Box 236 Dresser, WI 54009 Phone: 1-866-377-0045 Fax: 1-866-377-0045 www.snocobra.com...
