Assurance Engineering Emergency Lighting Si-36 Instruction Manual

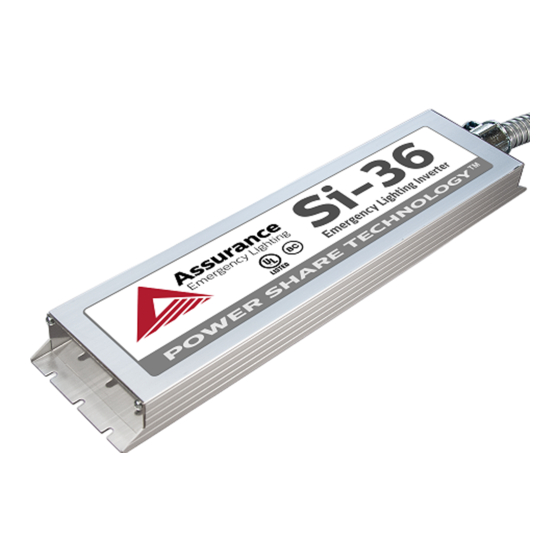

Si-36 Inverter
INSTRUCTION MANUAL
UNIVERSAL MINI INVERTER
PURE SINUSOIDAL AC OUTPUT
OUTPUT VOLTAGE AUTO SETTING EQUAL TO INPUT VOLTAGE
Power Share Technology FOR HIGH WATTAGE CONNECTED LOADS

IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To prevent electric shock, switch off the mains power supply until installation is complete and AC
input power is supplied to this product.
2. This product requires an unswitched AC power supply of 120-277V, 50/60Hz.
3. Make sure all connections are in accordance with the National Electrical code and any local
regulations.
4. To reduce the risk of electrical shock, disconnect both normal power, emergency power supplies
and unit connector of this product before servicing.
5. For emergency operation of LED, incandescent, fluorescent fixtures and screw-base lamps.
6. Use this product in 0°C minimum, 55°C maximum ambient temperatures (Ta). To ensure the
emergency operating time over 90 minutes, the output emergency power of Si-36 should be









Max. 36W with auto adjust for 0-10V dimming installations and operating temperatures between
10°C≤ Ta ≤55°C. The Max. load for non dimmed loads must be limited to 36W at operating
temperatures range of 10°C≤ Ta ≤ 55°C and 27W between 0°C≤ Ta ≤ 55°C. Contact Factory for
details regarding 2 hour run time applications.
7. This product is suitable for use in dry or damp locations. Do not use outdoors. Do not mount
it near gas, heaters, air outlets or other hazardous locations.
8. Do not attempt to service the batteries. A sealed, non-maintenance battery is used that is not
field replaceable. Contact the manufacturer for information or service.
9. The use of accessory equipment not recommended by the manufacturer may cause an unsafe
condition and void warranty.
10. Do not use this product for other than intended use.
11. Installation and service should be performed by qualified service personnel.
12. This product should be mounted in locations and at heights where it will not readily be subjected
to tampering by unauthorized personnel.
THIS PRODUCT CONTAINS A RECHARGEABLE LI-ION BATTERY.
THE BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY.
Li-ion
Assurance Emergency Lighting, a division of Assurance Engineering LLC, 357 Cumberland Street Memphis, TN 38112 1-877-774-4775 AssuranceLighting.com
SAVE THIS INSTRUCTIONS
Assurance
Emergency Lighting
a d i v i s i o n o f A s s u r a n c e E n g i n e e r i n g L L C
E506473
10.2020
